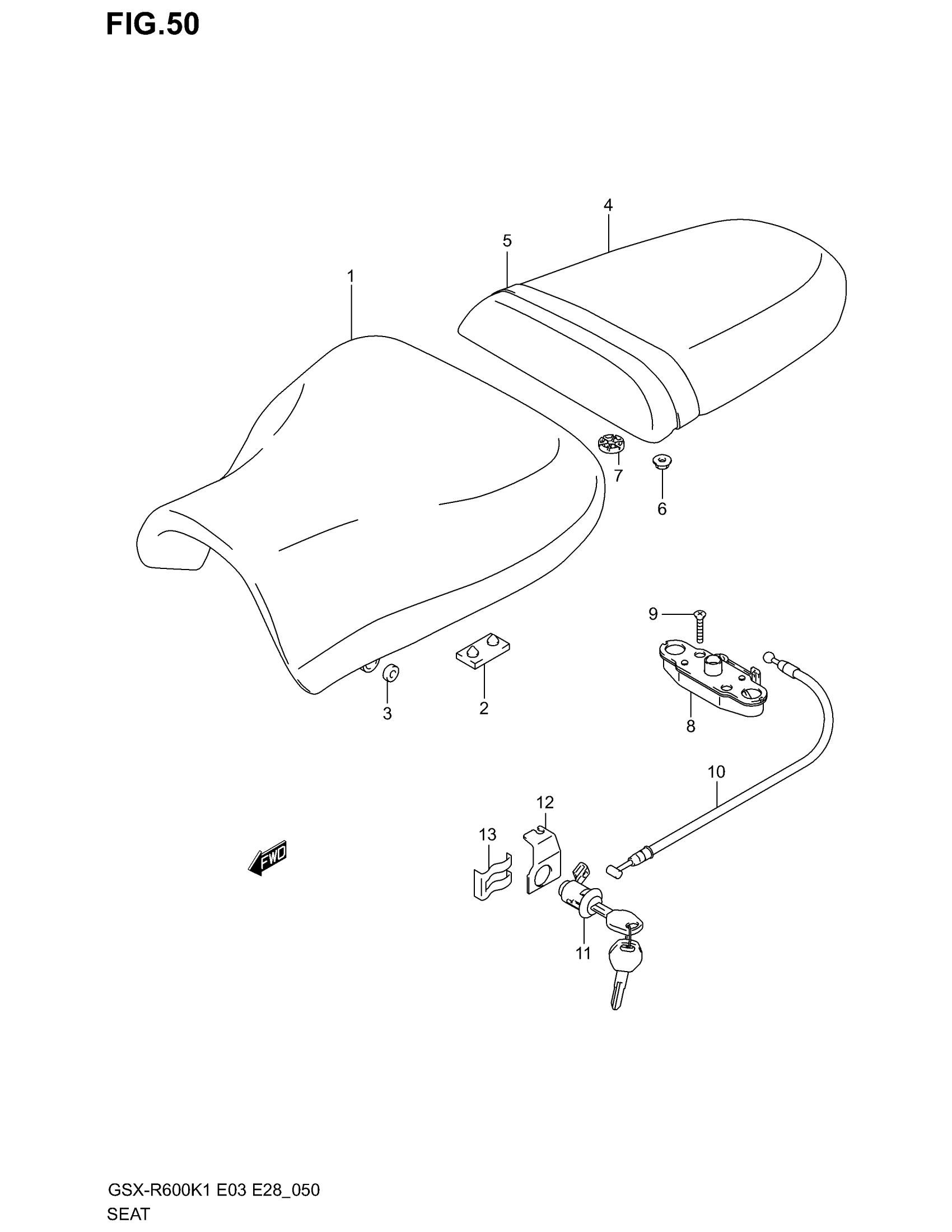

Suzuki GSX-R600 (2003) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-35F00-R42.

45100-35F01-R42

$238.95

2

CUSHION

45149-12C00

$6.63

3

SPACER (6.5X10.5X6)

45112-33E00

$4.37

4

SEAT ASSY,PILLI | MODEL K1 This part replaces 45300-35F00-R42.

45300-35F21-R42

Unavailable

4

SEAT ASSY,PILLI | MODEL K2/K3; Includes Item(s) 5 - 7 This part replaces 45300-35F20-R42.

45300-35F21-R42

Unavailable

5

BAND ASSY, SEAT (BLACK)

45180-35F00-R42

Unavailable

6

NUT This part replaces 08316-10063.

08316-1006B

$2.50

7

CUSHION

45213-31300

$2.81

8

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

9

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

10

CABLE, SEAT LOCK

45280-21F00

$27.20

11

LOCK ASSY, SEAT

95700-14810

$107.30

12

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

13

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20
