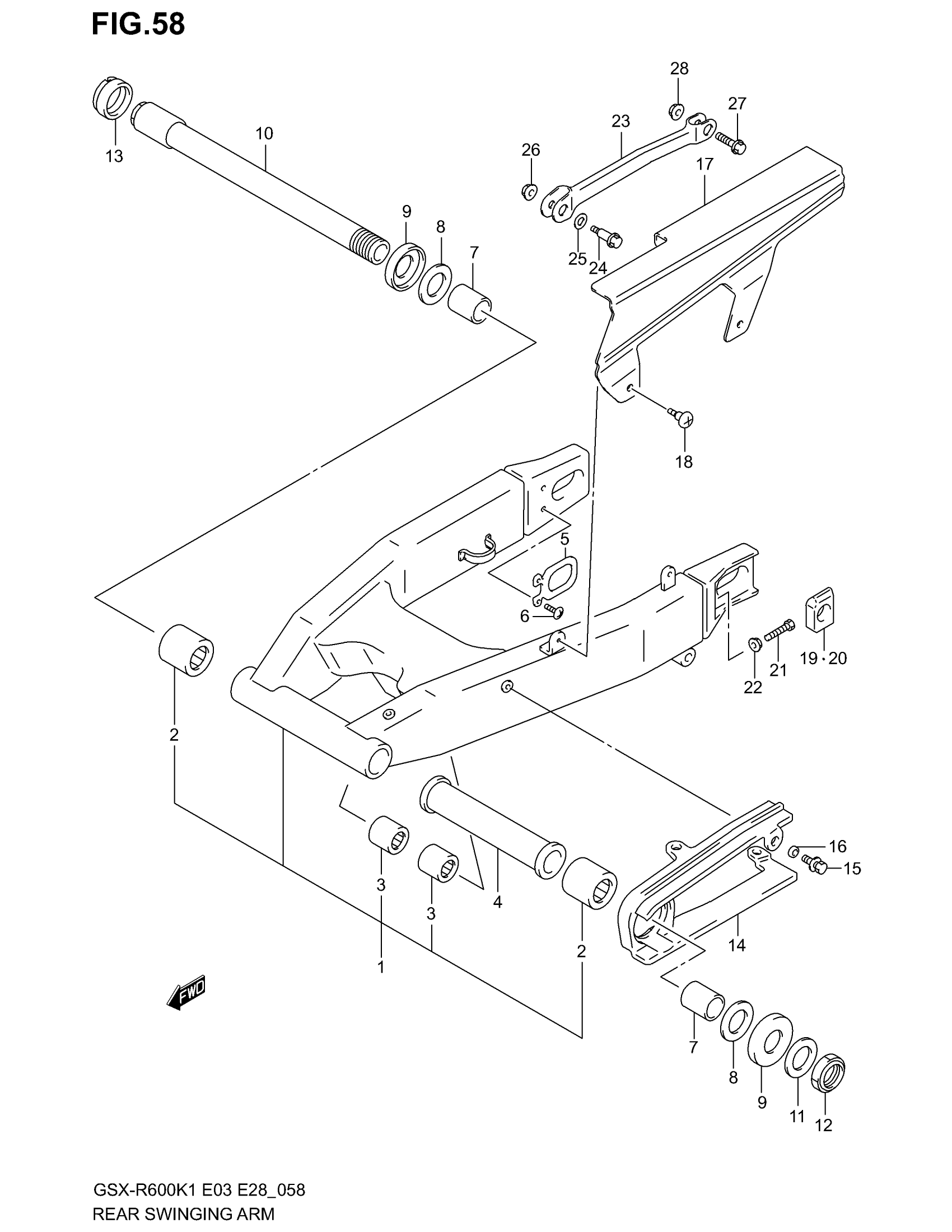

Suzuki GSX-R600 (2003) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL K1

61000-39F00

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL K2/K3; Includes Item(s) 2 - 4

61000-39F10

Unavailable

2

BEARING, PIVOT (30X47X2)

09263-30040

$38.65

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$56.48

5

PLATE, BRACKET

61124-33E00

$6.85

6

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

7

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$13.12

8

WASHER, THRUST

08211-25481

$5.64

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

10

SHAFT, PIVOT

61211-33E00

Unavailable

11

WASHER

09160-25070

$4.77

12

NUT This part replaces 09159-25001.

09159-25003

$31.85

13

NUT, PIVOT

61214-40C31

$56.90

14

BUFFER,CHAIN TO This part replaces 61273-35F00.

61273-35F01

$45.77

15

SCREW

09116-06152

$2.36

16

SPACER (6.5X9X5)

09180-06306

$2.03

17

CASE, CHAIN

61310-34E00

$94.72

18

SCREW (6X16)

09139-06083

$2.26

19

ADJUSTER, CHAIN, R | MODEL K1 This part replaces 61445-35F00.

61445-40F00

$47.20

19

ADJUSTER, CHAIN RH | MODEL K2/K3

61445-40F00

$47.20

20

ADJUSTER, CHAIN, L | MODEL K1 This part replaces 61446-35F00.

61446-40F00

$47.20

20

ADJUSTER, CHAIN LH | MODEL K2/K3

61446-40F00

$47.20

21

BOLT (8X50)

09100-08287

$3.10

22

NUT This part replaces 08316-10083.

08316-1008B

$2.66

23

TORQUE LINK, REAR

64310-35F00

Unavailable

24

BOLT, FRONT (8X44) | MODEL K1

09111-08085

$6.47

24

BOLT, FRONT (8X44) | MODEL K2

09111-08093

$6.22

25

WASHER | MODEL K1

09160-12011

$1.54

26

NUT

08319-31087

$2.32

27

BOLT, REAR (10X37)

09103-10019

$2.63

28

NUT

08319-31107

$2.73
