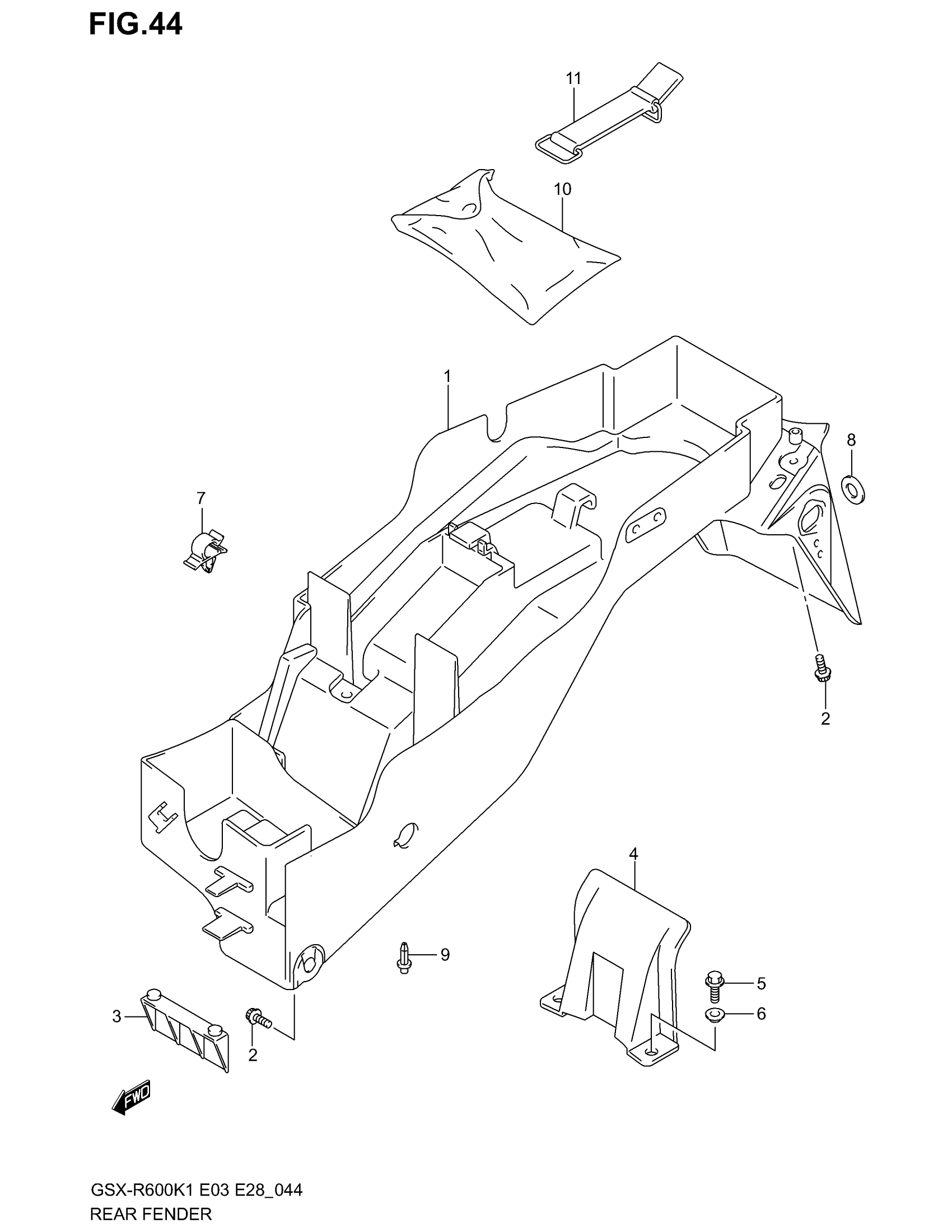

Suzuki GSX-R600 (2003) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR | MODEL K1

63111-35F40

Unavailable

1

FENDER, REAR | MODEL K2/K3

63111-35FB0

Unavailable

2

BOLT (6X18) | MODEL K1 This part replaces 63161-35F00.

09111-06081

$4.09

2

BOLT | MODEL K2/K3

09111-06081

$4.09

3

MUD GUARD, FRONT | MODEL K1

63411-35F00

Unavailable

4

MUD GUARD, LOWER

63421-39F00

Unavailable

5

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

6

WASHER

09169-06026

$2.20

7

CLAMP This part replaces 09403-05313.

18214-75F00

Unavailable

8

WASHER (6.5X18X1.0)

09160-06028

$1.49

9

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

10

TOOL ASSY This part replaces 09800-21039.

09800-21089

$69.16

11

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

$8.33
