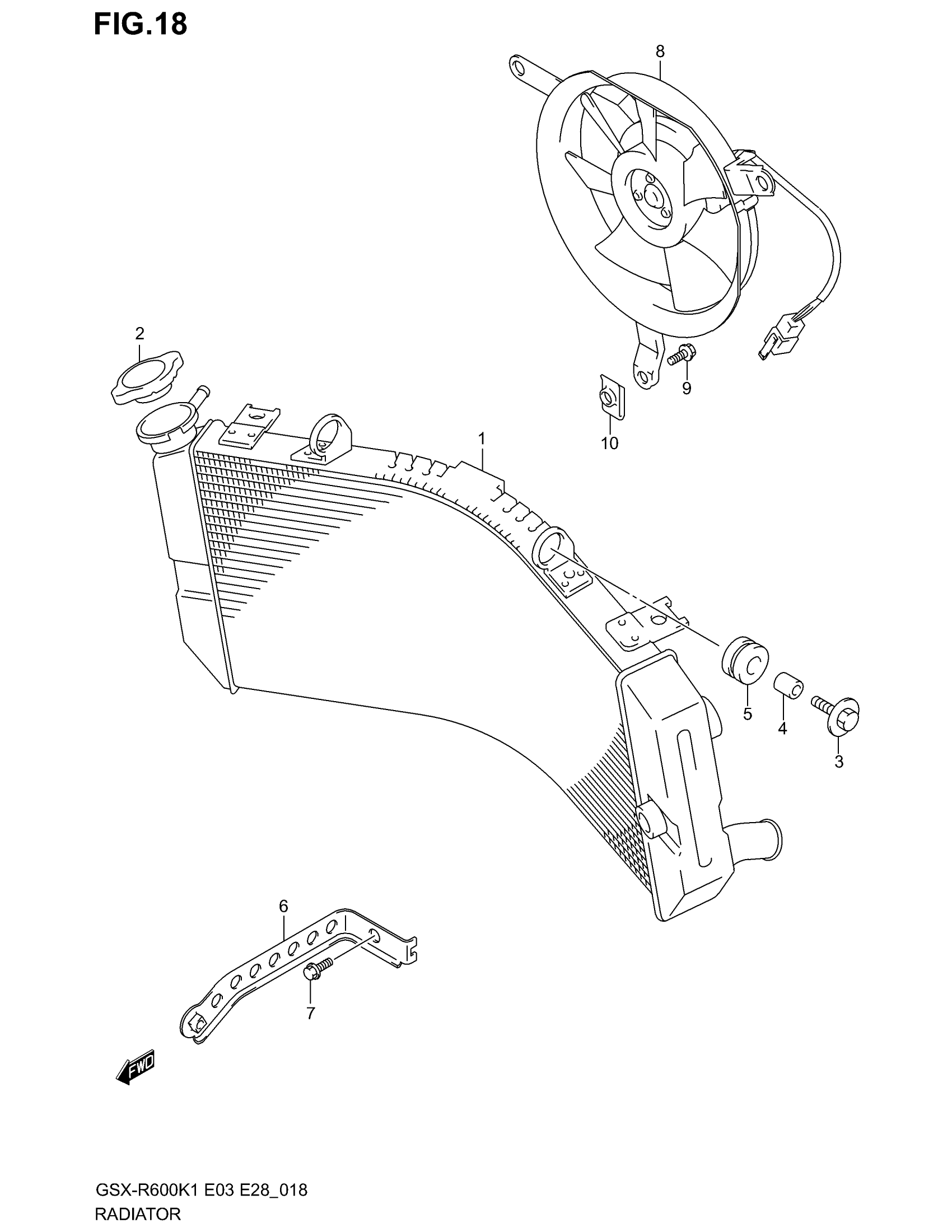

Suzuki GSX-R600 (2003) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER | MODEL K1 This part replaces 17710-35F01.

17710-35F10

Unavailable

1

RADIATOR ASSY, WATER | MODEL K2/K3

17710-35F10

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

BOLT (6X20) | MODEL K1

09116-06115

$1.97

3

BOLT | MODEL K2/K3

09118-06097

$2.50

4

SPACER

09180-06290

$2.35

5

CUSHION

09320-10042

$3.12

6

BRACKET, RADIATOR LOWER

17750-35F01

$11.98

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

8

FAN ASSY, RADIATOR

17800-35F00

Unavailable

9

BOLT | MODEL K1/K2 This part replaces 01550-06103.

01550-0610A

$1.97

9

BOLT | MODEL K3

17711-40F00

$5.58

10

NUT | MODEL K1

09148-06015

$3.04

10

NUT, FAN ASSY | MODEL K2/K3

17712-40F00

$4.68
