Description

Price

1

PAN, OIL | MODEL K1 This part replaces 11511-35F00.

11511-35F01

$209.19

1

PAN, OIL | MODEL K2/K3

11511-35F01

$209.19

2

GASKET, OIL PAN

11489-35F00

$13.84

3

BOLT, TENSIONER ADJUSTER This part replaces 09103-06221.

09103-06250

$2.21

4

GASKET (5.8X13X1.2)

09168-06023

$2.09

5

PLUG, OIL DRAIN

09247-14036

$5.74

6

GASKET

09168-14002

$2.83

7

STRAINER ASSY,E This part replaces 16520-35F00.

16520-35F01

$29.70

8

BOLT This part replaces 01550-06203.

01550-0620A

$2.01

9

O RING (D:2.62,ID:20.3)

09280-19008

$5.11

10

VALVE ASSY, OIL RELIEF

16440-24F00

$47.86

11

PUMP ASSY,ENG OIL

16400-35F00

$189.15

12

O RING

16491-35F00

$5.95

13

..BOLT This part replaces 01547-06203.

01547-0620B

$2.50

14

GEAR, OIL PUMP DRIVE | MODEL K1/K2 This part replaces 16321-35F00.

16321-35F01

$78.32

14

GEAR, OIL PUMP DRIVE | MODEL K3

16321-35F01

$78.32

15

GEAR, OIL PUMP DRIVEN

16331-35F00

$83.62

16

WASHER

09181-10158

$2.03

17

PIN

09261-04009

$1.56

18

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.82

19

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

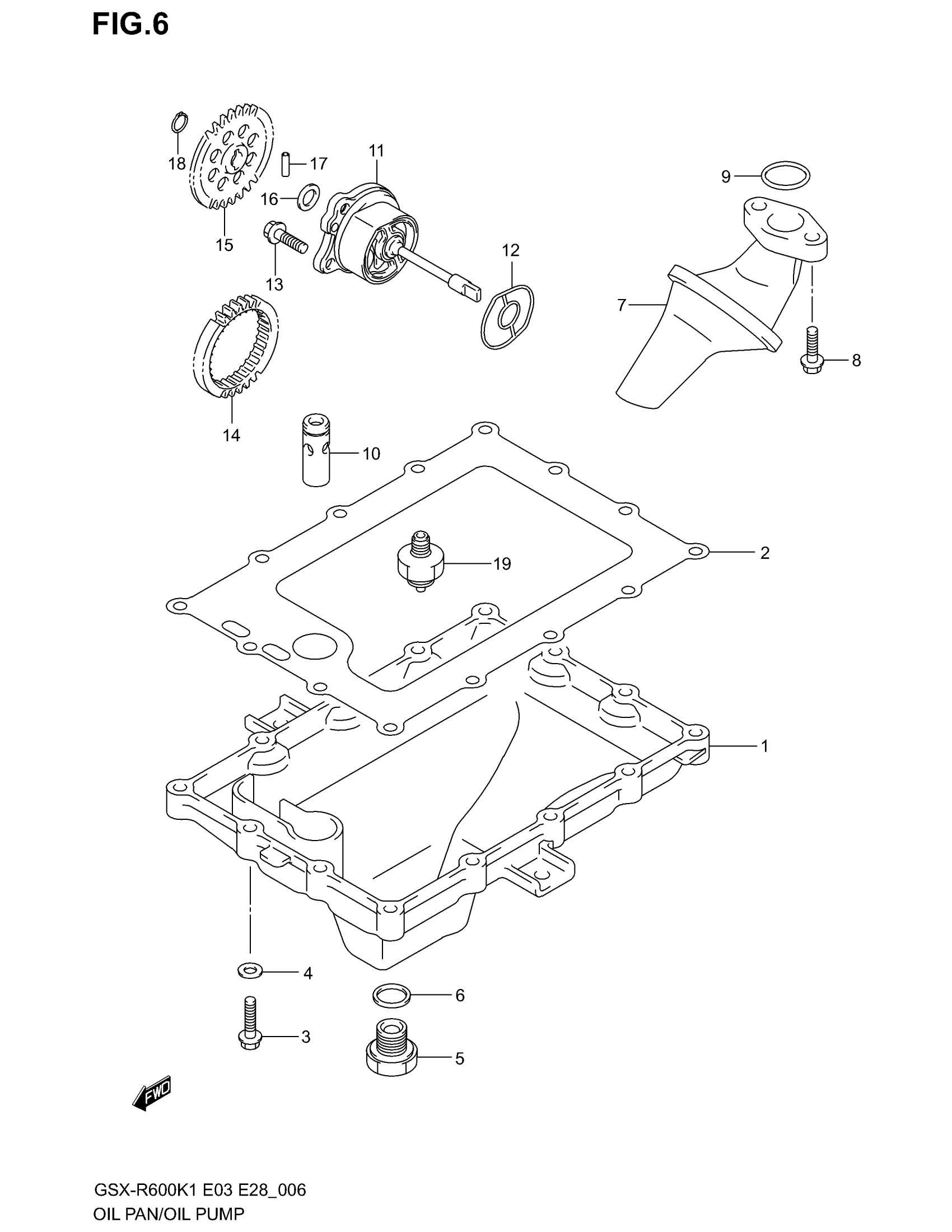

Suzuki GSX-R600 (2003) OIL PAN - OIL PUMP Diagram
