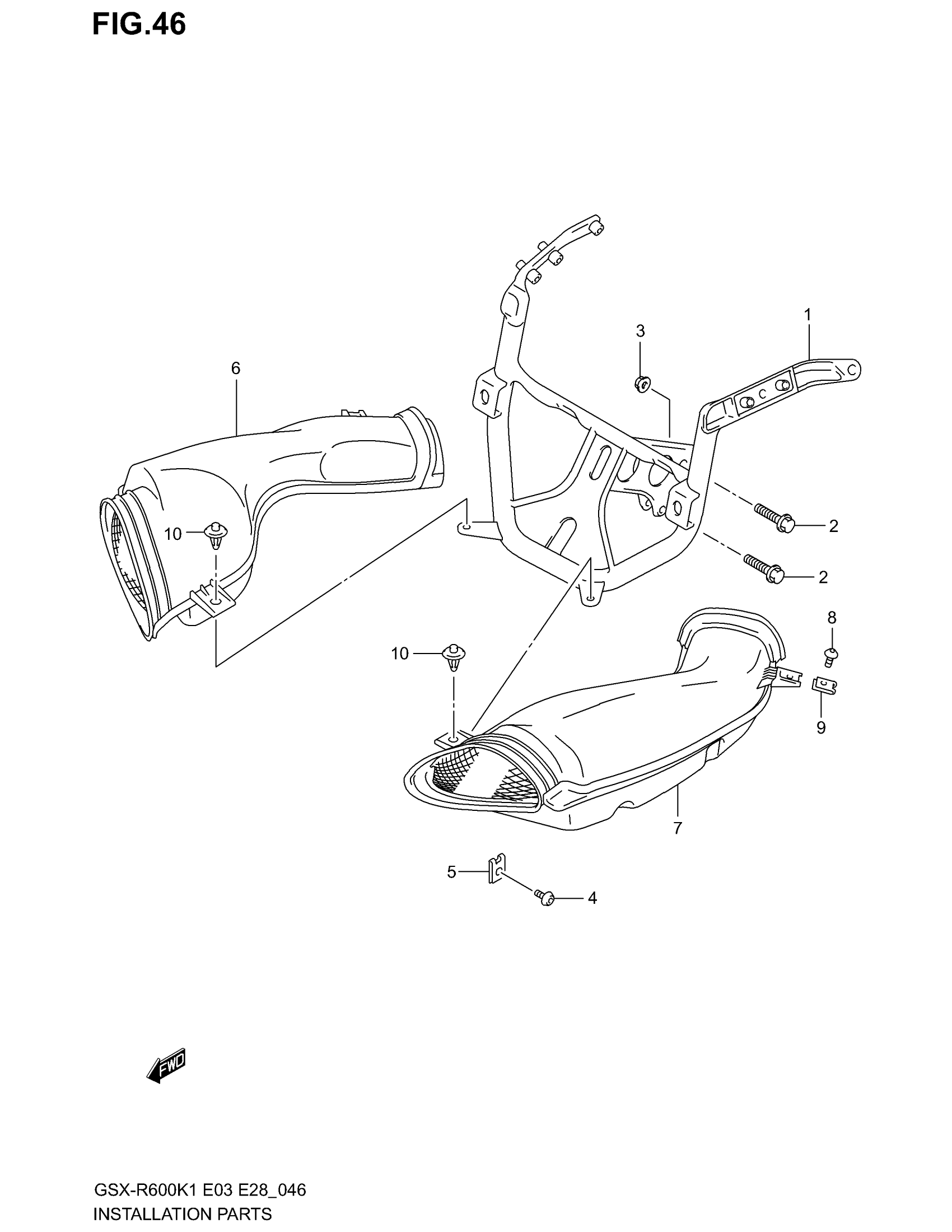

Suzuki GSX-R600 (2003) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING | MODEL K1 This part replaces 94510-35F01.

94510-35F03

$566.43

1

BRACE, COWLING | MODEL K2/K3

94510-35F03

$566.43

2

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80

3

NUT This part replaces 08316-10083.

08316-1008B

$2.65

4

SCREW

09139-05064

$2.56

5

NUT COWL

94484-24F00

$3.63

6

PIPE, AIR INTAKE RH | MODEL K1/K2 This part replaces 94420-35F12.

94420-35F13

$158.70

6

PIPE, AIR INTAKE RH | MODEL K3

94420-35F13

$158.70

7

PIPE, AIR INTAKE LH | MODEL K1/K2 This part replaces 94430-35F10.

94430-35F11

Unavailable

7

PIPE, AIR INTAKE LH | MODEL K3

94430-35F11

Unavailable

8

SCREW, REAR

09139-05064

$2.56

9

NUT COWL

94484-24F00

$3.63

10

CLIP, FRONT

09409-07333

$2.29
