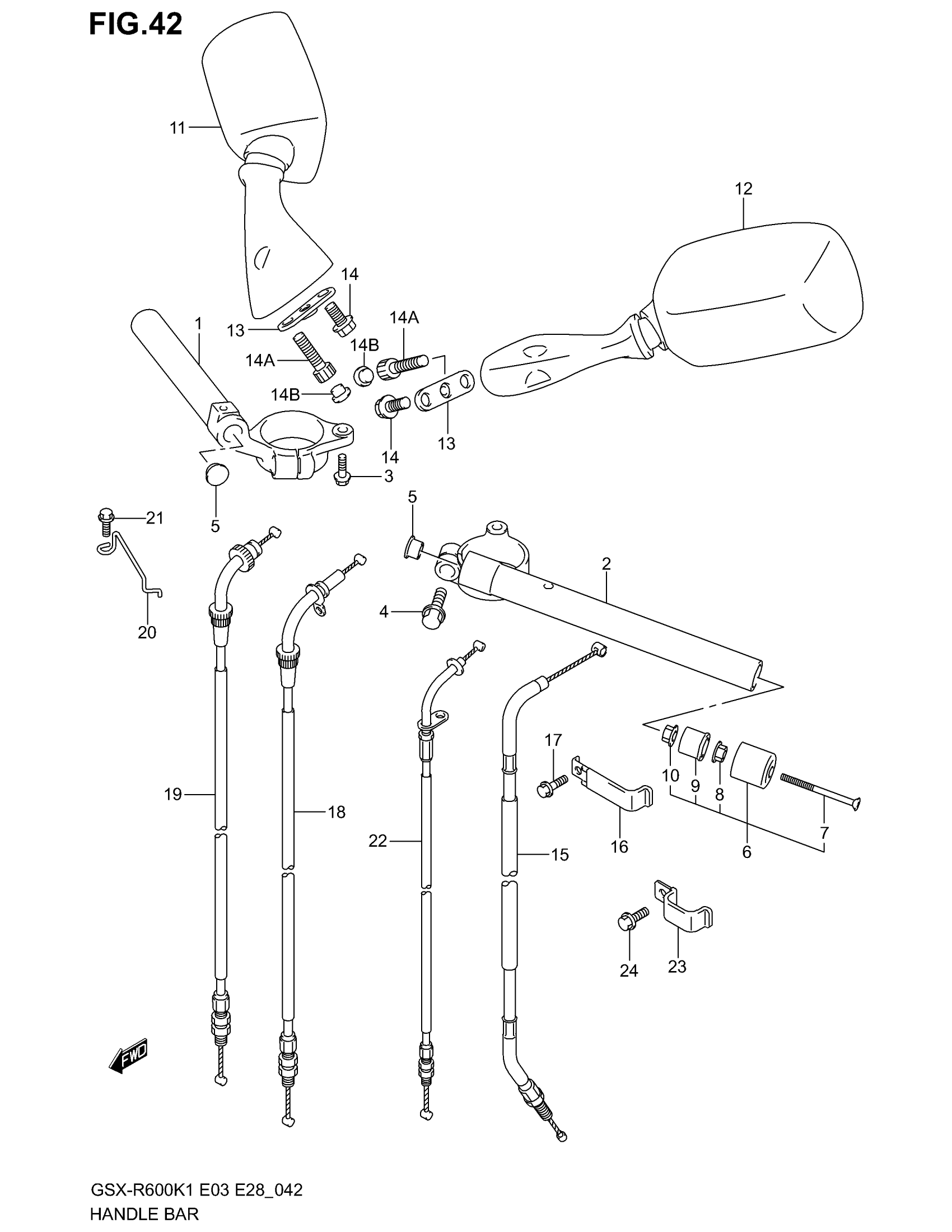

Suzuki GSX-R600 (2003) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-39F00

Unavailable

2

HANDLEBAR, LH

56151-39F00

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT, HANDLEBAR

56123-35F00

$6.17

5

CAP

09250-14006

$1.99

6

BALANCER SET,HA | Includes Item(s) 7 - 10 This part replaces 56200-35830.

56200-35831

$38.70

7

SCREW This part replaces 02122-06603.

02122-0660B

$3.04

8

NUT This part replaces 08316-10083.

08316-1008B

$2.66

9

EXPANDER

56272-44500

$4.42

10

NUT

09159-06024

$2.11

11

MIRROR ASSY, REAR VIEW RH | MODEL K1 This part replaces 56500-24F00.

56500-24F20

$257.48

11

MIRROR ASSY, REAR VIEW RH | MODEL K2/K3

56500-40F10

$164.10

12

MIRROR ASSY, REAR VIEW LH | MODEL K1 This part replaces 56600-24F00.

56600-24F20

$239.77

12

MIRROR ASSY, REAR VIEW LH | MODEL K2/K3

56600-40F10

$164.10

13

CUSHION

94576-24F00

$6.52

14

BOLT, FINAL GEAR CASE | MODEL K1 This part replaces 01547-06303.

01547-0630B

$2.73

14A

BOLT | MODEL K2 This part replaces 07130-06303.

07130-0630B

$3.37

14B

BOLT | MODEL K2/K3

09250-05009

$2.19

15

CABLE ASSY, CLUTCH | MODEL K1

58200-39F00

Unavailable

15

CABLE ASSY, CLUTCH | MODEL K2/K3

58200-35F10

$25.34

16

CLAMP This part replaces 36651-35F00.

36651-35F02

Unavailable

17

BOLT This part replaces 01550-05123.

01550-0512B

$2.87

18

CABLE ASSY, THROTTLE NO.1 | MODEL K1

58300-39F00

Unavailable

18

CABLE ASSY, THROTTLE NO.1 | MODEL K2/K3

58300-39F20

$35.92

19

CABLE ASSY, THROTTLE NO.2 | MODEL K1

58300-39F10

Unavailable

19

CABLE ASSY, THROTTLE NO.2 | MODEL K2/K3

58300-39F30

Unavailable

20

GUIDE,THROTTLE This part replaces 58621-35F10.

58621-35F1V

Unavailable

21

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

22

CABLE, STARTER

58410-39F00

Unavailable

23

CLAMP | MODEL K1 This part replaces 09403-10307.

09403-10328

$1.98

24

BOLT | MODEL K1 This part replaces 01550-06103.

01550-0610A

$1.97
