Description

Price

1

GASKET SET | OPT MODEL K1 This part replaces 11401-39840.

11401-39851

Unavailable

1

GASKET SET | OPT MODEL K2/K3; Includes Item(s) 2 - 21 This part replaces 11401-39850.

11401-39851

Unavailable

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-39F00

$109.88

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-35F00

$49.57

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-33E00

$6.20

5

COVER, 2ND AIR PASSAGE | NOT SHOWN

11182-35F00

$3.29

6

WASHER, HEAD COVER | NOT SHOWN

09161-11008

$4.49

7

.GASKET, CLUTCH COVER | MODEL K1 NOT SHOWN This part replaces 11482-35F00.

11482-40F10

$15.69

7

.GASKET, CLUTCH COVER | MODEL K2/K3 NOT SHOWN This part replaces 11482-40F00.

11482-40F10

$15.69

8

GASKET, STARTER CLUTCH COVER | NOT SHOWN

11491-33E02

$8.73

9

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.23

10

GASKET, STARTER IDLE GEAR CAP | NOT SHOWN

11492-33E00

$7.22

11

GASKET, MAGNETO COVER | NOT SHOWN

11483-35F00

$11.07

12

GASKET, BREATHER COVER | NOT SHOWN

11484-35F00

$4.94

13

GASKET, OIL PAN | NOT SHOWN

11489-35F00

$14.46

14

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-35F00

$3.65

15

GASKET, MUFFLER JOINT | NOT SHOWN

14181-02F00

$6.93

16

GASKET | NOT SHOWN This part replaces 14181-46E00.

14181-46E10

$7.22

17

O RING, MUFFLER FRONT | NOT SHOWN

09280-08012

$3.68

18

O RING, OIL PUMP | NOT SHOWN

16491-35F00

$6.22

19

O RING, OIL STRAINER | NOT SHOWN

09280-19008

$5.50

20

O RING, OIL COOLER | NOT SHOWN

09280-64003

$5.64

21

O-RING | NOT SHOWN

15201-35F00

$27.60

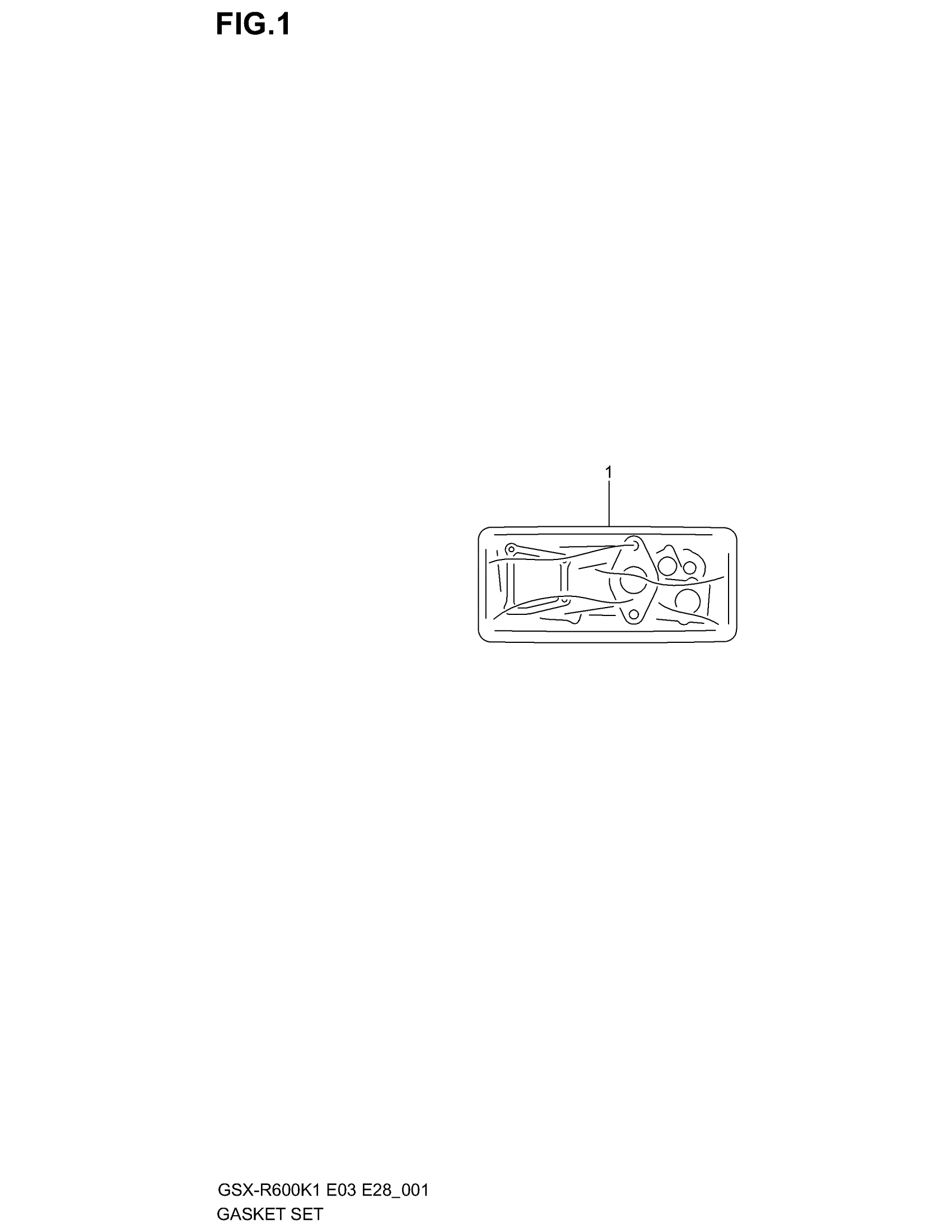

Suzuki GSX-R600 (2003) GASKET SET Diagram
