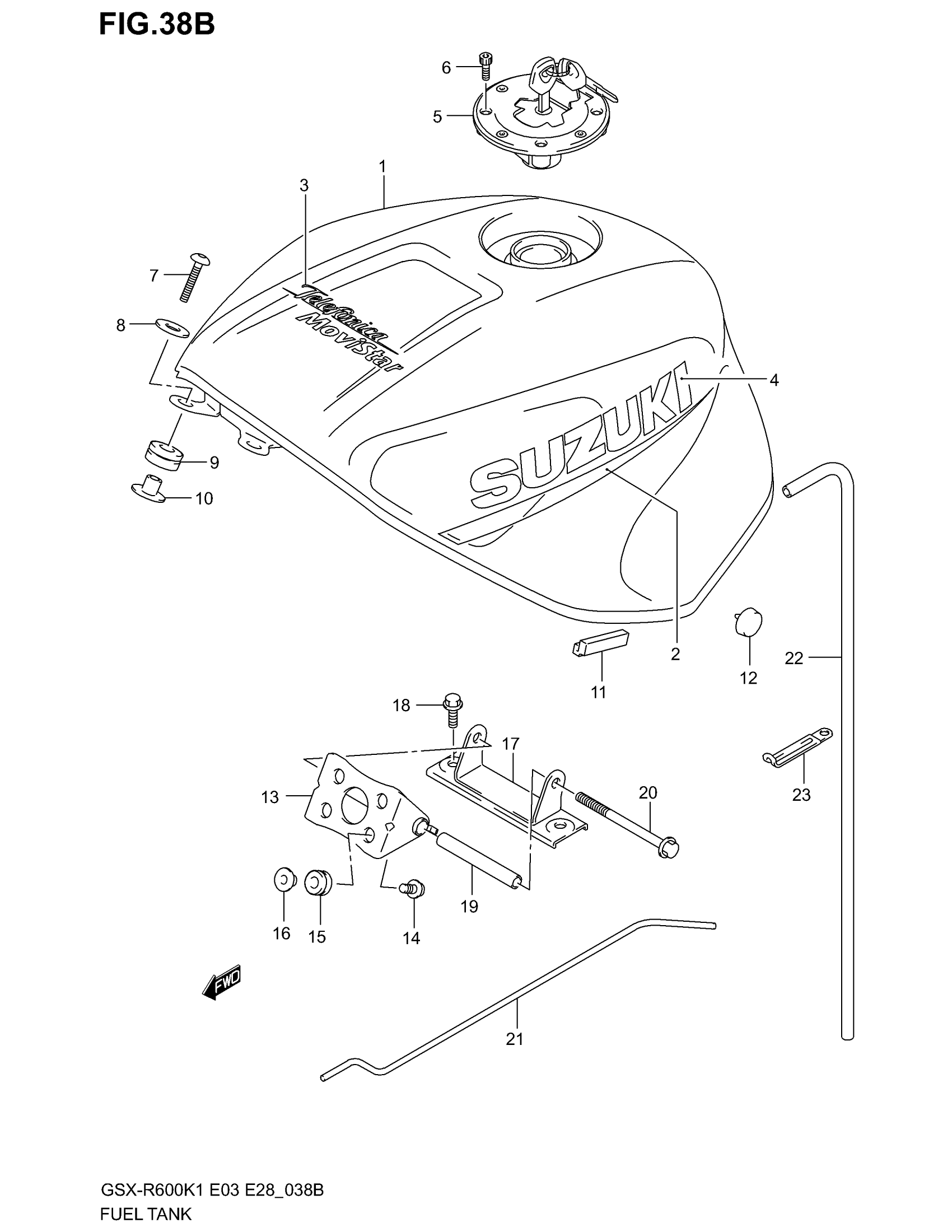

Suzuki GSX-R600 (2003) FUEL TANK (MODEL K2 FOR YC2) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-39FA0-YC2

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33; Includes Item(s) 2 - 4

44100-39FB0-YC2

Unavailable

2

TAPE SET, FUEL TANK

68110-39F20-FT8

Unavailable

3

EMBLEM "MOVISTAR"

68111-39F00-FP1

Unavailable

4

EMBLEM (WHITE)

68111-42E20-0JW

Unavailable

5

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

5

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

6

BOLT

09106-05017

$2.83

7

BOLT, FRONT

09139-06029

$5.36

8

WASHER

09160-06054

$1.62

9

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

10

SPACER, FRONT

44512-19F00

$7.44

11

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$7.19

12

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

13

BRACKET, REAR UPPER

44530-35F00

Unavailable

14

BOLT

09116-06152

$2.36

15

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

16

SPACER

09169-06062

$2.50

17

BRACKET, REAR LOWER

44550-35F10

Unavailable

18

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

19

SPACER JOINT

44561-35F00

$13.88

20

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

21

STAY

44574-35F00

$15.16

22

HOSE,FUEL TANK This part replaces 44423-35F00.

44423-35F01

Unavailable

23

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
