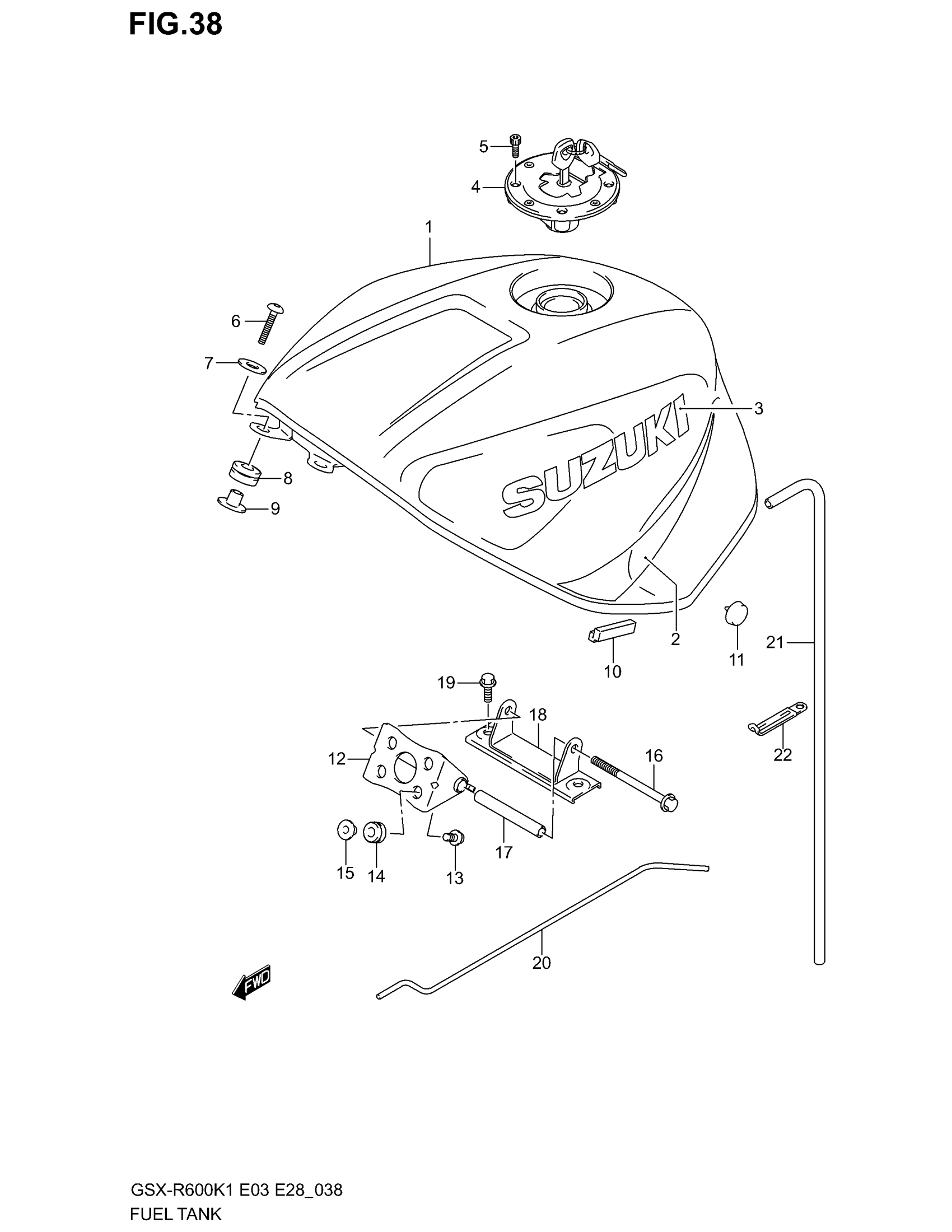

Suzuki GSX-R600 (2003) FUEL TANK (MODEL K1) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | E3,E28 FOR L99 This part replaces 44100-39F00-L99.

44100-39F40-L99

Unavailable

1

TANK ASSY,FUEL | E33 FOR L99 This part replaces 44100-39F10-L99.

44100-39F50-L99

Unavailable

1

NO DESCRIPTION AVAILABLE | E3,E28 FOR BP9 This part replaces 44100-39F20-Y9H.

44100-39F60-Y9H

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 FOR BP9; Includes Item(s) 2 - 3 This part replaces 44100-39F30-Y9H.

44100-39F70-Y9H

Unavailable

2

TAPE SET,FUEL T | FOR L99 This part replaces 68110-39F00-1LE.

68110-39F10-1LE

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR Y9H This part replaces 68110-39F00-Y7L.

68110-39F10-Y7L

Unavailable

3

EMBLEM (WHITE) | FOR L99 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

3

EMBLEM (BLACK) | FOR Y9H This part replaces 68111-12C00-Y7L.

68111-12C30-Y7L

Unavailable

4

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT

09106-05017

$2.83

6

BOLT, FRONT

09139-06029

$5.36

7

WASHER

09160-06054

$1.62

8

CUSHION,FUEL TA This part replaces 44511-19F00.

44511-19F01

$5.68

9

SPACER, FRONT

44512-19F00

$7.44

10

CUSHION,FUEL TA This part replaces 44541-35F00.

44541-35F01

$7.19

11

CUSHION,FUEL TA This part replaces 44542-35F00.

44542-35F01

$6.58

12

BRACKET, REAR NO.1

44530-35F00

Unavailable

13

BOLT

09116-06152

$2.36

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER

09169-06062

$2.50

16

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

17

SPACER

44561-35F00

$13.88

18

BRACKET, REAR NO.2

44550-35F10

Unavailable

19

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

20

STAY, FUEL TANK

44574-35F00

$15.16

21

HOSE,FUEL TANK This part replaces 44423-35F00.

44423-35F01

Unavailable

22

CLAMP This part replaces 09404-06432.

09404-06039

$1.74
