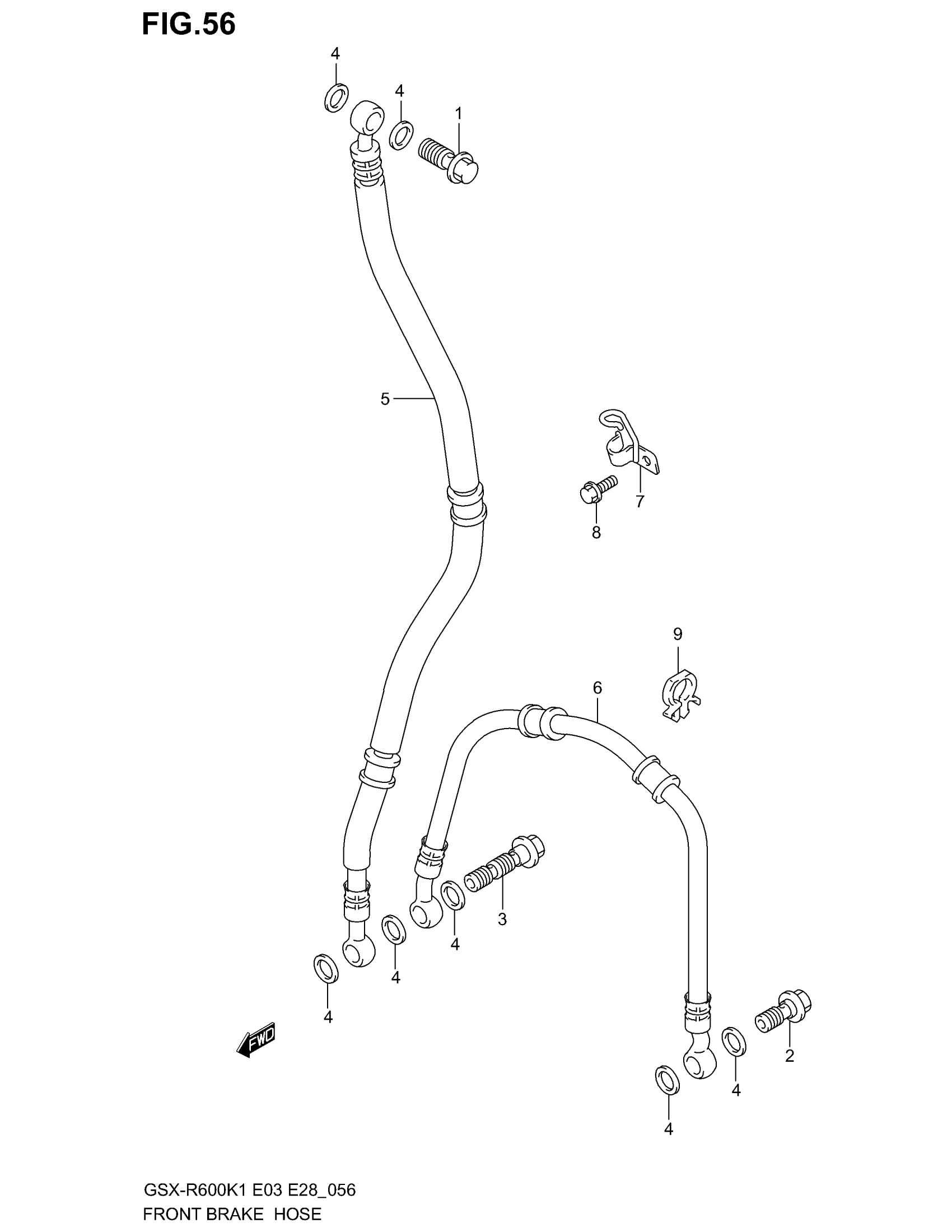

Suzuki GSX-R600 (2003) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10041.

09360-10061

$6.07

2

UNION This part replaces 09360-10042.

09360-10062

$5.99

3

UNION This part replaces 09360-10044.

09360-10064

$5.99

4

WASHER (10X15X1.5)

09161-10009

$1.89

5

HOSE | MODEL K1 This part replaces 59480-35F00.

59480-35F11

Unavailable

5

HOSE | MODEL K2/K3 This part replaces 59480-35F10.

59480-35F11

Unavailable

6

HOSE, FRONT BRAKE NO.2 | MODEL K1

59240-35F00

Unavailable

6

HOSE, FRONT BRAKE NO.2 | MODEL K2/K3

59240-40F00

Unavailable

7

CLAMP, BRAKE HOSE NO.1

59260-40F00

$22.68

8

BOLT This part replaces 01547-06123.

01547-0612B

$1.25

9

CLAMP, BRAKE HOSE NO.2

09403-14304

$3.05
