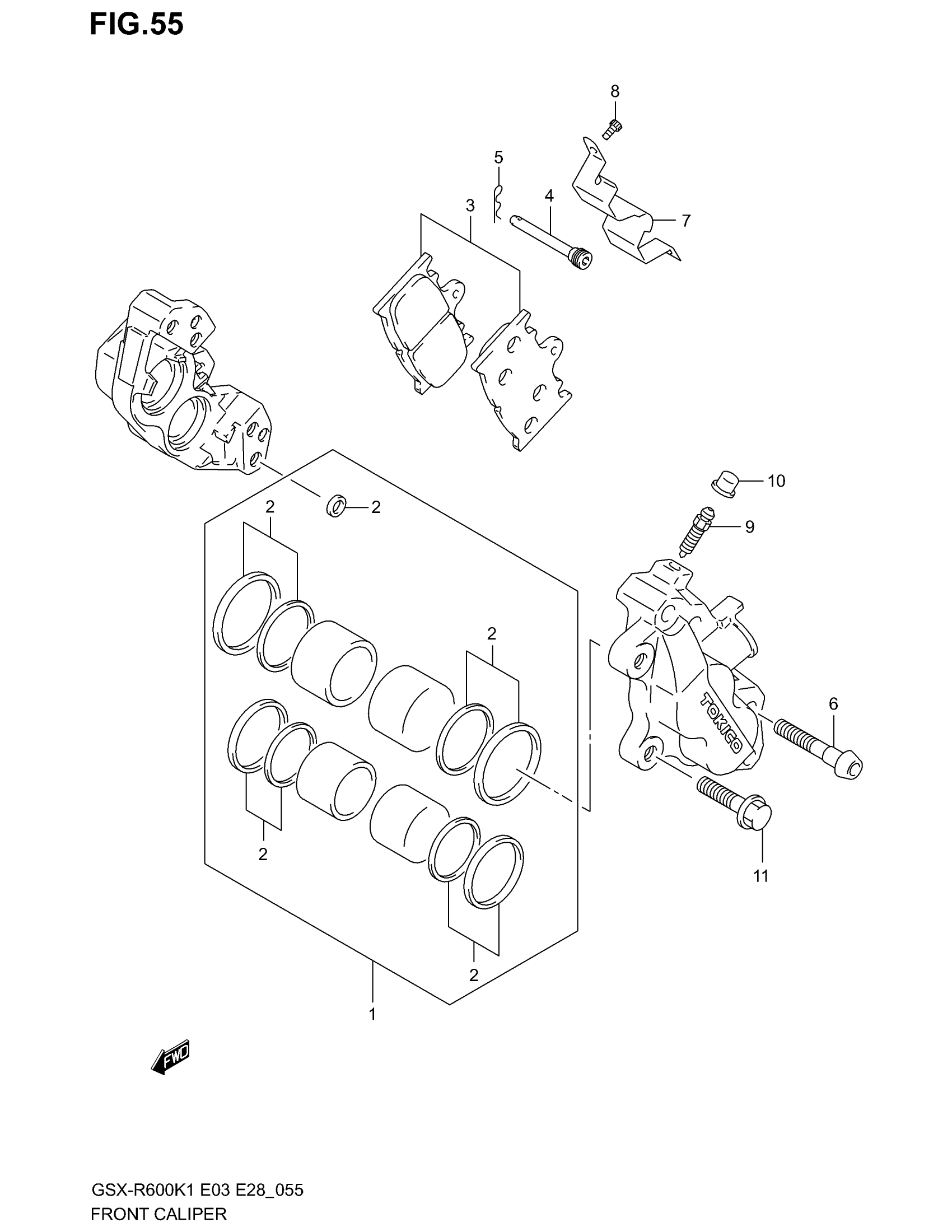

Suzuki GSX-R600 (2003) FRONT CALIPERS Diagram

#

Description
Price

CALIPER ASSY,FR | MODEL K1 This part replaces 59100-35F20.

59100-35F20-999

Unavailable

CALIPER ASSY, F | MODEL K1 This part replaces 59300-35F20.

59300-35F20-999

Unavailable

CALIPER ASSY,FR | MODEL K2/K3 This part replaces 59100-35F40.

59100-35F20-999

Unavailable

CALIPER ASSY, F | MODEL K2/K3; Includes Item(s) 1 - 10 This part replaces 59300-35F40.

59300-35F20-999

Unavailable

1

PISTON SET

59100-35810

$145.38

2

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$37.48

3

PAD SET

59100-35850

$78.20

4

PIN | MODEL K1

69141-35F00

$66.67

4

PIN | MODEL K2/K3

69141-40F00

$29.01

5

.CLIP, PAD PIN | MODEL K1

69142-45000

$4.15

6

BOLT This part replaces 59145-33E10.

59145-33E00

$10.58

7

COVER | RH

59152-35F00

$23.73

7

COVER | LH

59151-35F00

$23.73

8

.SCREW

59153-22D00

$7.12

9

BLEEDER

59121-18410

$8.35

10

CAP

55156-66310

$4.94

11

BOLT

09103-08359

$3.54
