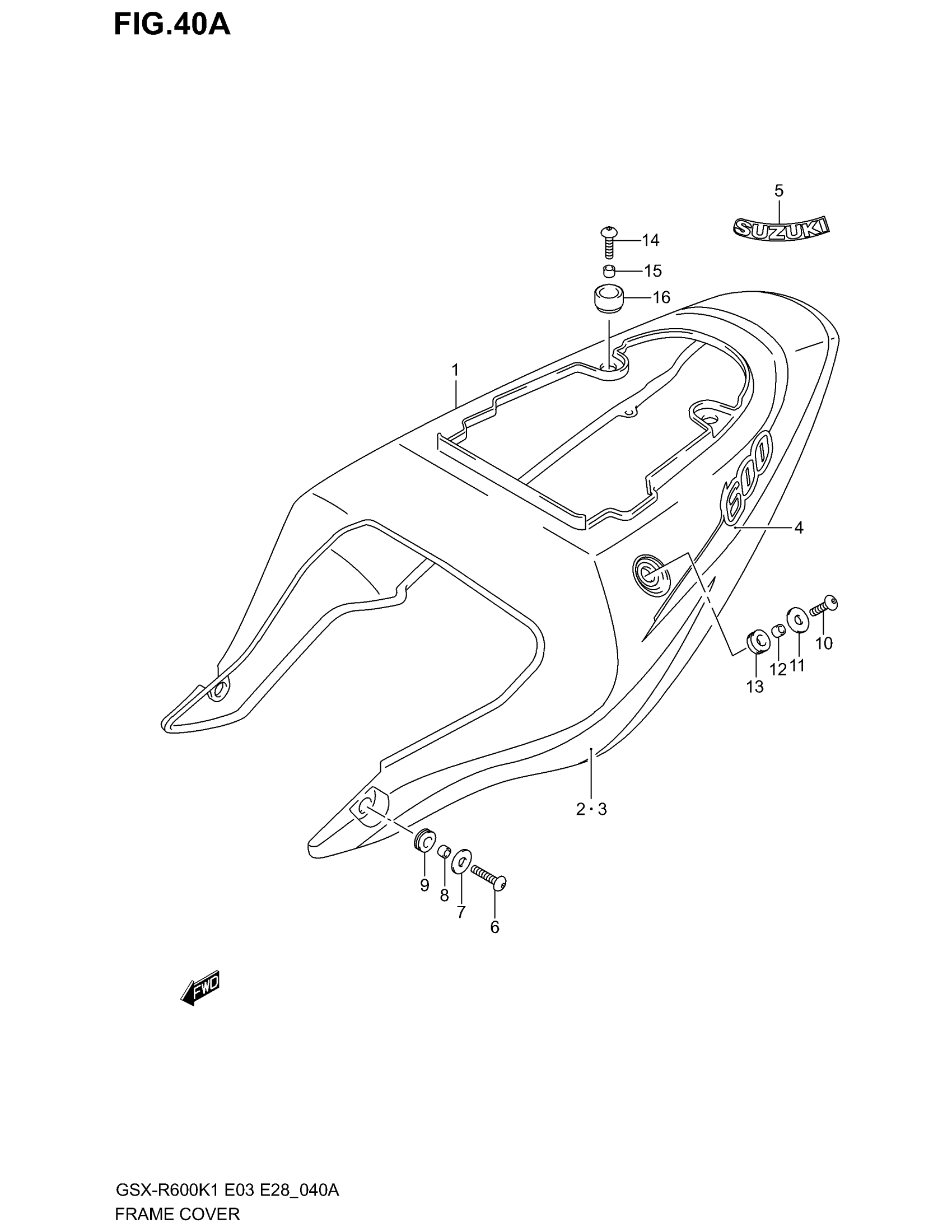

Suzuki GSX-R600 (2003) FRAME COVER (MODEL K2) Diagram

#

Description
Price

1

COVER, FRAME (WHITE) | FOR L99

47100-39F20-0JW

Unavailable

1

COVER, FRAME (BLACK) | FOR BP9

47100-39F20-Y7L

Unavailable

1

COVER, FRAME (BLUE) | FOR GZ8; Includes Item(s) 2 - 5

47100-39F20-YC2

Unavailable

2

TAPE, FRONT RH (BLUE) | FOR 0JW

68135-35F50-1LE

Unavailable

2

TAPE, FRONT RH (YELLOW) | FOR Y7L

68135-35F50-Y9H

Unavailable

2

TAPE, FRONT RH (SILVER) | FOR YC2

68135-35F50-YD8

Unavailable

3

TAPE, FRONT LH (BLUE) | FOR 0JW

68145-35F50-1LE

Unavailable

3

TAPE, FRONT LH (YELLOW) | FOR Y7L

68145-35F50-Y9H

Unavailable

3

TAPE, FRONT LH (SILVER) | FOR YC2

68145-35F50-YD8

Unavailable

4

TAPE, REAR | FOR 0JW

68135-39F20-FS8

Unavailable

4

TAPE, REAR | FOR Y7L

68135-39F20-HC2

Unavailable

4

TAPE, REAR | FOR YC2

68135-39F20-HC3

Unavailable

5

EMBLEM (BLACK) | FOR 0JW

68131-39F00-019

Unavailable

5

EMBLEM,FRAME CO | FOR Y7L,YC2 This part replaces 68131-39F00-YD8.

68131-39F01-YD8

Unavailable

6

SCREW, FRONT SIDE

09139-06042

$5.55

7

WASHER

09160-06047

$1.91

8

SPACER

09180-06283

$1.91

9

CUSHION, FRONT SIDE

47161-35F00

$4.78

10

SCREW, REAR SIDE

09139-06029

$5.36

11

WASHER

09160-06047

$1.91

12

SPACER

09180-06283

$1.91

13

CUSHION, REAR SIDE

47161-35F10

$6.76

14

SCREW, UPPER

09139-06029

$5.36

15

SPACER

09180-06286

$2.50

16

CUSHION, UPPER

09320-10045

$3.76
