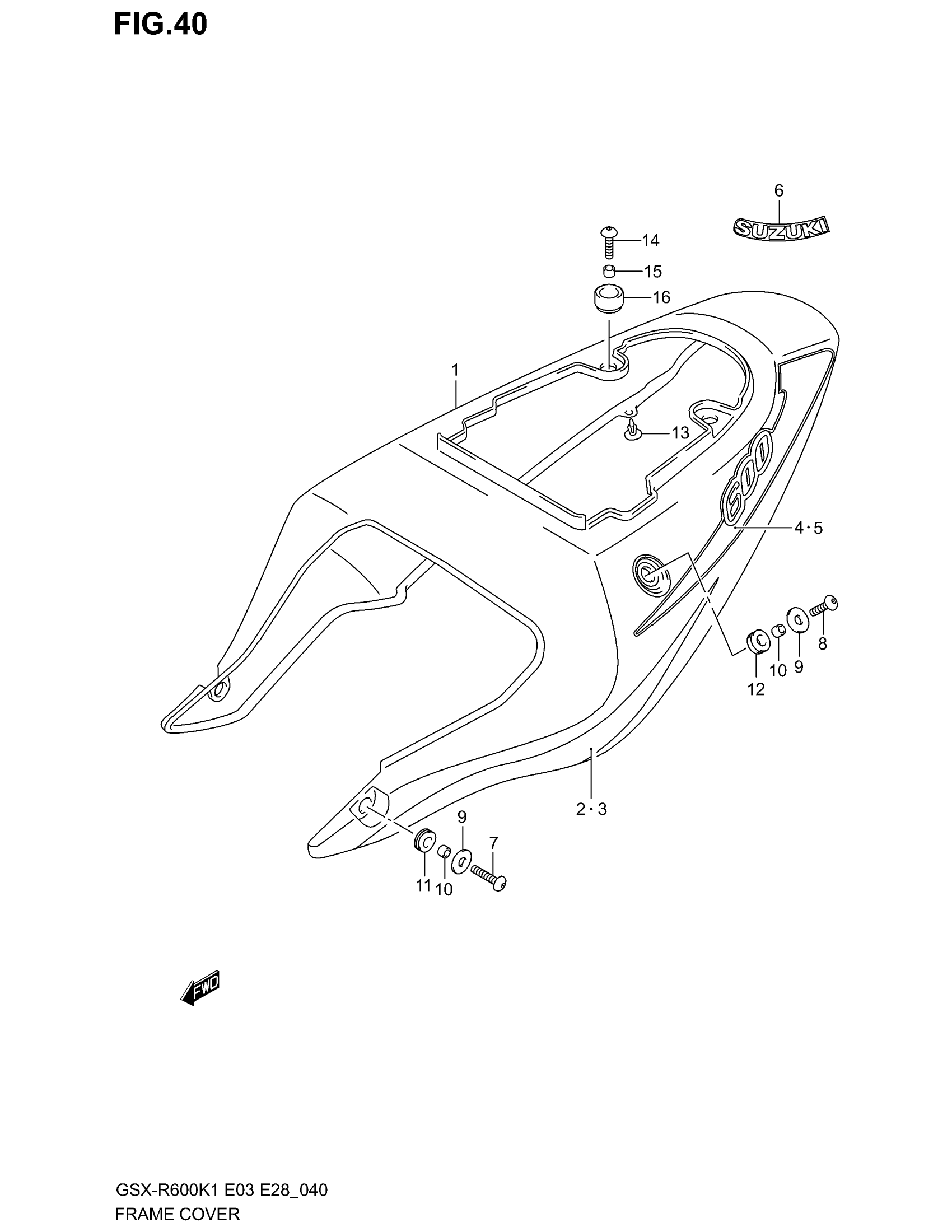

Suzuki GSX-R600 (2003) FRAME COVER (MODEL K1) Diagram

#

Description
Price

1

COVER, FRAME (WHITE) | FOR L99

47100-39F00-0JW

Unavailable

1

COVER, FRAME (YELLOW) | FOR BP9; Includes Item(s) 2 - 6

47100-39F00-Y9H

Unavailable

2

TAPE, FRONT RH (BLUE) | FOR 0JW

68135-35F30-1LE

Unavailable

2

TAPE, FRONT RH (BLACK) | FOR Y9H

68135-35F30-Y7L

Unavailable

3

TAPE, FRONT LH (BLUE) | FOR 0JW

68145-35F30-1LE

Unavailable

3

TAPE, FRONT LH (BLACK) | FOR Y9H

68145-35F30-Y7L

Unavailable

4

TAPE, REAR RH | FOR 0JW

68135-39F00-K8S

Unavailable

4

TAPE, REAR RH | FOR Y9H

68135-39F00-FM6

Unavailable

5

TAPE, REAR LH | FOR 0JW

68145-39F00-K8S

Unavailable

5

TAPE, REAR LH | FOR Y9H

68145-39F00-FM6

Unavailable

6

EMBLEM, REAR (BLACK) | FOR 1LE

68131-39F00-019

Unavailable

6

EMBLEM, REAR (BLACK) | FOR Y9H

68131-39F00-Y7L

Unavailable

7

SCREW, FRONT SIDE

09139-06042

$5.07

8

SCREW, REAR SIDE

09139-06029

$4.84

9

WASHER

09160-06047

$1.89

10

SPACER

09180-06283

$1.89

11

CUSHION, FRONT

47161-35F00

$4.49

12

CUSHION, SIDE

47161-35F10

$6.37

13

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.80

14

SCREW, UPPER

09139-06029

$4.84

15

SPACER

09180-06286

$2.53

16

CUSHION

09320-10045

$3.38
