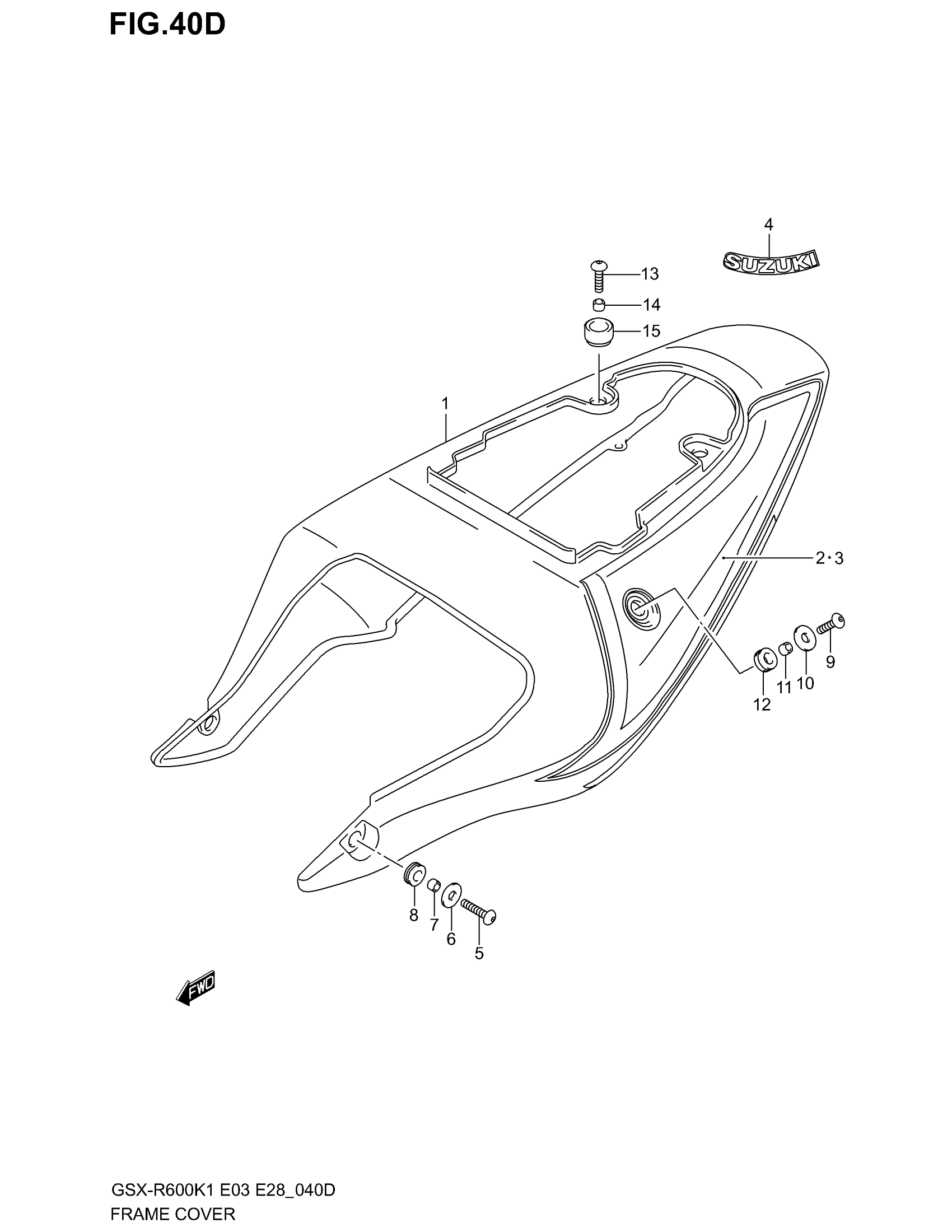

Suzuki GSX-R600 (2003) FRAME COVER (GSX-R600ZK3) Diagram

#

Description

Price

1

COVER, FRAME | Includes Item(s) 2 - 4

47100-39FR0-MH3

Unavailable

2

TAPE, FRAME COVER RH

68135-39FA0-MG8

Unavailable

3

TAPE, FRAME COVER LH

68145-39FA0-MG8

Unavailable

4

EMBLEM (WHITE)

68131-39F00-YBD

Unavailable

5

SCREW, FRONT SIDE

09139-06042

$5.25

6

WASHER

09160-06047

$1.97

7

SPACER

09180-06283

$1.97

8

CUSHION, FRONT SIDE

47161-35F00

$4.70

9

SCREW, REAR SIDE

09139-06029

$4.99

10

WASHER

09160-06047

$1.97

11

SPACER

09180-06283

$1.97

12

CUSHION, REAR SIDE

47161-35F10

$6.65

13

SCREW, UPPER

09139-06029

$4.99

14

SPACER

09180-06286

$2.61

15

CUSHION, UPPER

09320-10045

$3.49
