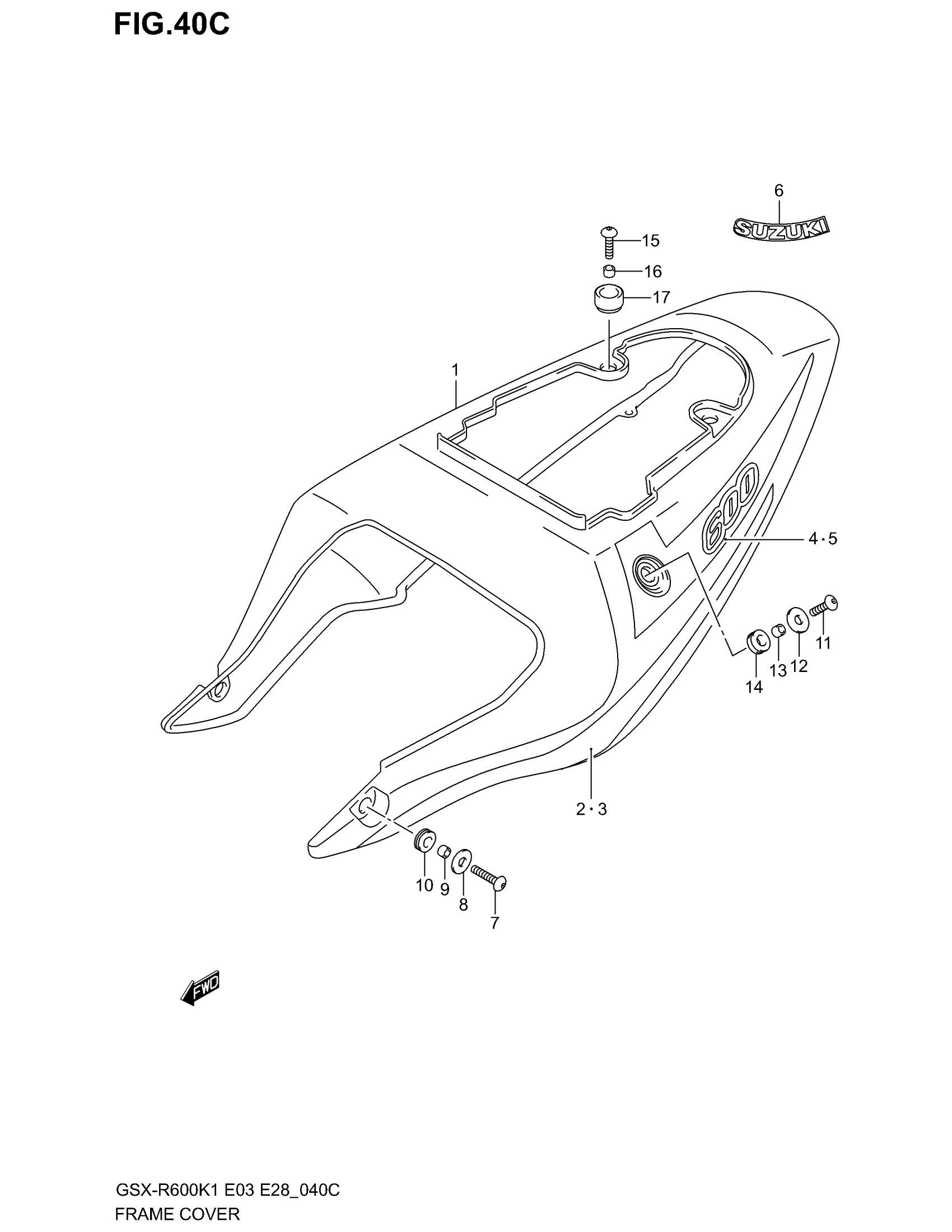

Suzuki GSX-R600 (2003) FRAME COVER (GSX-R600K3) Diagram

#

Description
Price

1

COVER, FRAME (WHITE) | FOR LR5

47100-39F40-YBD

Unavailable

1

COVER, FRAME (SILVER) | FOR CT5

47100-39F40-YD8

Unavailable

1

COVER, FRAME (YELLOW) | FOR KU2; Includes Item(s) 2 - 6

47100-39F40-YU9

Unavailable

2

TAPE, FRONT RH | FOR YBD

68135-39F40-LS3

Unavailable

2

TAPE, FRONT RH | FOR YD8

68135-39F40-CT5

Unavailable

2

TAPE, FRONT RH | FOR YU9

68135-39F40-KU2

Unavailable

3

TAPE, FRONT LH | FOR YBD

68145-39F40-LS3

Unavailable

3

TAPE, FRONT LH | FOR YD8

68145-39F40-CT5

Unavailable

3

TAPE, FRONT LH | FOR YU9

68145-39F40-KU2

Unavailable

4

TAPE, REAR RH | FOR YBD

68135-39F50-LV8

Unavailable

4

TAPE, REAR RH | FOR YD8

68135-39F50-CG9

Unavailable

4

TAPE, REAR RH | FOR YU9

68135-39F50-CT5

Unavailable

5

TAPE, REAR LH | FOR YBD

68145-39F50-LV8

Unavailable

5

TAPE, REAR LH | FOR YD8

68145-39F50-CG9

Unavailable

5

TAPE, REAR LH | FOR YU9

68145-39F50-CT5

Unavailable

6

EMBLEM (BLACK)

68131-39F00-019

Unavailable

7

SCREW, FRONT SIDE

09139-06042

$5.55

8

WASHER

09160-06047

$1.91

9

SPACER

09180-06283

$1.91

10

CUSHION, FRONT SIDE

47161-35F00

$4.78

11

SCREW, REAR SIDE

09139-06029

$5.36

12

WASHER

09160-06047

$1.91

13

SPACER

09180-06283

$1.91

14

CUSHION, REAR SIDE

47161-35F10

$6.76

15

SCREW, UPPER

09139-06029

$5.36

16

SPACER

09180-06286

$2.50

17

CUSHION, UPPER

09320-10045

$3.76
