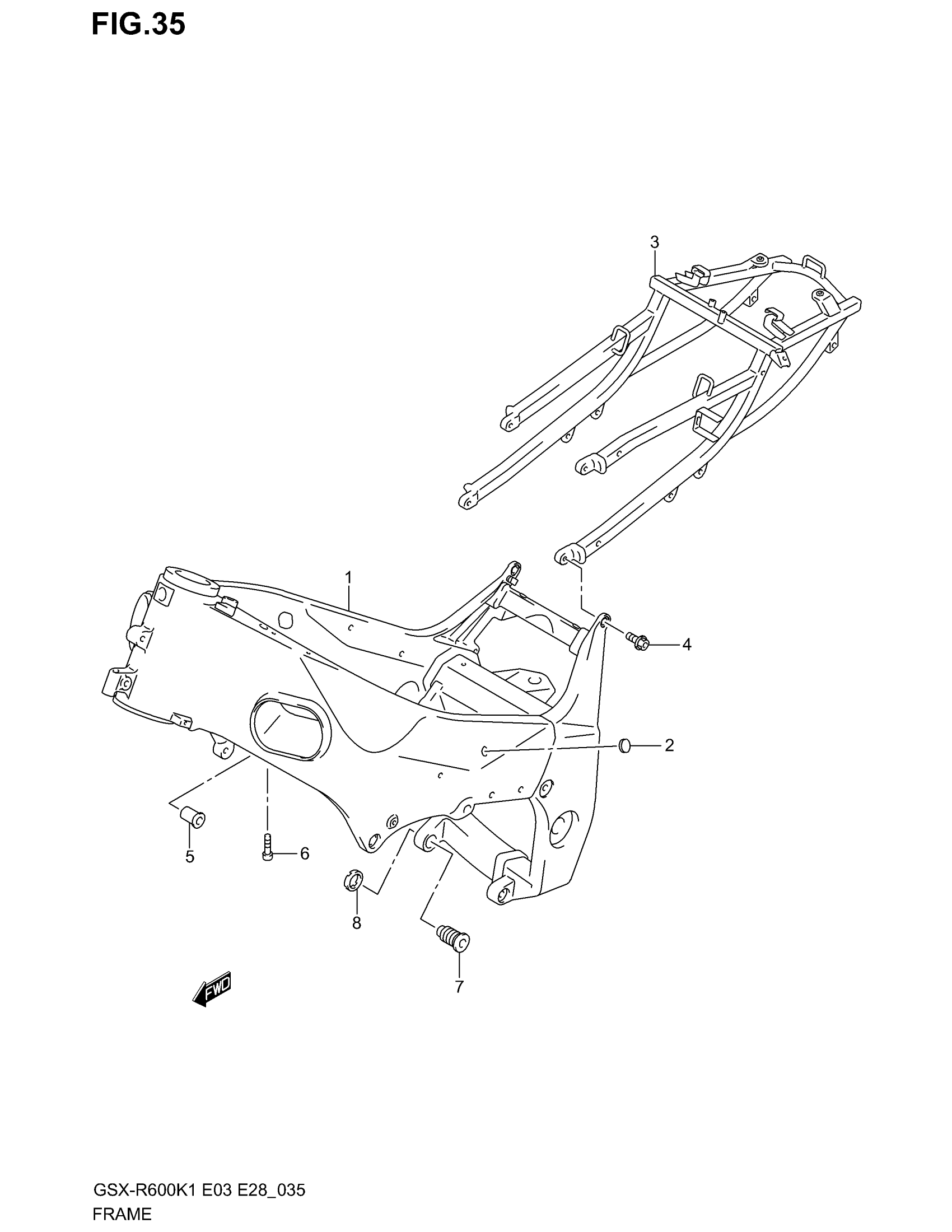

Suzuki GSX-R600 (2003) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 41100-39F00.

41100-39F01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K2 This part replaces 41100-39F10.

41100-39F11

Unavailable

1

FRAME | MODEL K3

41100-39F20

Unavailable

2

CAP,TANK RAIL This part replaces 43585-33E00.

43585-33E01

$4.25

3

RAIL,SEAT | MODEL K1 This part replaces 41200-39F00.

41200-39F02

Unavailable

3

RAIL,SEAT | MODEL K2 This part replaces 41200-35F20.

41200-35F24

Unavailable

3

RAIL,SEAT | MODEL K3 This part replaces 41200-35F23.

41200-35F24

Unavailable

4

BOLT,SEAT RAIL This part replaces 41233-35F00.

41233-35F0V

$10.65

5

SPACER, ENGINE MOUNT | MODEL K1/K2 This part replaces 41911-33E00.

41911-40F01

$22.56

5

SPACER, ENGINE MOUNT | MODEL K3

41911-40F01

$22.56

6

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

7

BOLT, CRANKCASE ADJUST | MODEL K1

41921-33E11

$49.42

7

BOLT, CRANKCASE ADJUST | MODEL K2/K3

41921-39F00

Unavailable

8

NUT, CRANK CASE ADJUST

41922-33E00

$22.52
