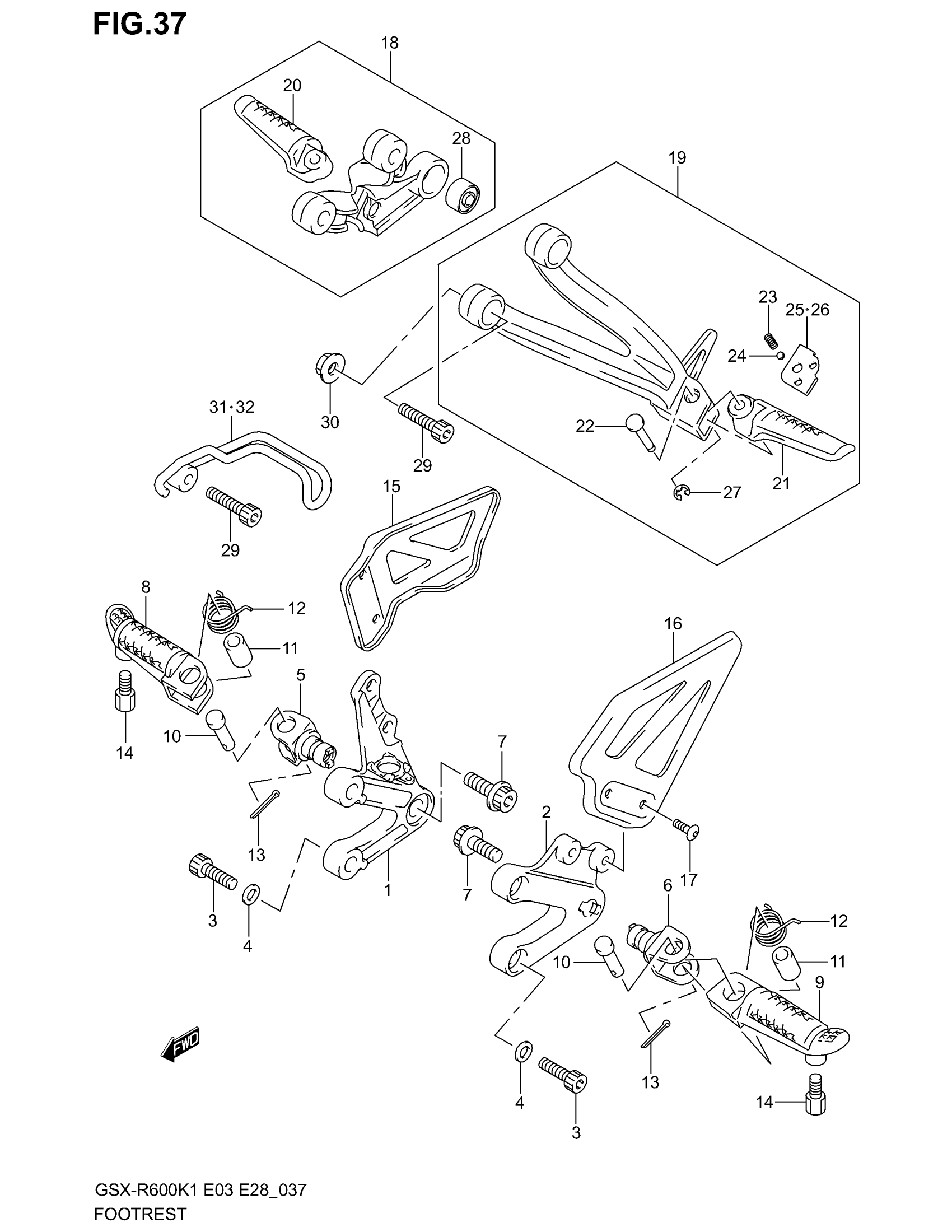

Suzuki GSX-R600 (2003) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-35F00

$138.38

2

BRACKET, FRONT FOOTREST LH

43521-35F00

$117.30

3

BOLT, BRACKET

43512-35F00

$6.30

4

WASHER

09164-08022

$3.55

5

HOLDER, FOOTREST RH | MODEL K1 This part replaces 43530-35F00.

43530-35F10

$52.33

5

HOLDER, FOOTREST RH | MODEL K2 This part replaces 43530-35F01.

43530-35F10

$52.33

5

HOLDER, FOOTREST RH | MODEL K3

43530-35F10

$52.33

6

HOLDER, FOOTREST LH | MODEL K1 This part replaces 43540-35F00.

43540-35F10

$52.33

6

HOLDER, FOOTREST LH | MODEL K2 This part replaces 43540-35F01.

43540-35F10

$52.33

6

HOLDER, FOOTREST LH | MODEL K3

43540-35F10

$52.33

7

BOLT, HOLDER

09106-10064

$4.90

8

BAR, FRONT FOOTREST RH

43516-35F00

$61.85

9

BAR, FRONT FOOTREST LH

43526-35F00

$61.85

10

PIN

09200-08057

$2.36

11

SPACER

09180-08149

$5.58

12

SPRING

09448-18022

$3.79

13

PIN This part replaces 04111-25158.

04111-2515A

$1.49

14

.BOLT,BANK SENSOR

43576-07D01

$8.85

15

GUARD, FOOTREST RH | MODEL K1 This part replaces 43571-35F00.

43571-35F01

Unavailable

15

GUARD, FOOTREST RH | MODEL K2/K3

43571-35F01

Unavailable

16

GUARD,FR FOOTRE This part replaces 43576-35F00.

43576-35F01

Unavailable

17

SCREW,FOOTREST GUARD,L | MODEL K1 This part replaces 43577-35F00.

43577-35F10

$3.98

17

BOLT, GUARD LH | MODEL K2/K3

09139-05067

$3.15

18

FOOTREST ASSY, PILLION RH

43600-35F00

Unavailable

19

FOOTREST ASSY, PILLION LH | Includes Item(s) 20 - 28

43700-35F00

Unavailable

20

BAR, PILLION RH This part replaces 43611-35F00.

43611-35F01

$64.30

21

BAR, PILLION LH This part replaces 43621-35F00.

43621-35F01

$61.93

22

PIN

87259-85510

$5.19

23

SPRING

09440-05005

$1.58

24

BALL

06111-07004

$1.49

25

PLATE, RH

43816-33E21

$10.41

26

PLATE, LH | MODEL K1 This part replaces 43826-33E21.

43826-33E22

$10.41

26

PLATE, LH | MODEL K2/K3

43826-33E22

$10.41

27

E RING This part replaces 08332-11043.

08332-1104A

$1.49

28

BUSH This part replaces 09319-08028.

09319-08052

$21.22

29

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.49

30

NUT This part replaces 08319-31083.

08319-3108A

$2.32

31

BRACKET, HOOK RH | MODEL K2/K3

43630-35F10

Unavailable

32

BRACKET, HOOK LH | MODEL K2/K3

43730-35F10

Unavailable
