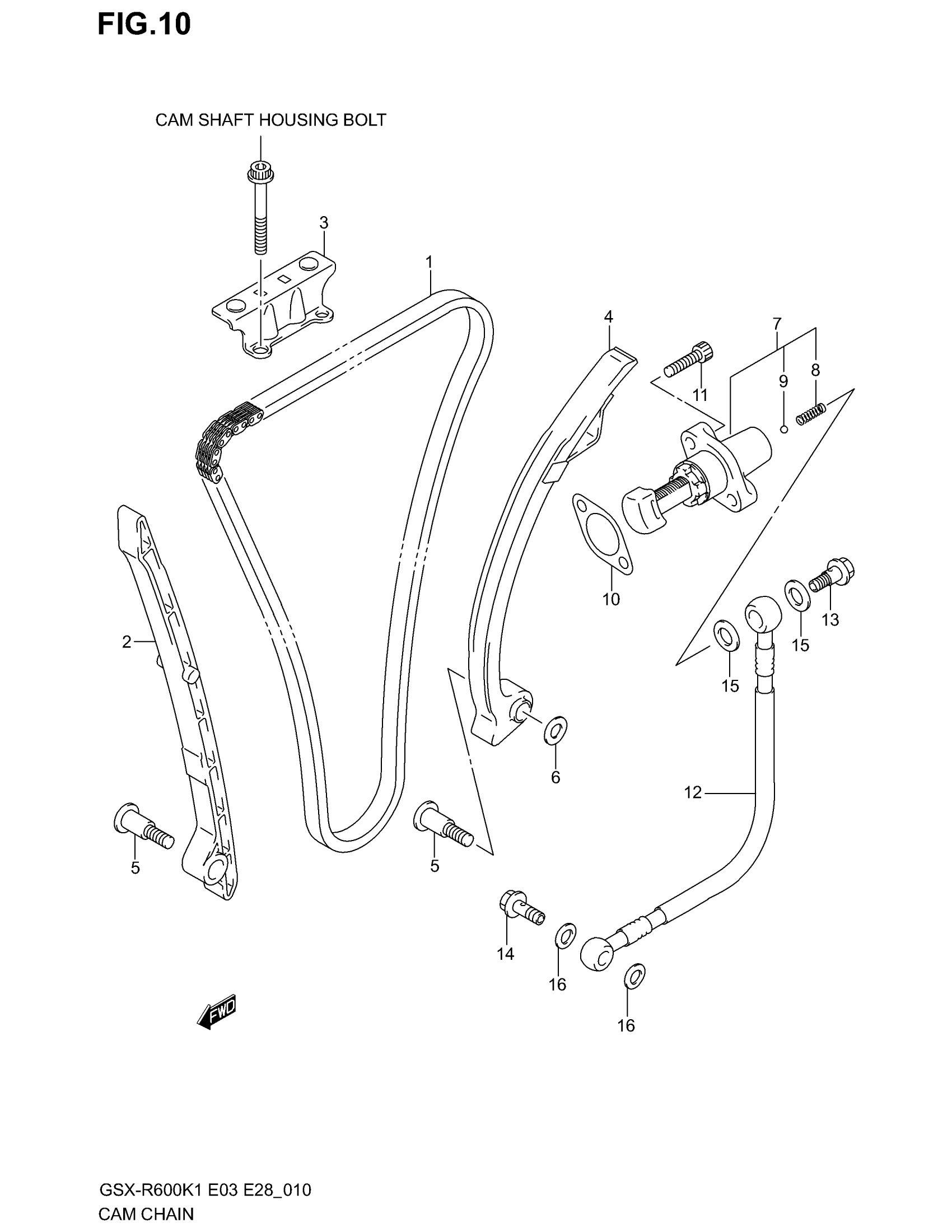

Suzuki GSX-R600 (2003) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

$142.65

2

GUIDE, CAM CHAIN NO.1

12771-39F00

Unavailable

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$22.80

4

TENSIONER, CAM CHAIN

12811-39F00

Unavailable

5

BOLT

12812-26B02

$8.43

6

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 9

12830-39F00

$177.65

8

SPRING

12831-39F00

$5.77

9

BALL

12839-35F00

$5.00

10

GASKET, ADJUSTER

12837-35F00

$3.65

11

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

12

HOSE, TENSIONER ADJUSTER OIL

12835-35F10

Unavailable

13

BOLT, OIL HOSE UNION NO.1

12836-35F00

Unavailable

14

BOLT This part replaces 12838-35F00.

12838-35F01

$14.77

15

GASKET, OIL HOSE NO.1 | MODEL K1

09168-12017

$1.95

15

GASKET, OIL HOSE NO.1 | MODEL K2/K3

09168-12019

$3.70

16

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65
