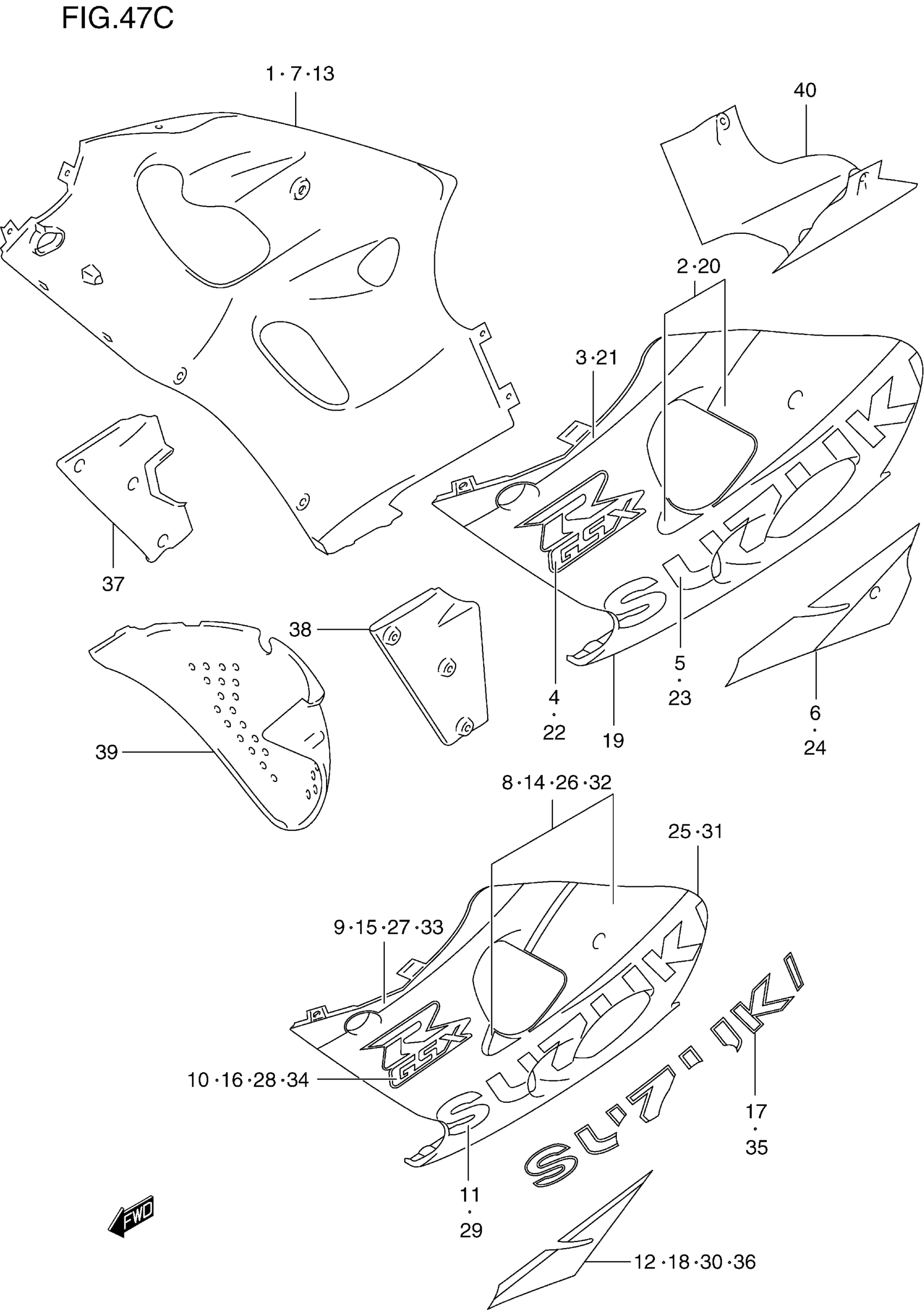

Suzuki GSX-R600 (2000) UNDER COWLING BODY (MODEL Y) Diagram

#

Description
Price

1

COWLING, UNDER RH (BLUE) | FOR L99; Includes Item(s) 2 - 6

94407-34E60-1LE

Unavailable

2

TAPE SET, RH (WHITE)

68180-34E60-0JW

Unavailable

3

TAPE, UPPER RH (WHITE)

68185-34E80-0JW

Unavailable

4

EMBLEM "GSXR"

68182-34E10-CG2

Unavailable

5

EMBLEM, "SUZUKI" (WHITE)

68181-34E10-0JW

Unavailable

6

TAPE, RH

68185-34E90-K3G

Unavailable

7

COWLING, UNDER RH (BLACK) | FOR BP9; Includes Item(s) 8 - 12

94407-34E70-Y7L

Unavailable

8

TAPE SET, RH

68180-34E70-CH2

Unavailable

9

TAPE, UPPER RH (YELLOW)

68185-34E80-Y9H

Unavailable

10

EMBLEM, "GSXR"

68182-34E20-CH1

Unavailable

11

EMBLEM, "SUZUKI" (SILVER)

68181-34E10-Y2D

Unavailable

12

TAPE, RH

68185-34EA0-CH2

Unavailable

13

COWLING, UNDER RH (BLACK) | FOR CB3; Includes Item(s) 14 - 18

94407-34E90-Y7L

Unavailable

14

TAPE SET, RH

68180-34E70-CR3

Unavailable

15

TAPE, UPPER RH (BLUE)

68185-34E80-Y7E

Unavailable

16

EMBLEM, "GSXR"

68182-34E20-CH1

Unavailable

17

EMBLEM, "SUZUKI"

68181-34E30-M7P

Unavailable

18

TAPE, RH

68185-34EA0-CR3

Unavailable

19

COWL ASSY,UNDER | FOR L99; Includes Item(s) 20 - 24 This part replaces 94408-34E60-1LE.

94408-34E61-1LE

Unavailable

20

TAPE SET, LH (WHITE)

68190-34E60-0JW

Unavailable

21

TAPE, UPPER LH (WHITE)

68195-34E80-0JW

Unavailable

22

EMBLEM, "GSXR"

68182-34E10-CG2

Unavailable

23

EMBLEM, "SUZUKI" (WHITE)

68191-34E10-0JW

Unavailable

24

TAPE, LH

68195-34E90-K3G

Unavailable

25

COWLING, UNDER LH (BLACK) | FOR BP9; Includes Item(s) 26 - 30

94408-34E70-Y7L

Unavailable

26

TAPE SET, LH

68190-34E70-CH2

Unavailable

27

TAPE, UPPER LH (YELLOW)

68195-34E80-Y9H

Unavailable

28

EMBLEM, "GSXR"

68182-34E20-CH1

Unavailable

29

EMBLEM, "SUZUKI" (SILVER)

68191-34E10-Y2D

Unavailable

30

TAPE, LH

68195-34EA0-CH2

Unavailable

31

COWLING, UNDER LH (BLACK) | FOR CB3; Includes Item(s) 32 - 36

94408-34E90-Y7L

Unavailable

32

TAPE SET, LH

68190-34E70-CR3

Unavailable

33

TAPE, UPPER LH (BLUE)

68195-34E80-Y7E

Unavailable

34

EMBLEM, "GSXR"

68182-34E20-CH1

Unavailable

35

EMBLEM, "SUZUKI"

68191-34E30-M7P

Unavailable

36

TAPE, LH

68195-34EA0-CR3

Unavailable

37

CLWLING, INNER RH

94461-33E00

Unavailable

38

COWLING, INNER LH

94462-33E01

Unavailable

39

COWLING, CENTER

94498-33E01

Unavailable

40

COWLING, UNDER REAR (BLUE) | FOR L99

94606-33E00-Y3P

Unavailable

40

COWL ASSY,UNDER | FOR BP9,CB3 This part replaces 94606-33E00-Y7L.

94606-33E01-Y7L

Unavailable
