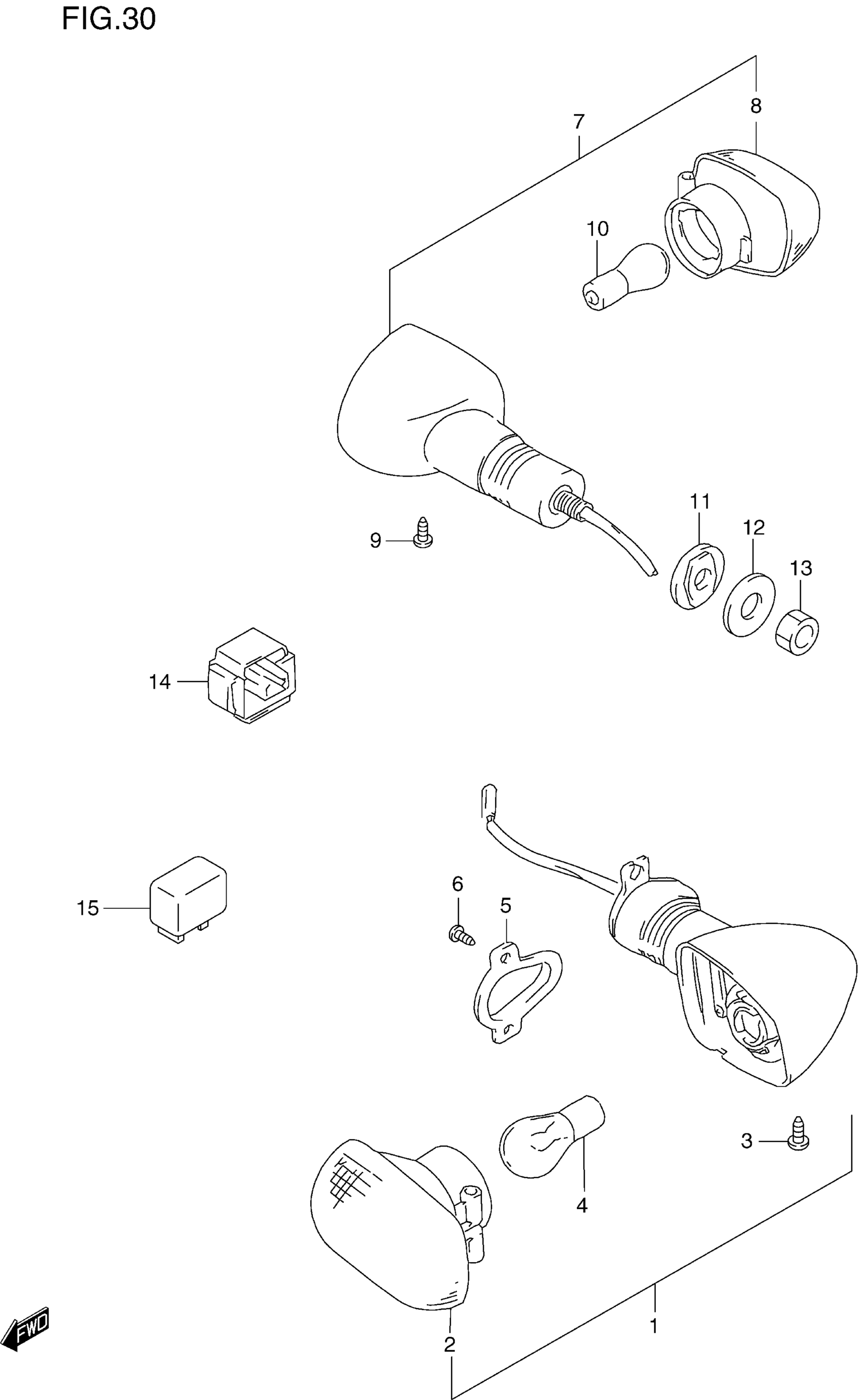

Suzuki GSX-R600 (2000) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH This part replaces 35601-33E00.

35601-33E30

$96.77

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 4 This part replaces 35602-33E00.

35602-33E30

$85.04

2

LAMP UNIT

35610-33E00

$32.75

3

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

4

BULB (12V,21W)

09471-12045

$3.27

5

PLATE, FRONT

35629-33E00

$5.98

6

SCREW This part replaces 03511-05103.

03511-0510A

$1.71

7

LAMP ASSY, REAR TURNSIGNAL,RH

35603-33E30

$111.78

7

LAMP ASSY, REAR TURNSIGNAL,LH | Includes Item(s) 8 - 10

35604-33E30

$111.78

8

LAMP UNIT

35610-33E00

$32.75

9

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

10

BULB (12V,21W)

09471-12045

$3.27

11

SPACER, REAR TURNSIGNAL

35695-17C00

$4.03

12

WASHER, REAR

09160-10501

$2.33

13

NUT This part replaces 08310-00103.

08310-0010A

$1.84

14

RELAY ASSY | MODEL V This part replaces 38610-26E00.

38610-26E01

$58.97

15

RELAY ASSY,TURNSIGNAL LAMP | MODEL W/X/Y This part replaces 38610-03F00.

38610-03F01

$87.08
