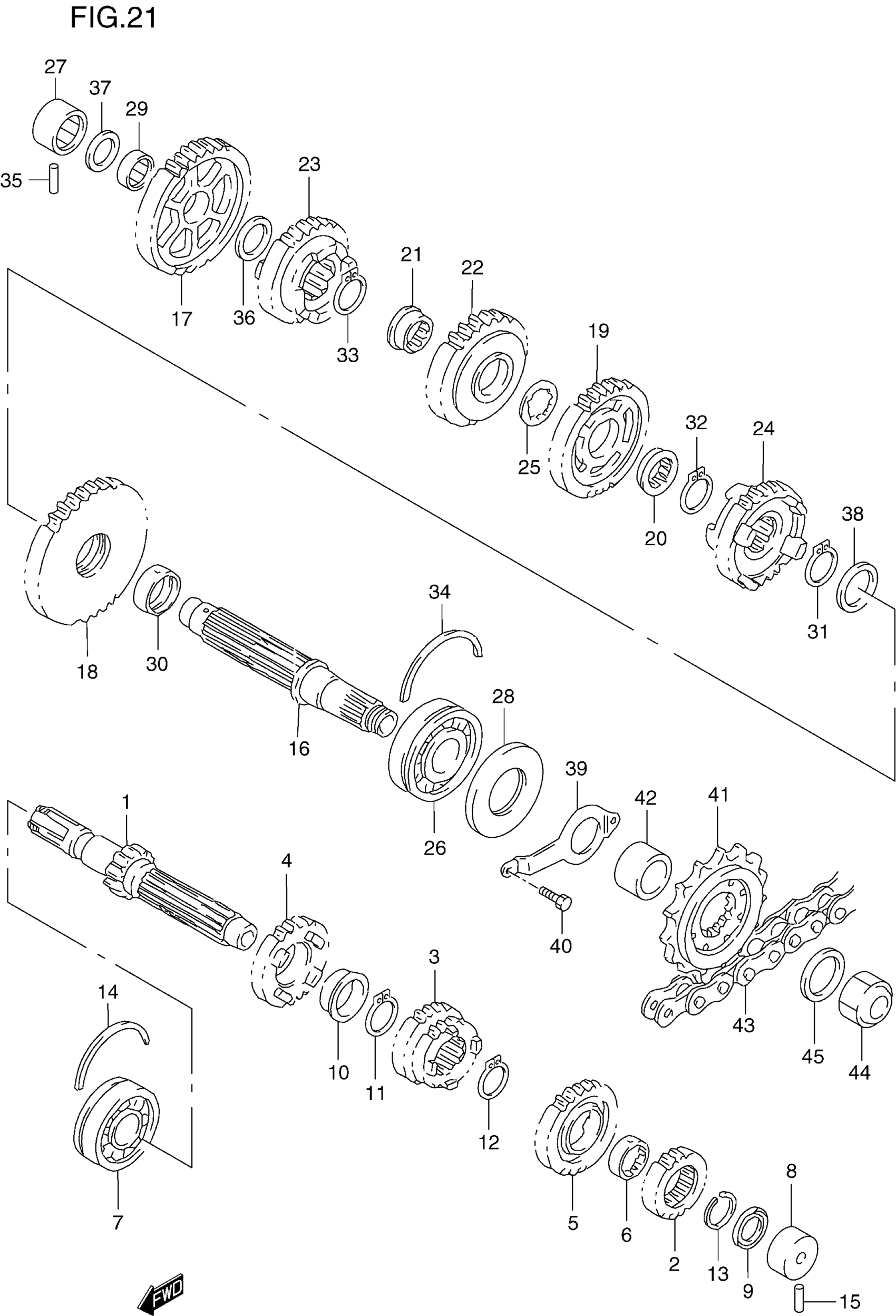

Suzuki GSX-R600 (2000) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:15)

24120-33E00

Unavailable

2

GEAR, 2ND DRIVE (NT:17) | MODEL V

24221-33E00

Unavailable

2

GEAR, 2ND DRIVE (NT:19) | MODEL W/X/Y

24221-34E00

Unavailable

3

GEAR, 3RD & 4TH (NT:20/21) | MODEL V

24231-33E00

Unavailable

3

GEAR, 3RD & 4TH (NT:20/21) | MODEL W/X/Y

24231-34E00

Unavailable

4

GEAR, 5TH DRIVE (NT:21) | MODEL V

24251-33E10

Unavailable

4

GEAR, 5TH DRIVE (NT:21) | MODEL W/X/Y

24251-34E00

Unavailable

5

GEAR, 6TH DRIVE (NT:22) | MODEL V

24261-33E10

Unavailable

5

GEAR, 6TH DRIVE (NT:22) | MODEL W/X/Y

24261-34E00

Unavailable

6

BUSH, 6TH DRIVE GEAR

24262-17E10

Unavailable

7

BEARING, LH | 25X62X17 This part replaces 09262-25051.

09262-25105

$68.10

8

BEARING, CENTER SHAFT LH | MODEL V/W/X 20X34X17.5 This part replaces 09263-20082.

09263-20085

$76.72

8

BEARING, CNTR LH | MODEL Y 20X34X17.5

09263-20085

$76.72

9

SEAL, OIL (20X31.2X2.7)

09285-20006

$6.51

10

BUSH, 5TH DRIVE GEAR | 28X32X2

09301-28001

$19.93

11

CIRCLIP, 5TH DRIVE

09380-27001

$2.38

12

CIRCLIP, 6TH DRIVE

09380-27001

$2.38

13

CIRCLIP, 2ND DRIVE

09380-27004

$3.70

14

C RING, CNTR RH

09390-62012

$7.31

15

PIN, CNTR LH

04221-07209

$2.30

16

SHAFT, DRIVE

24131-33E00

Unavailable

17

GEAR, 1ST DRIVEN (NT:43) | MODEL V

24311-33E00

Unavailable

17

GEAR, 1ST DRIVEN (NT:43) | MODEL W/X/Y

24311-17E01

Unavailable

18

GEAR, 2ND DRIVEN (NT:35) | MODEL V

24321-33E00

Unavailable

18

GEAR, 2ND DRIVEN (NT:39) | MODEL W/X/Y

24321-34E00

Unavailable

19

GEAR, 3RD DRIVEN (NT:33) | MODEL V

24331-33E01

Unavailable

19

GEAR, 3RD DRIVEN (NT:33) | MODEL W/X/Y

24331-34E00

Unavailable

20

BUSH, 3RD DRIVEN GEAR

24332-17E10

Unavailable

21

BUSH, 4TH DRIVEN GEAR

24332-17E10

Unavailable

22

GEAR, 4TH DRIVEN (NT:30) | MODEL V

24341-33E01

Unavailable

22

GEAR, 4TH DRIVEN (NT:30) | MODEL W/X/Y

24341-34E00

Unavailable

23

GEAR, 5TH DRIVEN (NT:27) | MODEL V

24351-33E10

Unavailable

23

GEAR, 5TH DRIVEN (NT:27) | MODEL W/X/Y

24351-34E00

Unavailable

24

GEAR, 6TH DRIVEN (NT:26) | MODEL V

24361-33E10

Unavailable

24

GEAR, 6TH DRIVEN (NT:26) | MODEL W/X/Y

24361-34E00

Unavailable

25

WASHER, 3RD & 4TH DRIVEN

09167-27002

Unavailable

26

BEARING, DRIVE SHAFT,LH | 28X70X18

09262-28025

$150.62

27

BEARING, DRIVE SHAFT,RH | 20X34X20

09263-20040

$55.20

28

SEAL, DRIVE SHAFT,OIL | 36X70X6

09283-36008

$21.28

29

BUSH, 1ST DRIVEN GEAR | 22X26X9

09300-22008

$14.82

30

BUSH, 2ND DRIVEN GEAR | 28X32X9.5

09300-28003

Unavailable

31

CIRCLIP, 2ND DRIVEN GEAR

09380-27001

$2.38

32

CIRCLIP, 3RD DRIVEN GEAR

09380-27001

$2.38

33

CIRCLIP, 4TH DRIVEN GEAR

09380-27001

$2.38

34

C RING, DRIVE SHAFT,LH

09390-70001

$9.77

35

PIN, DRIVE SHAFT,RH

04221-07209

$2.30

36

WASHER, 1ST RH (20X34X1.0)

09181-20251

$2.79

37

WASHER, 1ST LH (22X34X1.0)

09181-22223

$3.12

38

WASHER, 2ND (28X38X1.0)

09181-28195

$4.77

39

RETAINER, DRIVE SHAFT

24751-33E10

Unavailable

40

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

41

SPROCKET, ENGINE (NT:16)

27510-20A10

$72.72

42

SPACER, ENGINE SPROCKET

27531-33E00

Unavailable

43

CHAIN ASSY,DRIV This part replaces 27600-32C10-108.

27600-32C90-108

$211.75

44

NUT, ENGINE SPROCKET

09159-20004

$15.67

45

WASHER (25X41X3)

09160-25009

$5.36
