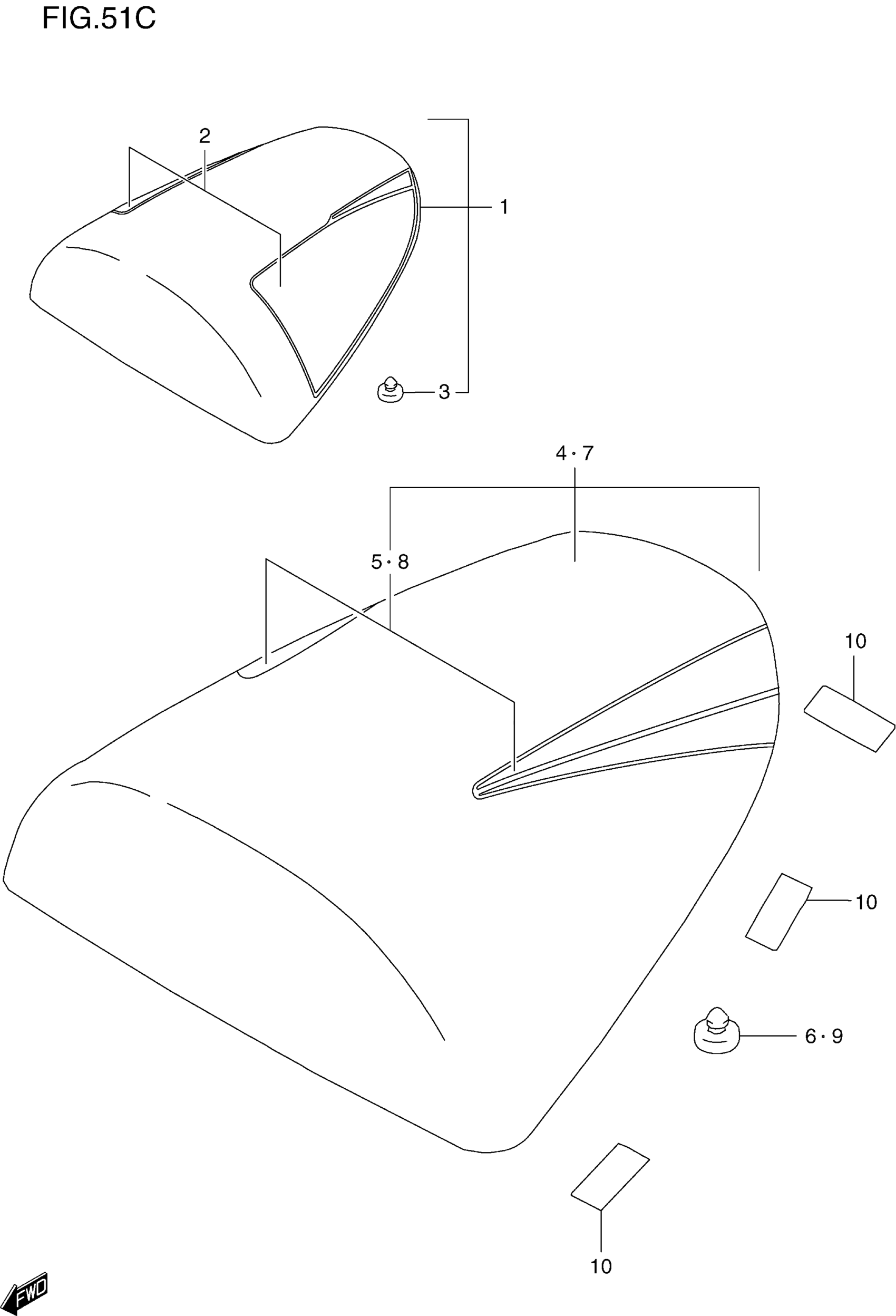

Suzuki GSX-R600 (2000) SEAT TAIL BOX (MODEL Y) Diagram

#

Description

Price

1

BOX ASSY, SEAT TAIL (BLACK) | FOR L99; Includes Item(s) 2 - 3

45500-34E40-019

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68160-34E40-CG3.

68160-34E41-CG3

Unavailable

3

CUSHION

09321-10002

$2.22

4

BOX ASSY, SEAT TAIL (BLACK) | FOR BP9; Includes Item(s) 5 - 6

45500-34E50-Y7L

Unavailable

5

TAPE SET, TAIL BOX

68160-34E50-M6N

Unavailable

6

CUSHION

09321-10002

$2.22

7

BOX ASSY, SEAT TAIL (BLACK) | E3,FOR CB3; Includes Item(s) 8 - 9

45500-34E50-Y9X

Unavailable

8

TAPE SET, TAIL BOX

68160-34E50-BF7

Unavailable

9

CUSHION

09321-10002

$2.22

10

PROTECTOR, COVER

45559-33E00

Unavailable
