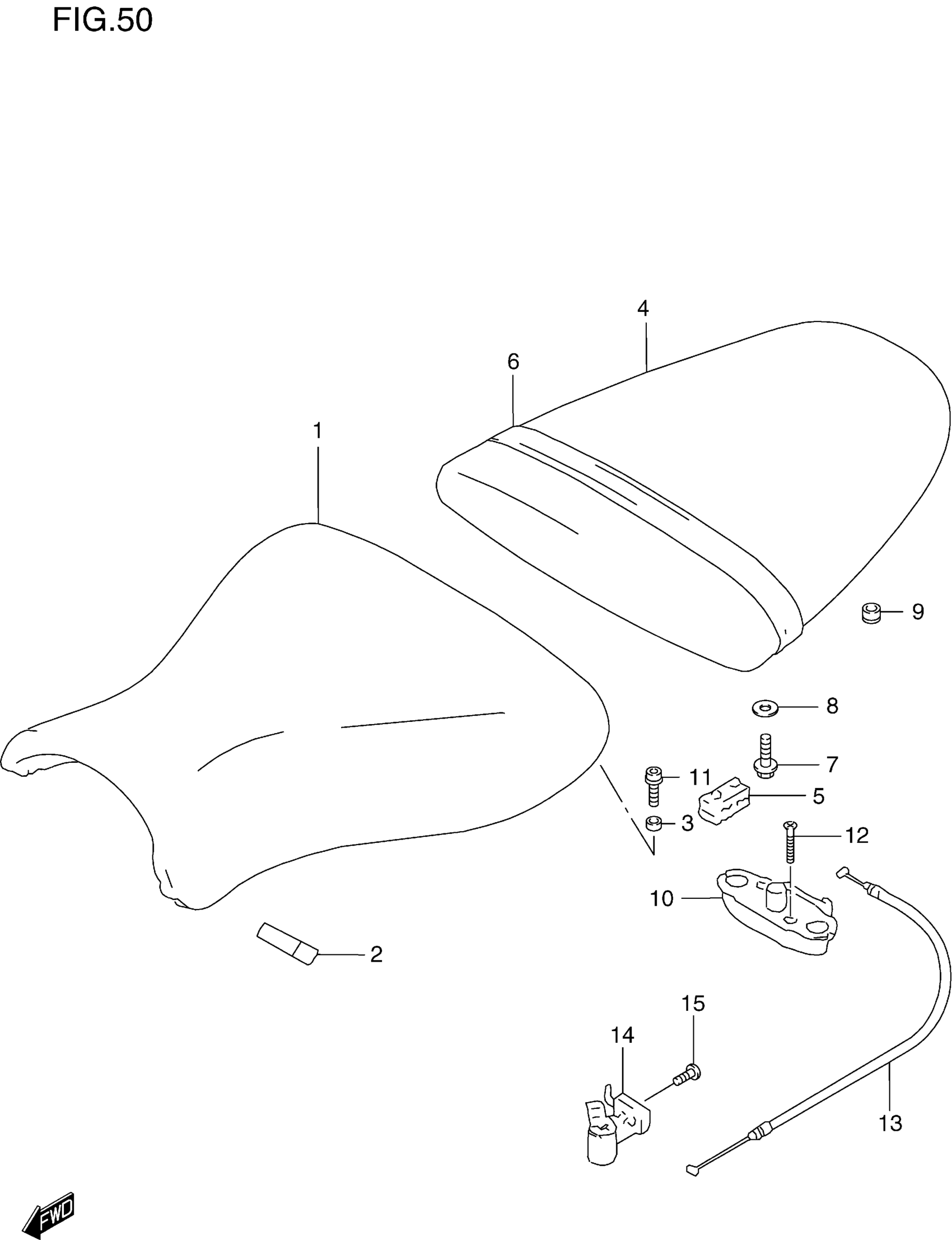

Suzuki GSX-R600 (2000) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 3

45100-33E20-R42

Unavailable

2

CUSHION

45149-31E00

$6.92

3

SPACER (6.5X10.5X6)

45112-33E00

$4.37

4

SEAT ASSY, PILLION (BLACK) | Includes Item(s) 5 - 9

45300-33E20-R42

Unavailable

5

CUSHION

45149-31300

$3.56

6

BAND ASSY, SEAT (BLACK)

45180-33E00-R42

Unavailable

7

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

CUSHION

45213-31300

$2.81

10

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

11

BOLT, FRONT (6X18)

09106-06064

$6.02

12

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

13

CABLE, SEAT LOCK

45280-17E00

Unavailable

14

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$78.33

15

SCREW This part replaces 02142-05103.

02142-0510B

$1.78
