2000 Suzuki GSX-R600 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

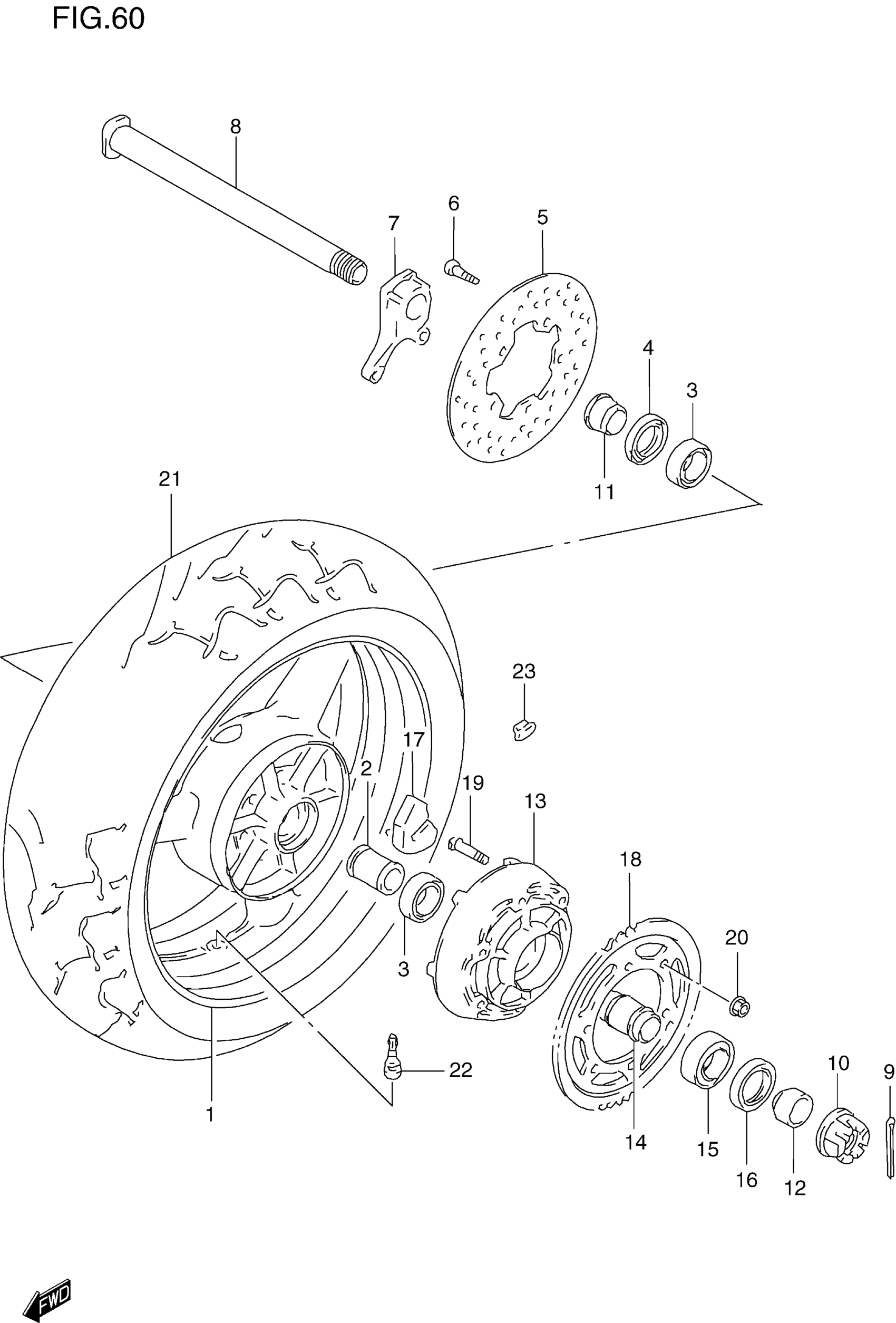

2000 Suzuki GSX-R600 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (17XMT5.50) (SILVER) (SILVER) (WHITE) | FOR G7Y,K4B,Y9H,BP9

64111-34E00-12R

1
Out of stock

1

WHEEL, REAR (17XMT5.50) (SILVER) | E3 FOR CB3

64111-34E00-12R

1
Out of stock

2

SPACER, HUB BEARING

64731-33E10

1
Out of stock

3

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

2
Out of stock

4

SEAL, RH (38X58X7)

09285-38001

1
Out of stock

5

DISC, REAR BRAKE

69211-33E00

1
Out of stock

6

BOLT (8X33) This part replaces 09106-08125.

09106-08148

5
Out of stock

7

BRACKET, REAR CALIPER

69721-33E00

1
Out of stock

8

AXLE, REAR

64711-33E30

1
Out of stock

9

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

10

NUT

09141-25001

1
Out of stock

11

SPACER, AXLE RH

64741-33E00

1
Out of stock

12

SPACER, AXLE LH

64751-33E00

1
Out of stock

13

DRUM, REAR SPROCKET

64611-33E02

1
Out of stock

14

RETAINER, SPROCKET DRUM

64733-33E00

1
Out of stock

15

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

1
Out of stock

16

SEAL (39X65X7)

09285-39001

1
Out of stock

17

ABSORBER, HUB SHOCK

64651-17E00

6
Out of stock

18

SPROCKET, REAR (NT:45) | MODEL V

64511-34E00

1
Out of stock

18

SPROCKET, REAR (NT:46) | MODEL W/X/Y

64511-34E10

1
Out of stock

19

BOLT (10X38)

09119-10059

6
Out of stock

20

NUT

08319-31107

6
Out of stock

21

TIRE, REAR 180/55 ZR17 (73W) (DUNLOP) 180/55 ZR17 (73W) 180/55 ZR17 (73W) (DUNLOP) | MODEL V

65110-34E00

1
Out of stock

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

23

BALANCER (10G)

55411-00A00

1
Out of stock

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

1
Out of stock
