2000 Suzuki GSX-R600 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

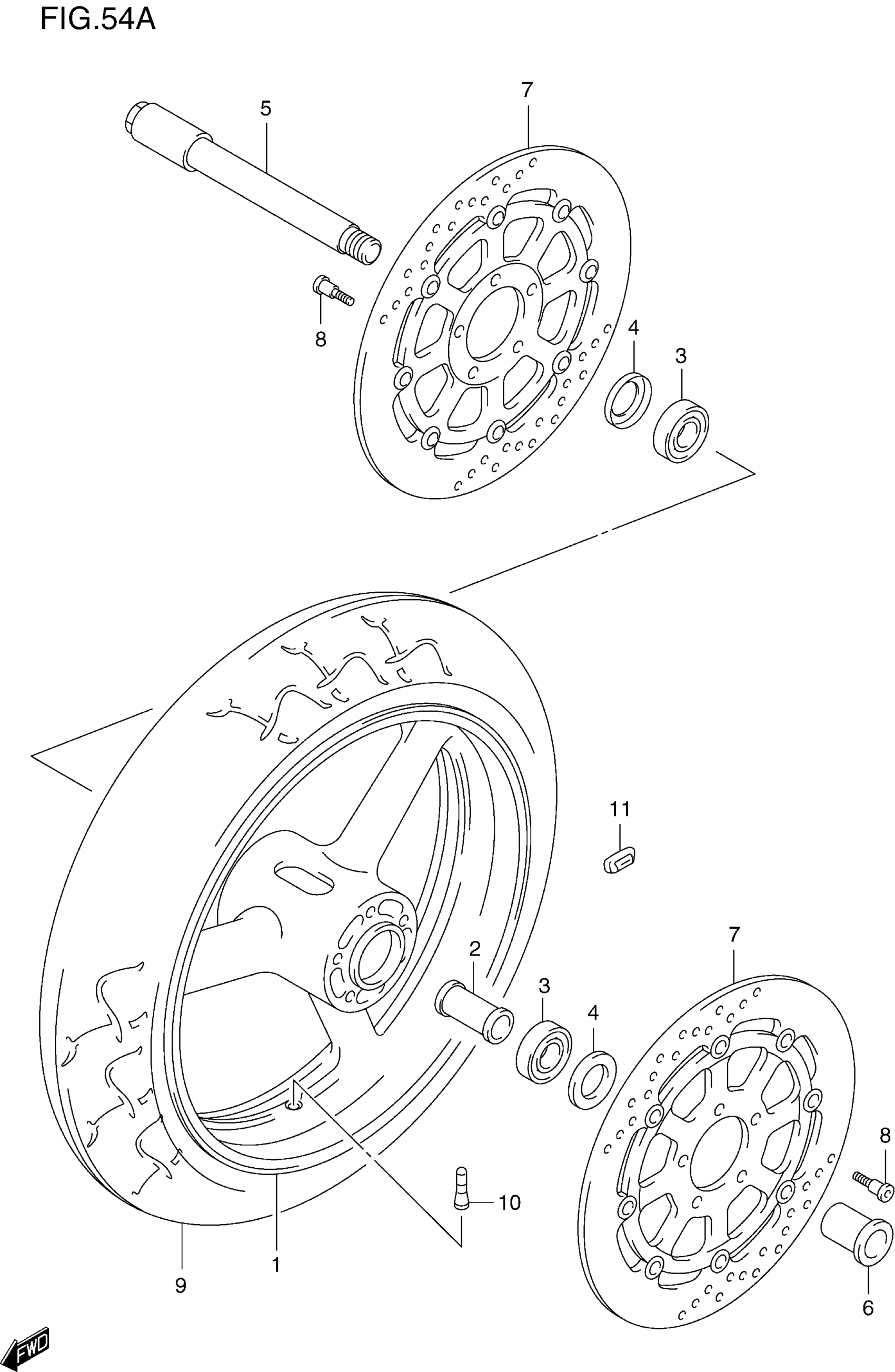

2000 Suzuki GSX-R600 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,FR,17M/CX | FOR BP9 This part replaces 54111-33E10-12R.

54111-33E11-12R

1
Out of stock

1

WHEEL,FR,17M/CX | E3 FOR CB3 This part replaces 54111-33E10-12R.

54111-33E11-12R

1
Out of stock

2

SPACER, HUB BEARING

54731-33E10

1
Out of stock

3

BEARING (25X52X15)

09262-25061

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT

54711-33E00

1
Out of stock

6

NUT, AXLE

54712-33E00

1
Out of stock

7

DISC, FRONT BRAKE (BLACK/SILVER)

59210-33E40

2
Out of stock

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

10
Out of stock

9

TIRE, FRONT 120/70 ZR17 (58W) (DUNLOP)

55110-34E20

1
Out of stock

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

11

BALANCER (10G)

55411-00A00

1
Out of stock

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

1
Out of stock
