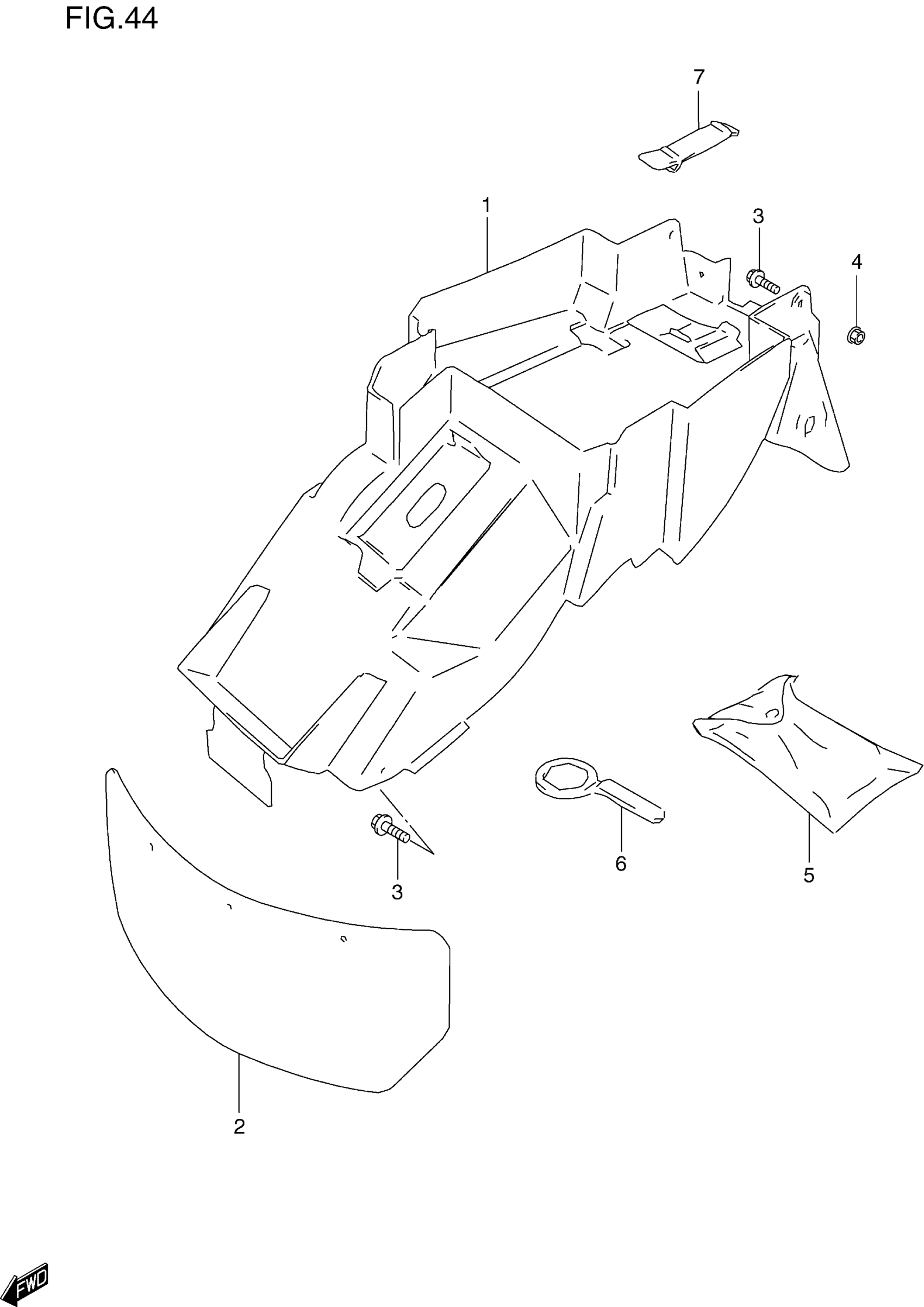

Suzuki GSX-R600 (2000) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR | MODEL V

63110-33E30

Unavailable

1

FENDER, REAR | MODEL W/X/Y

63110-33ED0

Unavailable

2

MUD GUARD, FRONT

63411-34E00

Unavailable

3

BOLT

09111-06066

$2.62

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

TOOL ASSY | MODEL V/W This part replaces 09800-21008.

09800-21065

Unavailable

5

TOOL ASSY | MODEL X/Y This part replaces 09800-21039.

09800-21089

$69.16

6

RING SPANNER, 36 | MODEL V/W

09817-00034

$24.52

7

BAND This part replaces 09462-00072.

09462-00094

$3.16
