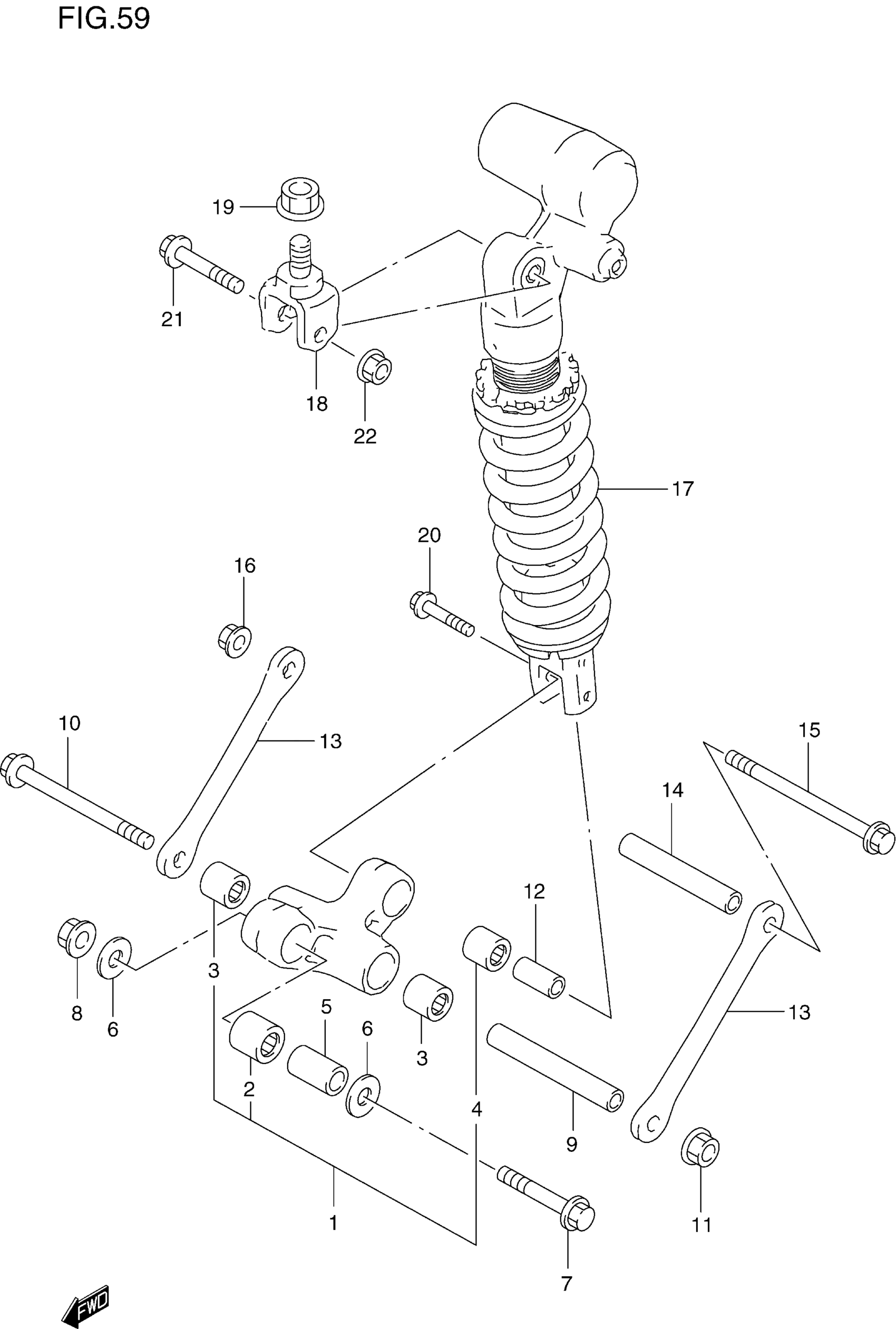

Suzuki GSX-R600 (2000) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-34820

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING This part replaces 09263-17039.

09263-17058

$16.23

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

WASHER

08211-12301

$2.03

7

BOLT, FRONT (12X72)

62658-33E00

Unavailable

8

NUT This part replaces 08319-31128.

08319-3112A

$3.76

9

SPACER, CENTER (12X17X94)

62626-33D00

$21.19

10

BOLT, CENTER (12X124)

62621-33D00

$28.62

11

NUT This part replaces 08319-31128.

08319-3112A

$3.76

12

SPACER, REAR (10X17X30)

62684-40A10

$12.15

13

ROD, REAR CUSHION LEVER

62641-33E00

Unavailable

14

SPACER, ROD (12X17X94)

62626-33D00

$21.19

15

BOLT, ROD (12X124)

62621-33D00

$28.62

16

NUT This part replaces 08319-31128.

08319-3112A

$3.76

17

ABSORBER ASSY, REAR SHOCK | MODEL V

62100-34E10

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL W/X/Y This part replaces 62100-34E20.

62100-34E21

Unavailable

18

BRACKET, ABSORBER

62993-33E11

Unavailable

19

NUT

09159-20006

$27.12

20

BOLT, LOWER (10X44)

09103-10049

$7.63

21

BOLT, UPPER (10X54)

09103-10101

$4.00

22

NUT

08319-31107

$2.73
