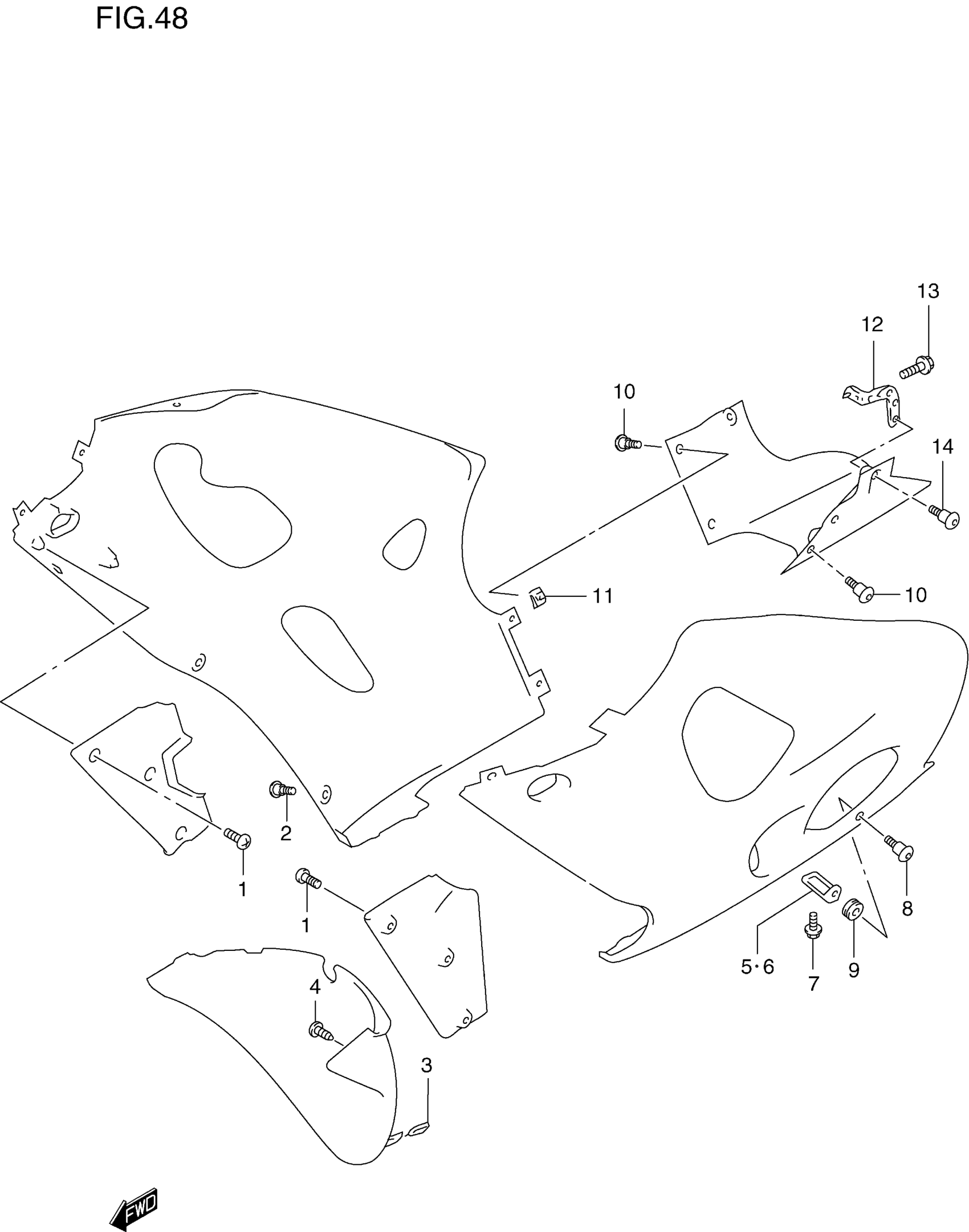

Suzuki GSX-R600 (2000) INSTALLATION PARTS Diagram

#

Description
Price

1

SCREW This part replaces 03541-05123.

03541-0512A

$1.41

2

SCREW, CENTER COWL

09139-05054

$3.93

3

NUT COWL | MODEL V/W/X This part replaces 94484-32B00.

94484-24F00

$3.79

3

NUT COWL | MODEL Y

94484-24F00

$3.79

4

SCREW This part replaces 03541-05123.

03541-0512A

$1.41

5

BRACKET, UNDER RH This part replaces 94533-33E00.

94533-33E01

$7.97

6

BRACKET, UNDER LH This part replaces 94534-33E00.

94534-33E01

$8.43

7

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

8

SCREW This part replaces 09139-06087.

09139-06126

$3.75

9

CUSHION

09320-09016

$2.01

10

SCREW, COWL JOINT

09139-05054

$3.93

11

NUT COWL | MODEL V/W/X This part replaces 94484-32B00.

94484-24F00

$3.79

11

NUT COWL | MODEL Y

94484-24F00

$3.79

12

BRACKET, REAR COWL

94540-33E00

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

14

SCREW, REAR COWL

09139-05054

$3.93
