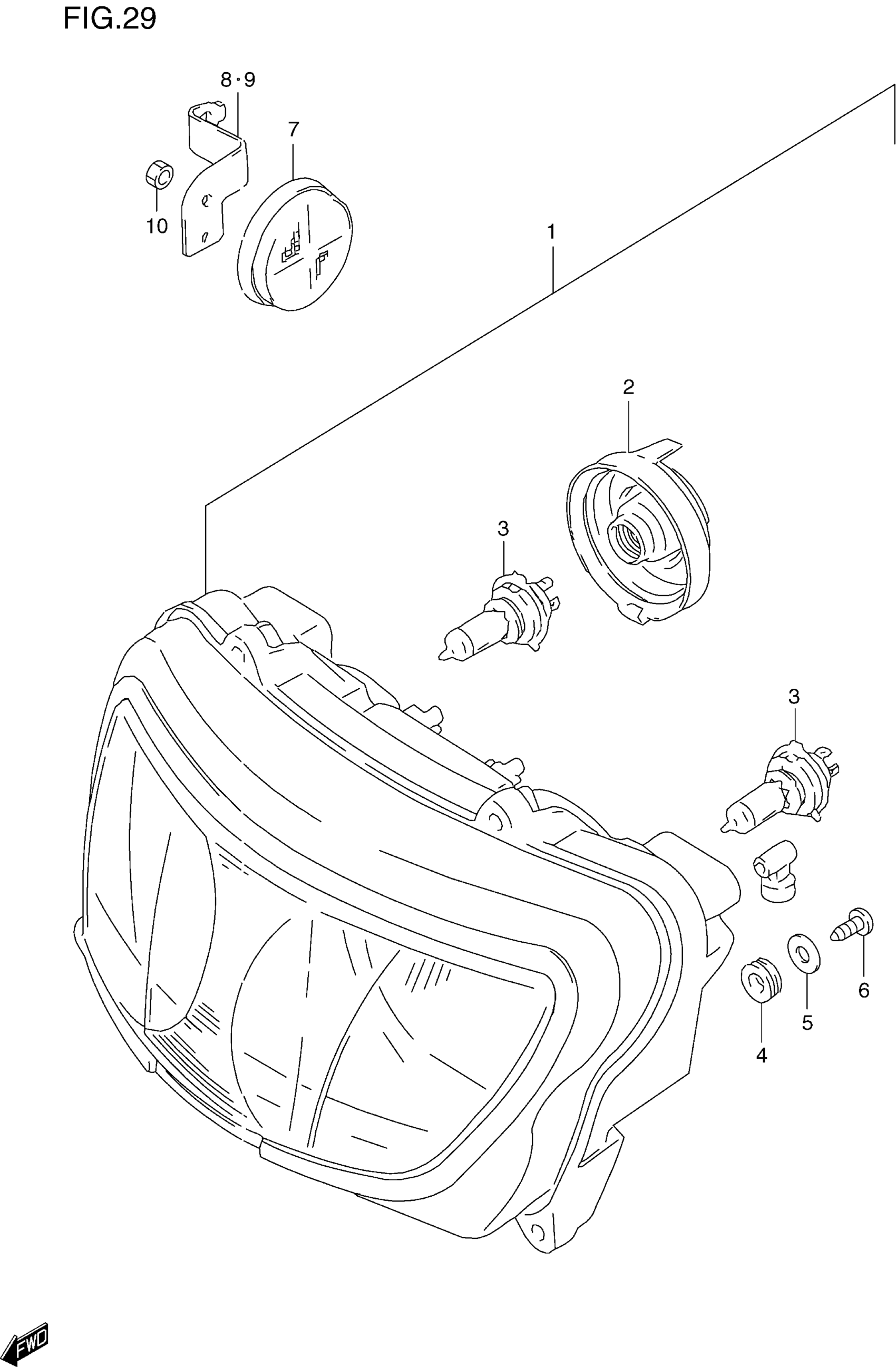

Suzuki GSX-R600 (2000) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2

35100-33E02-999

Unavailable

2

COVER, SOCKET

35125-74F00

$17.28

3

BULB (12V,55/50W)

09471-12163

Unavailable

4

CUSHION, HEADLAMP

35137-33E00

$3.65

5

WASHER (5.5X18X1) | MODEL V This part replaces 09160-05003.

09160-05045

$1.93

5

WASHER (5.5X18X1) | MODEL W/X/Y

09160-05045

$1.93

6

SCREW This part replaces 03511-05163.

03511-0516A

$1.86

7

REFLEX-REFLECTOR ASSY

35950-14A00

$16.94

8

BRACKET, FRONT SIDE RR RH

35956-17D00

Unavailable

9

BRACKET, FRONT SIDE RR LH

35957-17D00

Unavailable

10

NUT This part replaces 08310-00053.

08310-0005A

$1.84
