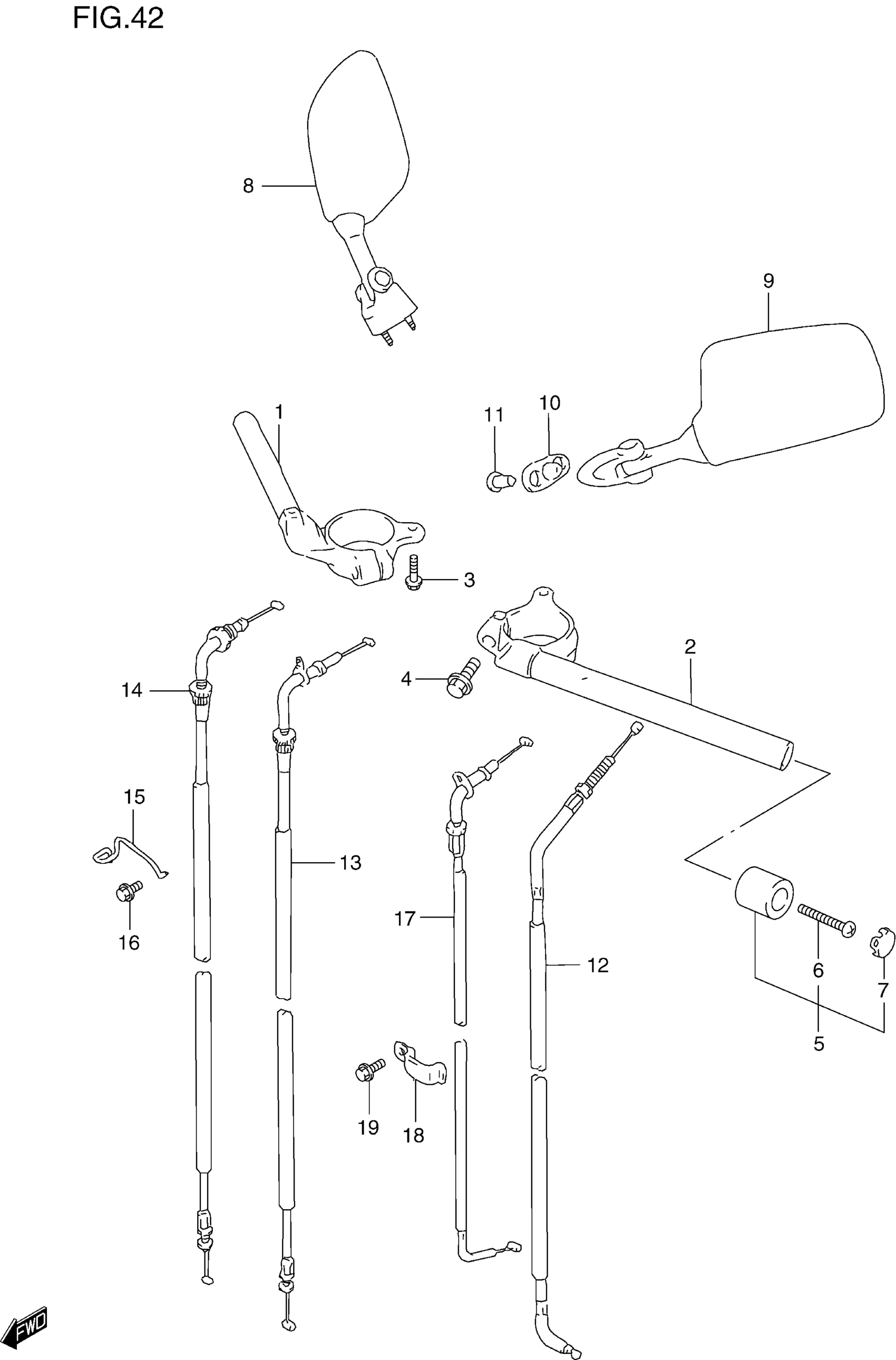

Suzuki GSX-R600 (2000) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-33E10

Unavailable

2

HANDLEBAR, LH

56151-33E10

Unavailable

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

BOLT, HANDLEBAR

09103-08269

$2.71

5

BALANCER SET,HN | MODEL V/W/X This part replaces 56200-33841.

56200-33844

Unavailable

5

BALANCER SET,HN | MODEL Y; Includes Item(s) 6 - 7 This part replaces 56200-33842.

56200-33844

Unavailable

6

SCREW This part replaces 02122-06403.

02122-0640A

$2.83

7

.CAP This part replaces 56279-33E00.

56279-33E01

$3.48

8

MIRROR ASSY, REAR VIEW RH

56500-33E00

Unavailable

9

MIRROR ASSY, REAR VIEW LH

56600-33E00

Unavailable

10

CUSHION

94576-22D00

$5.44

11

NUT

56619-17C00

$7.72

12

CABLE ASSY, CLUTCH

58200-33E01

$31.17

13

CABLE ASSY, THROTTLE NO.1

58300-33E00

Unavailable

14

CABLE ASSY, THROTTLE NO.2

58300-33E10

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 58621-33E00.

58621-33E0V

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

CABLE, STARTER

58410-33E01

$47.00

18

CLAMP This part replaces 09403-10307.

09403-10328

$1.98

19

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
