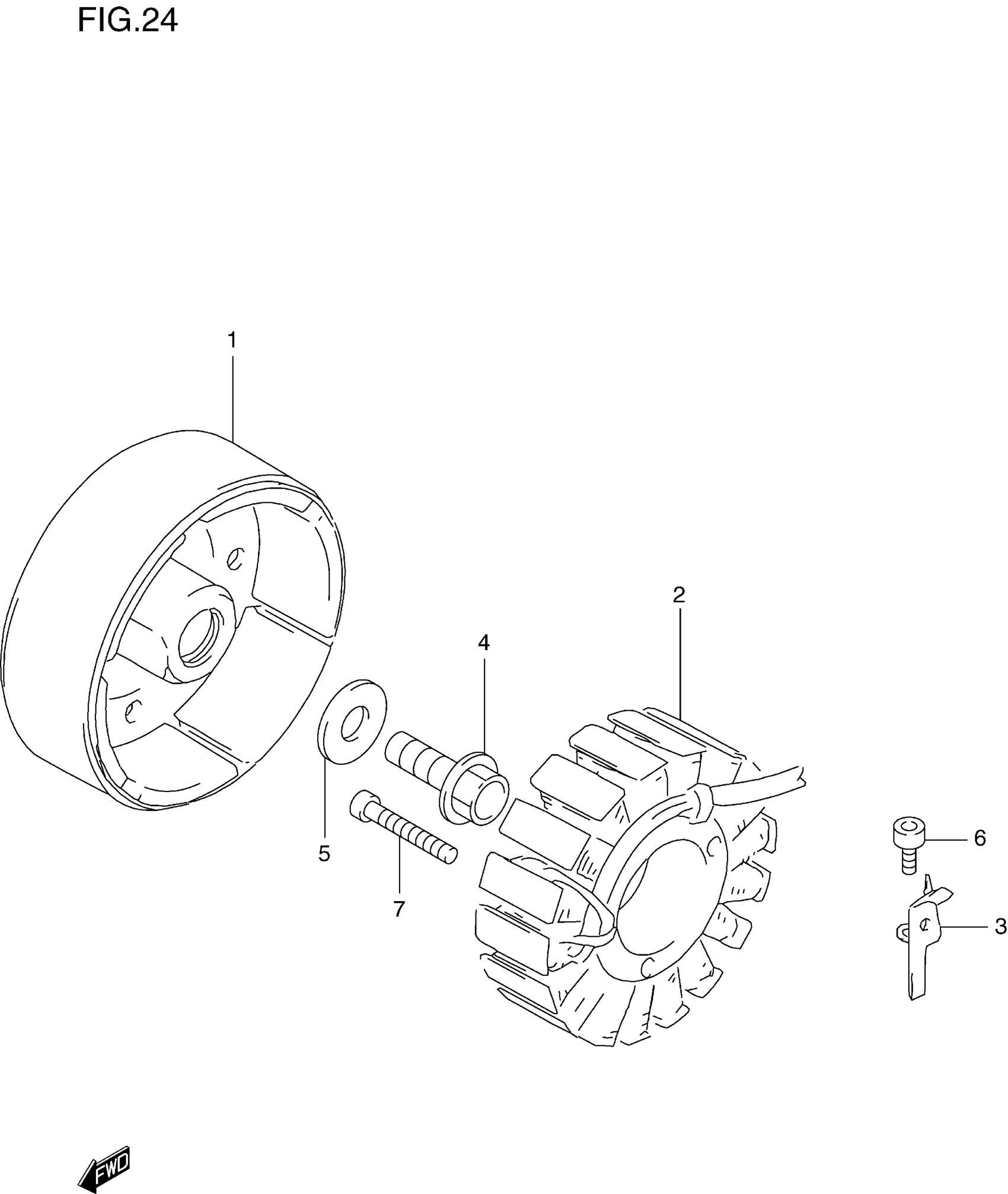

Suzuki GSX-R600 (2000) GENERATOR Diagram

#

Description

Price

1

ROTOR

31402-33E00

Unavailable

2

STATOR ASSY

31401-33E00

Unavailable

3

CLAMP, MAG LEAD

32371-33E00

$5.52

4

BOLT (12X30)

09103-12028

$6.70

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT, NO.3 | ~F.NO.2103774 This part replaces 07130-06103.

07130-0610B

$3.21

6

BOLT | F.NO.2103775~ This part replaces 07130-06123.

07130-0612A

$2.50

7

BOLT | ~F.NO.2103774 This part replaces 07130-06353.

07130-0635B

$3.37

7

BOLT, STATOR (6X35) | F.NO.2103775~

09106-06088

$4.15
