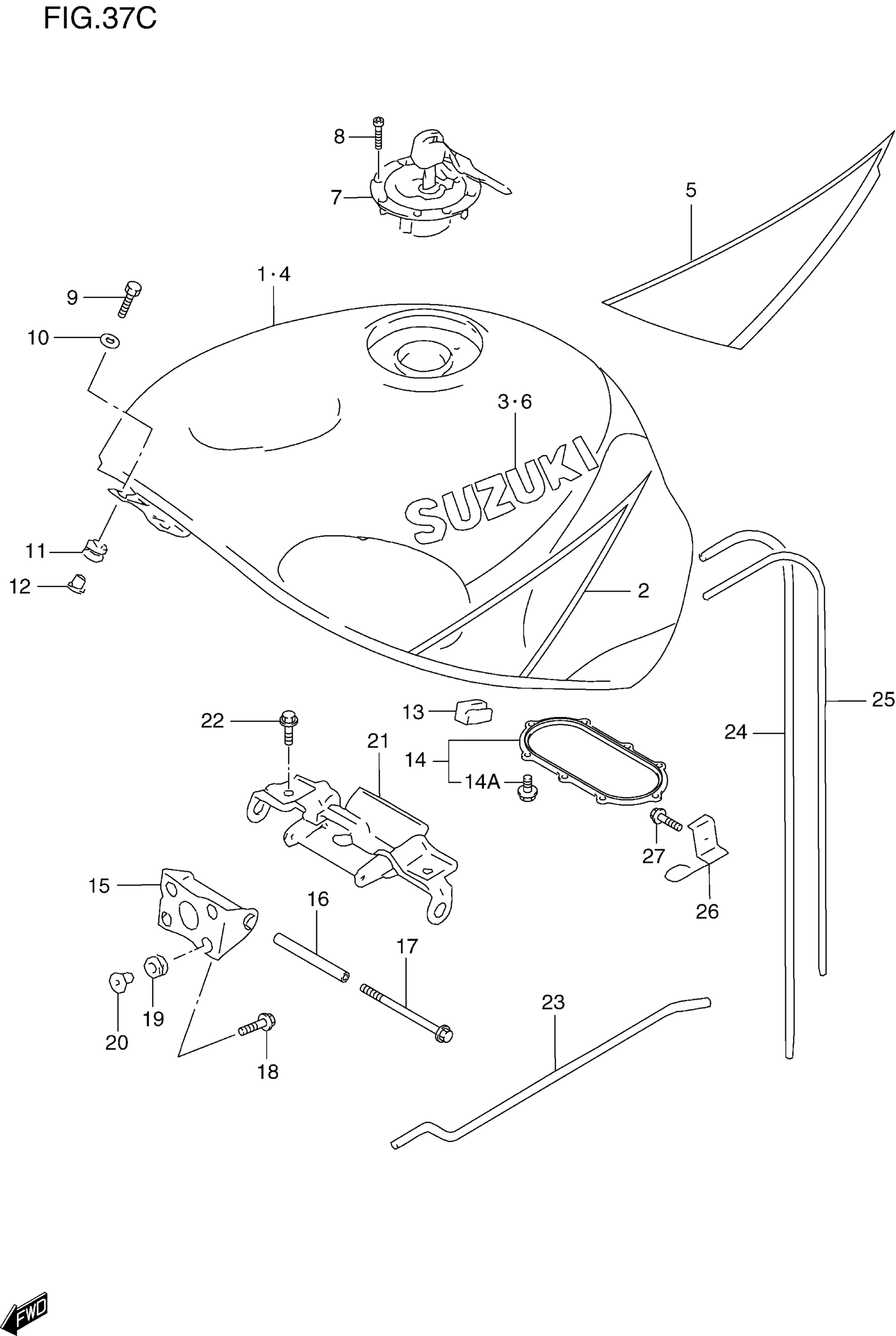

Suzuki GSX-R600 (2000) FUEL TANK (MODEL Y) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-34EC0-L99

Unavailable

1

TANK ASSY, FUEL | E33; Includes Item(s) 2 - 3

44100-34ED0-L99

Unavailable

2

TAPE SET, FUEL TANK (BLUE)

68110-34E40-1LE

Unavailable

3

EMBLEM (WHITE) This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

4

TANK ASSY, FUEL (YELLOW) | FOR BP9

44100-34EE0-Y9H

Unavailable

4

TANK ASSY, FUEL (BLUE) | FOR CB3

44100-34EE0-Y7E

Unavailable

4

TANK ASSY, FUEL (YELLOW) | E33 FOR BP9

44100-34EF0-Y9H

Unavailable

4

TANK ASSY, FUEL (BLUE) | E33 FOR CB3; Includes Item(s) 5 - 6

44100-34EF0-Y7E

Unavailable

5

TAPE SET, FUEL TANK | FOR Y9H

68110-34E50-M6N

Unavailable

5

TAPE SET, FUEL TANK | FOR Y7E

68110-34E50-BF7

Unavailable

6

EMBLEM (BLACK) | FOR Y9H This part replaces 68111-12C00-Y7L.

68111-12C30-Y7L

Unavailable

6

NO DESCRIPTION AVAILABLE | FOR Y7E This part replaces 68111-12C00-Y2D.

68111-12C30-Y2D

Unavailable

7

CAP SET,FUEL TA This part replaces 44200-33820.

44200-33821

$273.13

7

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

8

BOLT, CAP

09106-05017

$2.83

9

BOLT, FRONT

09139-06029

$5.36

10

WASHER

09160-06084

$1.78

11

CUSHION

09320-09009

$4.64

12

SPACER

09169-06062

$2.50

13

CUSHION,FUEL TA This part replaces 44541-33E00.

44541-33E01

$8.83

14

GASKET SET,FUEL | Includes Item(s) 14A This part replaces 44590-02820.

44590-02821

$47.20

14A

BOLT This part replaces 15211-02F00..

09103-05017

$2.86

15

BRACKET,FUEL TA This part replaces 44530-33E00.

44530-33E01

Unavailable

16

SPACER, JOINT

44561-33E10

Unavailable

17

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

18

BOLT

09116-06152

$2.36

19

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

20

SPACER

09169-06062

$2.50

21

BRACKET, NO.2

44550-33E00

Unavailable

22

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

23

STAY, FUEL TANK

44574-33E01

$15.45

24

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

25

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

26

GUIDE COMP,DRAI This part replaces 44480-33E00.

44480-33E0V

$10.89

27

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
