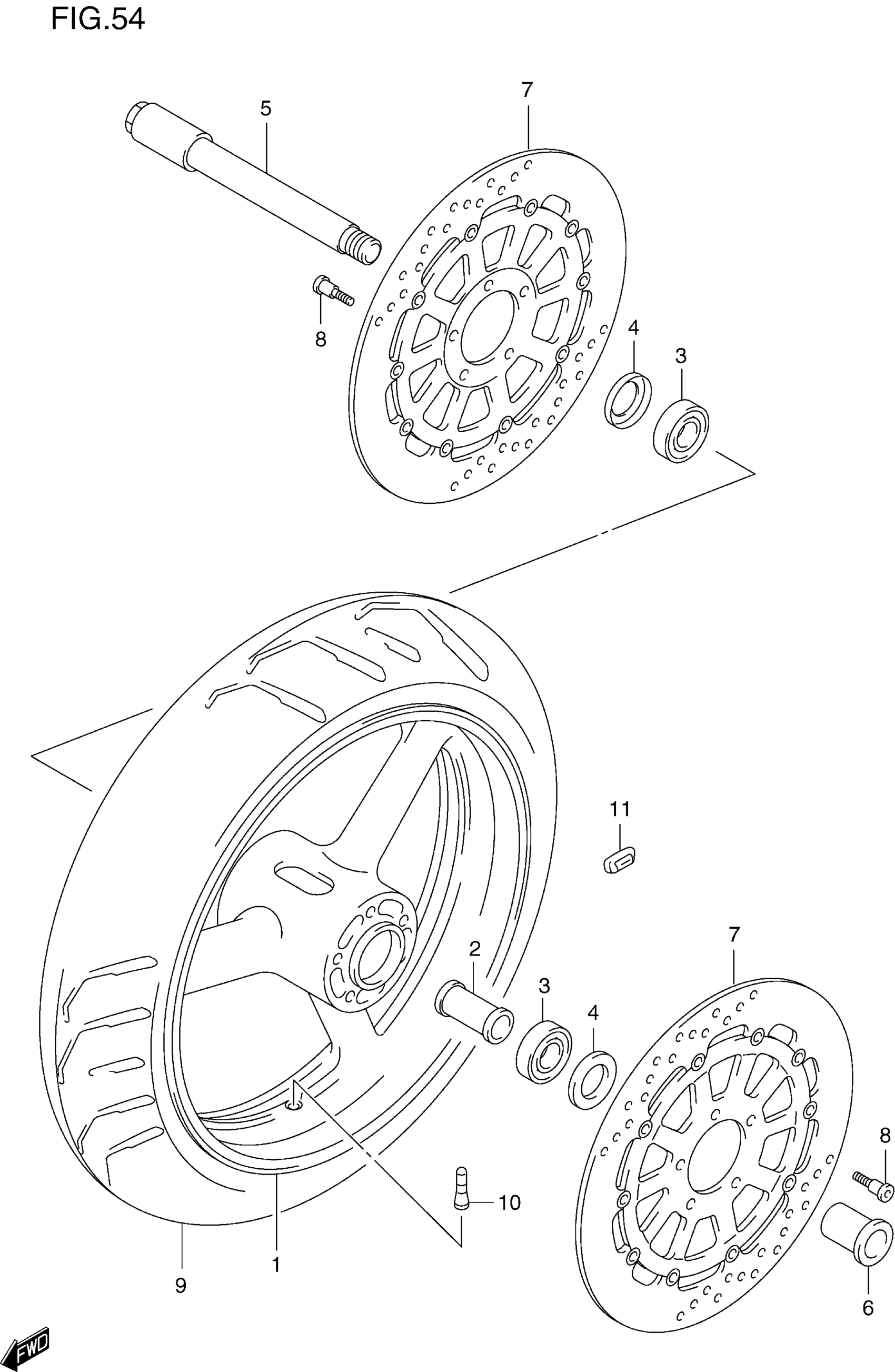

Suzuki GSX-R600 (2000) FRONT WHEEL (MODEL V/W/X) Diagram

#

Description
Price

1

WHEEL,FR,17M/CX | FOR G7Y,K4B,Y9H (r)54111-33E10-12R This part replaces 54111-33E00-12R.

54111-33E11-12R

Unavailable

1

WHEEL,FR,17M/CX | FOR L99 (r)54111-33E10-28W This part replaces 54111-33E00-28W.

54111-33E11-28W

Unavailable

2

SPACER, HUB BEARING

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-33E00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC, FRONT BRAKE (BLACK/SILVER) (HOUSING PIN 10 PIECE) (BLACK/SILVER) (BLACK/SILVER) (HOUSING PIN 8 PIECE) | MODEL V

59210-33E10

Unavailable

8

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

9

TIRE, FRONT 120/70 ZR17 (58W) (DUNLOP) 120/70 ZR17 (58W) 120/70 ZR17 (58W) (DUNLOP) | MODEL V

55110-34E00

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G)

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05
