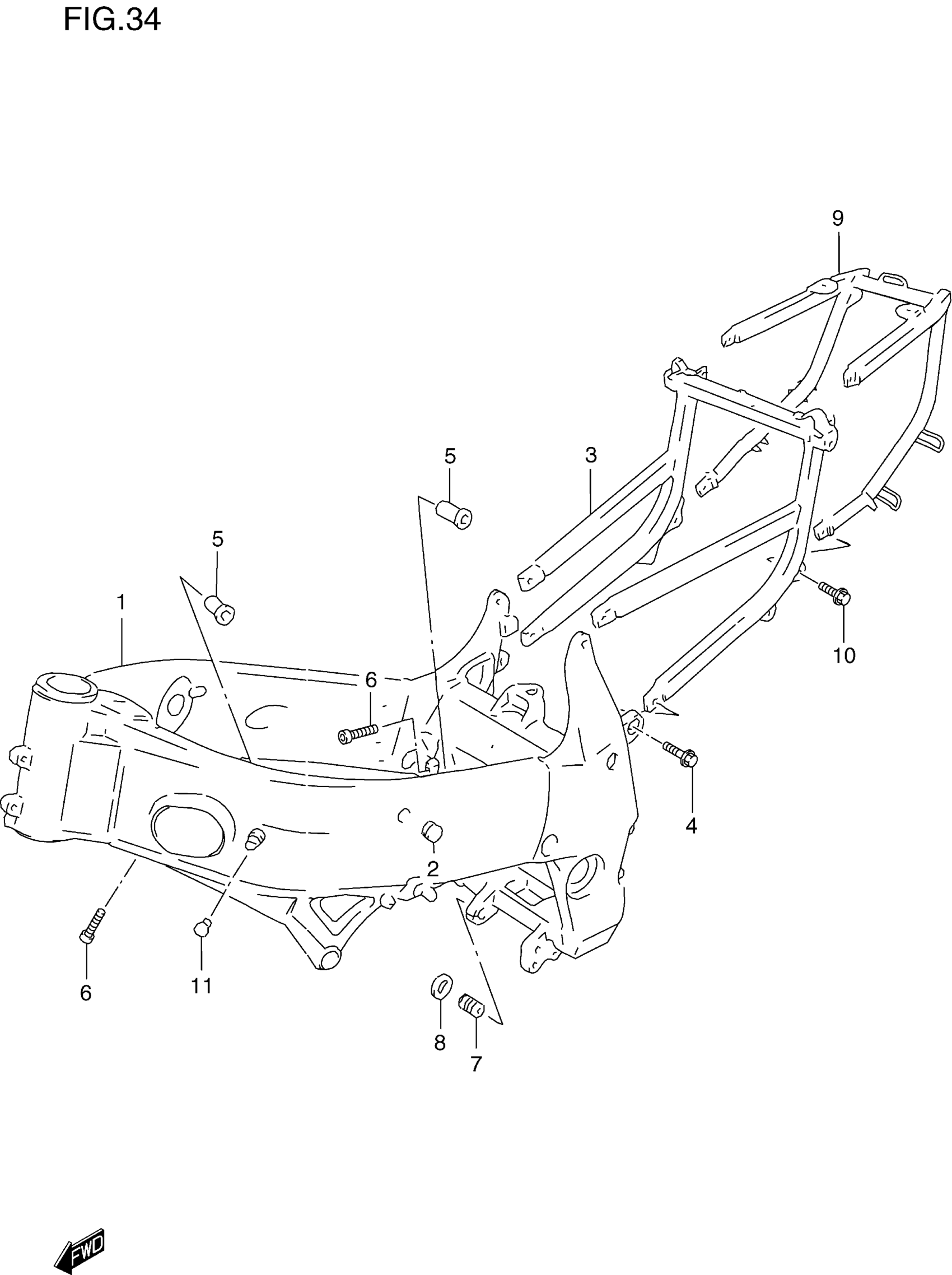

Suzuki GSX-R600 (2000) FRAME Diagram

#

Description
Price

1

FRAME | MODEL V

41100-34E00

Unavailable

1

FRAME | MODEL W/X/Y

41100-34E10

Unavailable

2

CAP,TANK RAIL This part replaces 43585-33E00.

43585-33E01

$4.25

3

RAIL, SEAT | MODEL V This part replaces 41200-33E00.

41200-33E20

Unavailable

3

RAIL, SEAT | MODEL W/X/Y

41200-33E20

Unavailable

4

BOLT, SEAT RAIL | MODEL V This part replaces 59199-33E00.

09103-10296

$6.44

4

BOLT, SEAT RAIL | MODEL W/X/Y

09103-10296

$6.44

5

SPACER, ENGINE MOUNT This part replaces 41911-33E00.

41911-40F01

$22.56

6

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

7

BOLT, CRANKCASE ADJUST | MODEL V This part replaces 41921-33E10.

41921-33E11

$49.42

7

BOLT, CRANKCASE ADJUST | MODEL W/X/Y

41921-33E11

$49.42

8

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$21.97

9

GRIP, REAR | MODEL V This part replaces 43980-33E00.

43980-33E20

Unavailable

9

GRIP, REAR | MODEL W/X/Y

43980-33E20

Unavailable

10

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

11

PLUG This part replaces 09250-06001.

09250-06005

$2.15
