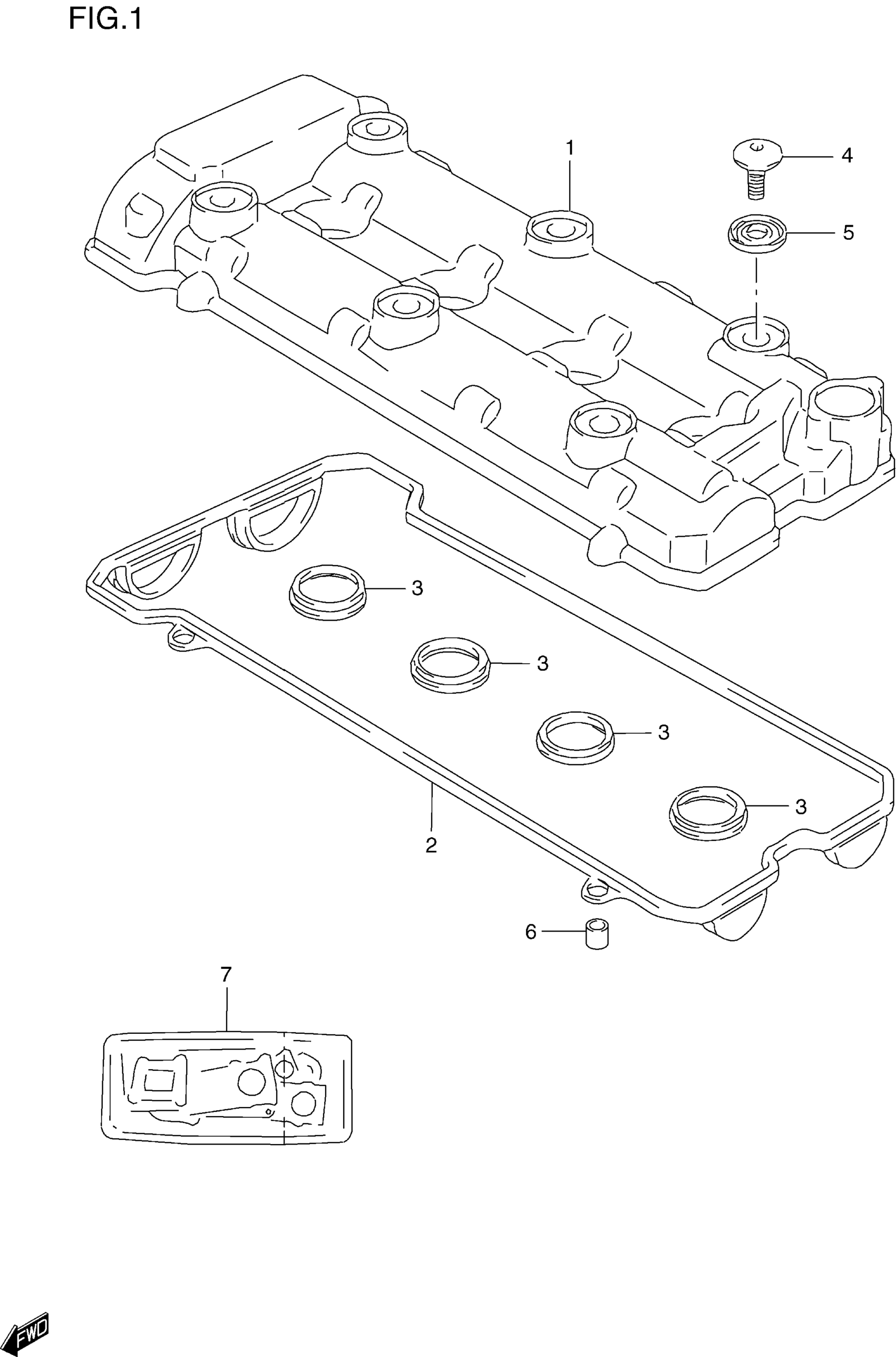

Suzuki GSX-R600 (2000) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-33E01

Unavailable

2

GASKET, HEAD COVER NO.1

11173-33E00

$60.38

3

GASKET, HEAD COVER NO.2

11178-33E00

$6.20

4

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

5

WASHER

09161-11008

$4.49

6

PIN

09206-08001

$1.78

7

GASKET SET | MODEL V/W NOT INCLUDE 2ND AIR GASKET This part replaces 11400-34880.

11400-34882

Unavailable

7

GASKET SET | MODEL X/Y NOT INCLUDE 2ND AIR GASKET

11400-34882

Unavailable
