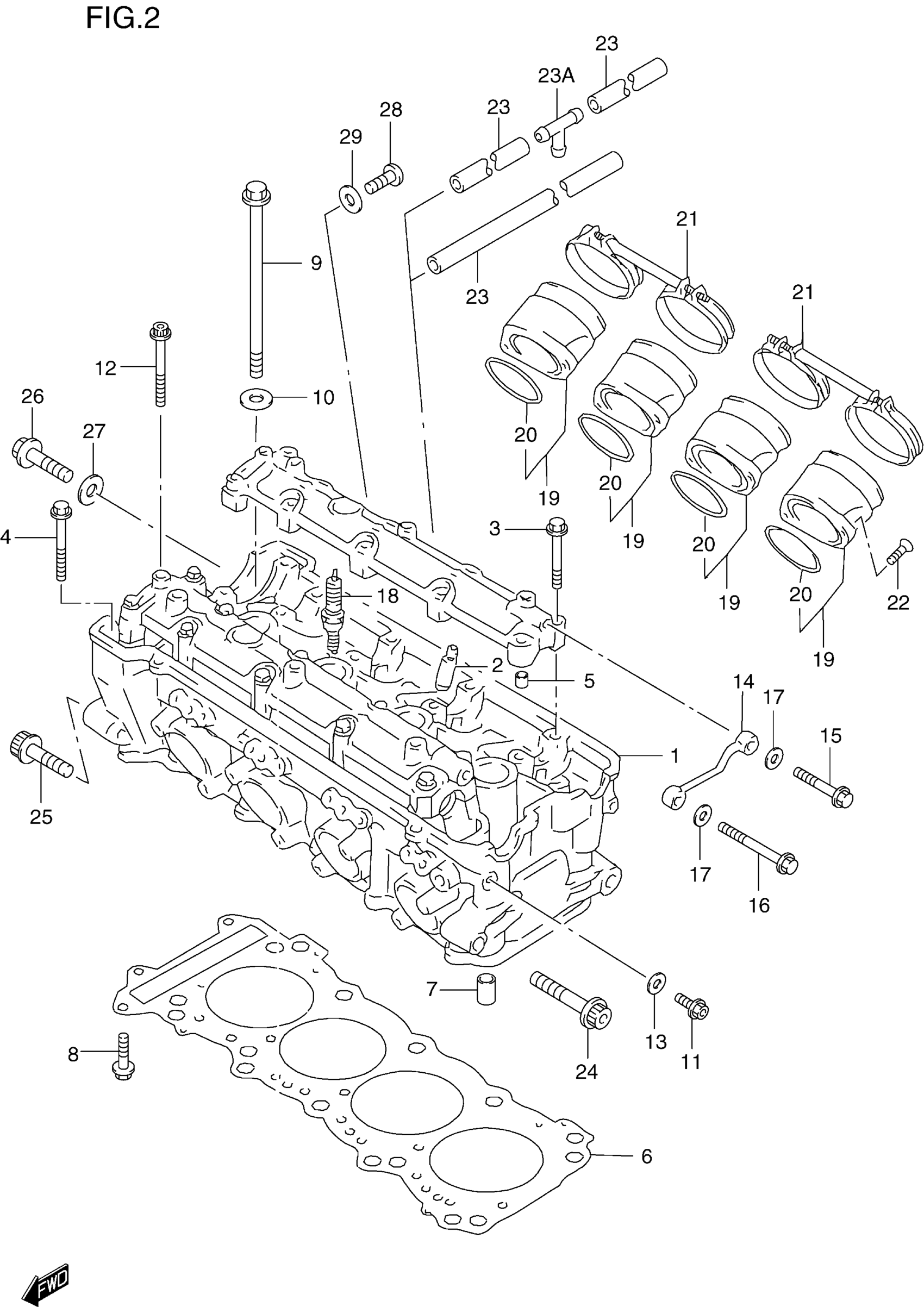

Suzuki GSX-R600 (2000) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD SET, CYLINDER | MODEL V

11100-34820

Unavailable

1

HEAD SET, CYLINDER | MODEL V E33 This part replaces 11100-34830.

11100-34850

Unavailable

1

HEAD SET, CYLINDER | MODEL W/X/Y

11100-34840

Unavailable

1

HEAD SET, CYLINDER | MODEL W/X/Y E33; Includes Item(s) 2 - 5

11100-34850

Unavailable

2

GUIDE, VALVE

11115-18D72

$34.63

3

BOLT (6X39)

09103-06026

$1.98

4

BOLT (6X45)

09103-06165

$3.03

5

PIN

09206-08007

$2.60

6

GASKET, CYLINDER HEAD | MODEL V/W This part replaces 11141-34E00.

11141-34E01

Unavailable

6

GASKET, CYLINDER HEAD | MODEL X/Y

11141-34E01

Unavailable

7

PIN

04211-11169

$1.78

8

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

9

BOLT (10X160)

09103-10272

$15.32

10

WASHER

09160-10082

$1.61

11

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

12

BOLT, RECTIFIER This part replaces 07120-06503.

07120-0650B

$3.70

13

GASKET

09168-06023

$2.35

14

PIPE,OIL This part replaces 11131-33E00.

11131-33E01

$46.70

15

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

16

BOLT This part replaces 01550-06453.

01550-0645A

$2.41

17

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

18

PLUG SPARK (CR9E)

09482-00458

$6.47

18

SPARK PLUG (DENSO,U27ESR-N)

09482-00459

$6.09

18

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

$6.73

18

SPARK PLUG (NGK,CR10E) | OPT

09482-00460

$6.47

18

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

$6.09

18

SPARK PLUG (DENS0,U31ESR-N) | OPT

09482-00461

$12.62

19

PIPE ASSY,INTAK | Includes Item(s) 20 This part replaces 13101-34E00.

13101-34E01

$39.62

20

O RING (D:2.4,ID:44)

09280-44007

$11.98

21

CLAMP, INTAKE PIPE | MODEL V/W/X This part replaces 13170-34E00.

13170-34E02

$29.27

21

CLAMP, INTAKE PIPE | MODEL Y This part replaces 13170-34E01.

13170-34E02

$29.27

22

SCREW,6X16 | MODEL V This part replaces 09120-06010.

09120-06010-XC0

$2.28

22

SCREW (6X16) | MODEL W/X/Y

09119-06092

$2.38

23

HOSE,5X10X600 | E3,E28 L:600(r)340 This part replaces 09355-50105-600.

44421-13ER0

$10.06

23

HOSE,5X10X600 | E33 L:600(r)160 This part replaces 09355-50105-600.

44421-13ER0

$10.06

23A

.JOINT,3 WAY | E33

09367-06002

$2.50

24

BOLT This part replaces 07120-10453.

07120-1045B

$4.41

25

BOLT This part replaces 07120-10553.

07120-1055B

$4.41

26

BOLT, CYL HEAD SIDE FACE

11161-33E00

$9.89

27

WASHER

11191-13E00

$4.54

28

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

29

GASKET

09168-06004

$1.49
