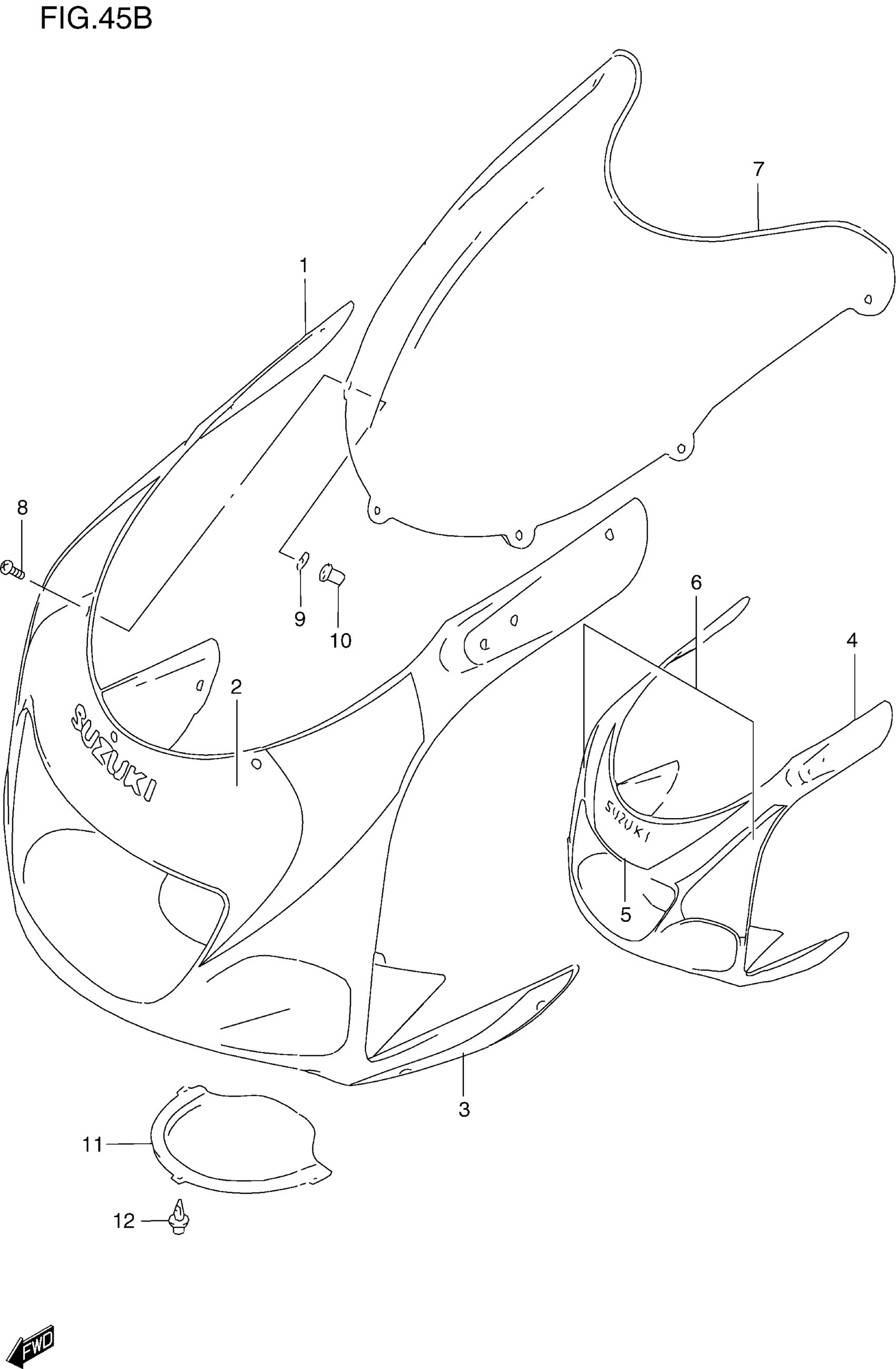

Suzuki GSX-R600 (2000) COWLING BODY (MODEL X) Diagram

COWLING ASSY, BODY (BLUE) | FOR L99; Includes Item(s) 2 - 3

94400-34E40-1LF

Unavailable

TAPE SET, BODY FRONT

68270-33E60-M6K

Unavailable

TAPE SET, BODY SIDE (WHITE)

68270-34E40-0JW

Unavailable

COWLING ASSY, BODY (YELLOW) | FOR Y9H; Includes Item(s) 5 - 6

94400-34E50-Y9H

Unavailable

TAPE, BODY FRONT

68275-34E10-M6V

Unavailable

TAPE SET, BODY SIDE

68270-34E50-M6T

Unavailable

WIND SCREEN

94611-33E10

Unavailable

SCREW

09139-05025

$2.05

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

NUT

09159-05019

$7.14

LID, LOWER

94419-33E01

Unavailable

CLIP (BLACK)

09409-06322-5PK

$3.10
