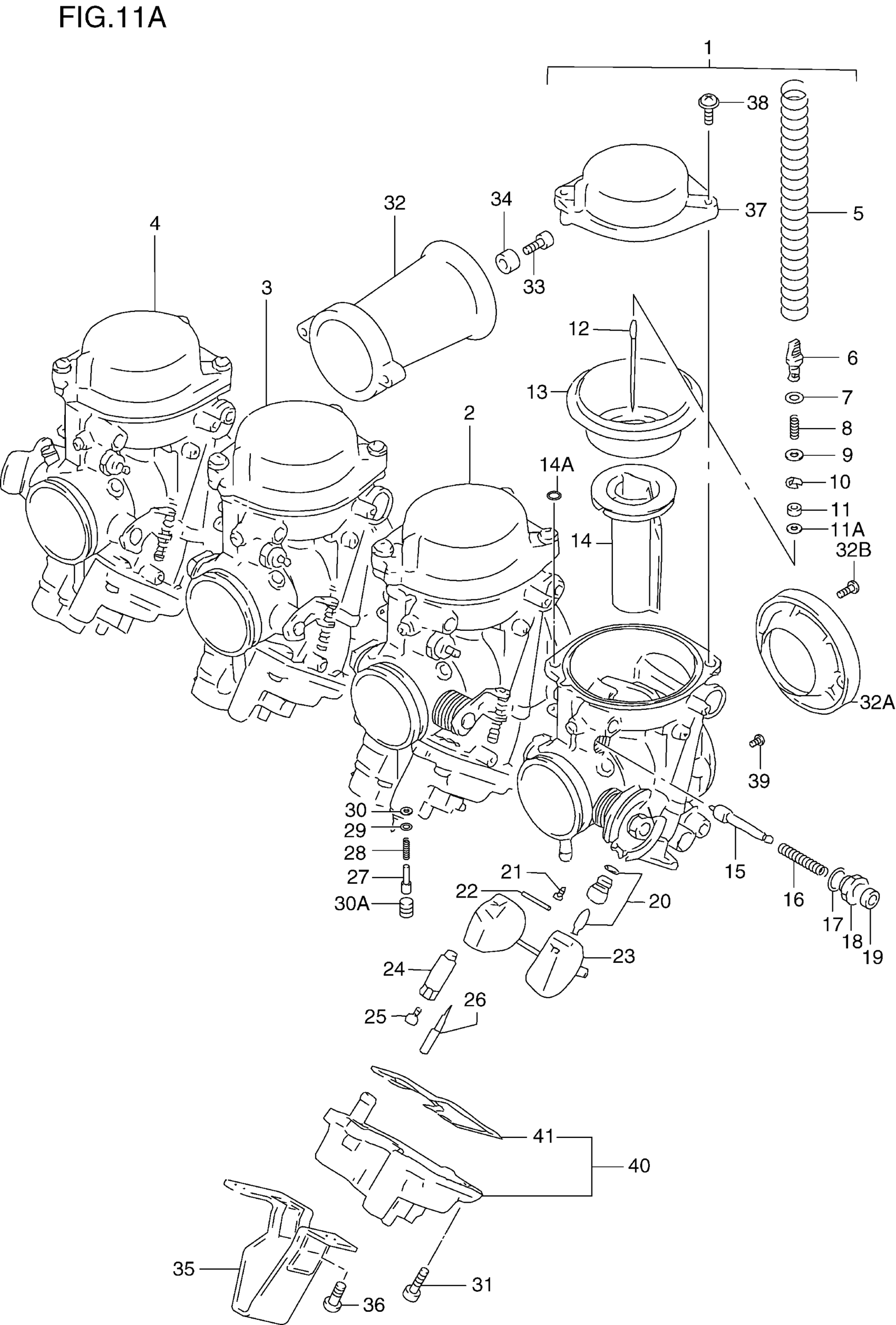

Suzuki GSX-R600 (2000) CARBURETOR (MODEL W/X/Y) Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL W

13201-34E70

Unavailable

1

CARBURETOR ASSY, LH | MODEL W E33

13201-34E90

Unavailable

1

CARBURETOR ASSY, LH | MODEL X/Y

13201-34EC0

Unavailable

1

CARBURETOR ASSY, LH | MODEL X/Y E33

13201-34EE0

Unavailable

2

CARBURETOR ASSY, ML | MODEL W

13202-34E70

Unavailable

2

CARBURETOR ASSY, ML | MODEL W E33

13202-34E90

Unavailable

2

CARBURETOR ASSY, ML | MODEL X/Y

13202-34EC0

Unavailable

2

CARBURETOR ASSY, ML | MODEL X/Y E33

13202-34EE0

Unavailable

3

CARBURETOR ASSY, MR | MODEL W

13203-34E70

Unavailable

3

CARBURETOR ASSY, MR | MODEL W E33

13203-34E90

Unavailable

3

CARBURETOR ASSY, MR | MODEL X/Y

13203-34EC0

Unavailable

3

CARBURETOR ASSY, MR | MODEL X/Y E33

13203-34EE0

Unavailable

4

CARBURETOR ASSY, RH | MODEL W

13204-34E70

Unavailable

4

CARBURETOR ASSY, RH | MODEL W E33

13204-34E90

Unavailable

4

CARBURETOR ASSY, RH | MODEL X/Y

13204-34EC0

Unavailable

4

CARBURETOR ASSY, RH | MODEL X/Y E33; Includes Item(s) 5 - 14

13204-34EE0

Unavailable

5

SPRING

13573-34E00

Unavailable

6

GUIDE

13418-33E00

$5.68

7

O RING

09280-05004

$2.11

8

SPRING

13481-33E00

$3.70

9

WASHER

13382-44030

$3.71

10

E RING

13394-17E60

$1.80

11

RING | MODEL W/X This part replaces 13387-33E00.

13387-44030

$5.83

11

RING | MODEL Y

13387-44030

$5.83

11A

WASHER | MODEL X/Y E33

13382-19E00

$3.56

12

NEEDLE, JET (5DHZ32-1) | MODEL W E3,E28

13383-34E70

Unavailable

12

NEEDLE, JET (5DH20-53-1) | MODEL X/Y E3,E28

13383-34E10

Unavailable

12

NEEDLE, JET (5DH20-53-1) | E33

13383-34E10

Unavailable

13

.DIAPHRAGM This part replaces 13507-17C01.

13507-17C02

$29.60

14

VALVE, PISTON

13501-34E00

$63.76

14A

O RING | Includes Item(s) 15 - 33

13295-33010

$4.48

15

PLUNGER | MODEL W

13411-05300

$24.17

15

PLUNGER | MODEL X/Y E3/E28

13411-34EC0

Unavailable

15

PLUNGER | MODEL X/Y E33 This part replaces 13411-34EE0.

13411-34EC0

Unavailable

16

SPRING

13417-26D00

$6.08

17

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

18

.HOLDER, GUIDE

13418-44080

$10.00

19

.CAP, STARTER VALVE

13682-31210

$4.37

20

VALVE ASSY,NEED This part replaces 13370-33E80.

13370-33E81

$55.10

21

SCREW

13602-05A10

$3.56

22

PIN

13254-92910

$2.80

23

FLOAT ASSY

13250-33E00

$35.41

24

HOLDER, JET

13385-33E00

$22.74

25

JET, MAIN (135) | LH,RH MODEL W

09491-27008

Unavailable

25

JET,POWER(132.5 | ML,MR MODEL W This part replaces 09491-26013.

09491-26019

$14.76

25

JET,POWER(132.5 | LH,RH MODEL X/Y This part replaces 09491-26013.

09491-26019

$14.76

25

JET, MAIN (130) | ML,MR MODEL X/Y

09491-26016

$17.02

26

JET, PILOT (12.5)

09492-12008

$14.26

27

ADJUSTER (4,0) | LH,RH

13279-33E00

$12.48

27

ADJUSTER (3,1/2) | ML,MR

13279-33E00

$12.48

28

SPRING,THROTTLE SCREW

13268-48700

$4.34

29

WASHER

13291-29900

$1.98

30

O-RING This part replaces 13295-29900.

13295-29901

$4.34

30A

PLUG

13281-05A00

$4.60

31

SCREW

02112-05127

$1.97

32

FUNNEL | MODEL W

13667-34E60

Unavailable

32A

FUNNEL | MODEL X/Y

13667-34E00

Unavailable

32B

SCREW | MODEL X/Y

02112-04107

$1.55

33

SCREW | MODEL W

13602-18E20

Unavailable

34

RING | MODEL W; Includes Item(s) 35 - 40

13663-34E60

Unavailable

35

BRACKET

13454-34E60

Unavailable

36

SCREW

02112-04107

$1.55

37

COVER

13502-34E00

Unavailable

38

SCREW

13247-33E00

$2.92

39

JET, PILOT AIR (140)

09491-28011

$18.02

39

JET, PILOT AIR (135) | E33

09491-27008

Unavailable

40

BODY, FLOAT LH/ML

13245-34E00

Unavailable

40

BODY, FLOAT LH/ML | E33

13245-34E40

Unavailable

40

BODY, FLOAT MR/RH

13245-34E10

Unavailable

40

BODY, FLOAT MR/RH | E33

13245-34E30

Unavailable

41

O RING

13258-33E00

$10.23
