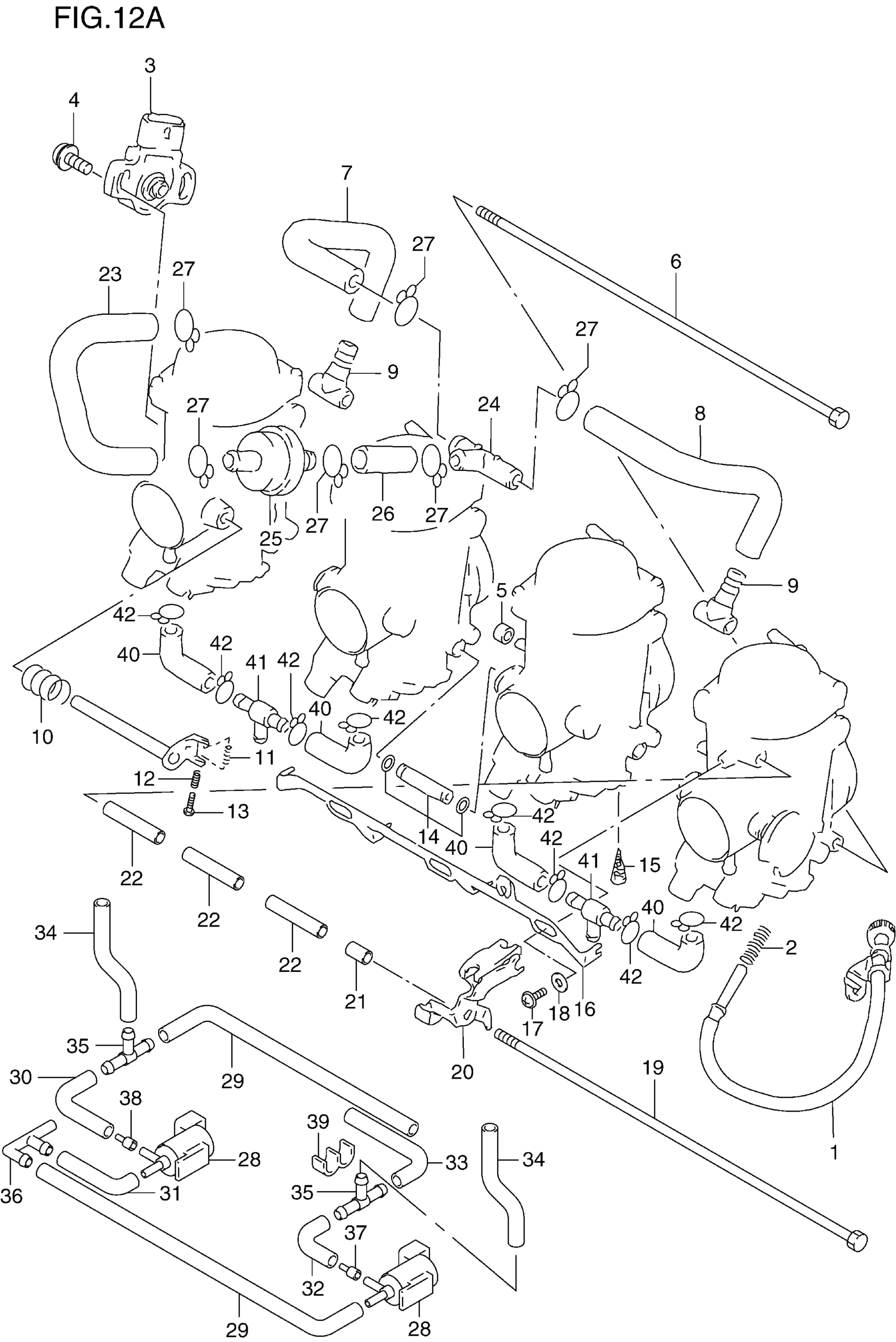

Suzuki GSX-R600 (2000) CARBURETOR FITTINGS (MODEL W/X/Y) Diagram

#

Description
Price

1

ADJUSTER

13267-34E00

Unavailable

2

SPRING

13271-33C00

$6.03

3

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$87.14

4

SCREW, SENSOR | MODEL W/X This part replaces 13602-55A00.

13605-20C00

$3.84

4

SCREW | MODEL Y

13605-20C00

$3.84

5

PIPE

13685-34E20

Unavailable

6

BOLT

13612-34E00

Unavailable

7

HOSE This part replaces 13683-33E10.

13683-33E11

Unavailable

8

HOSE This part replaces 13683-33E00.

13683-33E01

Unavailable

9

HOSE, 3 WAY

13683-34C00

$9.03

10

SPRING

13573-06C10

$7.77

11

SPRING This part replaces 13268-96110.

13268-96111

$4.35

12

SPRING

13271-44B00

$3.89

13

SCREW

13267-44B00

$4.10

14

PIPE

13685-31310

$20.18

15

FILTER

13236-26D00

Unavailable

16

LEVER, STARTER

13413-33E00

Unavailable

17

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

18

PACKING

13557-33E00

$3.47

19

BOLT

13612-33E00

$20.32

20

BRACKET

13565-34E00

Unavailable

21

PIPE

13685-34E10

Unavailable

22

PIPE

13685-34E00

$8.29

23

HOSE, AIR VENT NO.1

13684-33E00

Unavailable

24

3 WAY

13855-18A03

$5.50

25

FILTER

15410-33E00

Unavailable

26

HOSE | L:600(r)30 This part replaces 09352-11153-600.

09352-11154-600

$13.05

27

CLIP

09401-14401

$2.53

28

SOLENOID ASSY

13161-16720

Unavailable

29

.HOSE (3X7X600) | L:600(r)275 This part replaces 09355-30705-600.

09355-30001-600

$8.56

30

.HOSE (3X7X600) | L:600(r)105 This part replaces 09355-30705-600.

09355-30001-600

$8.56

31

.HOSE (3X7X600) | L:600(r)135 This part replaces 09355-30705-600.

09355-30001-600

$8.56

32

HOSE (L:425) | MODEL W/X This part replaces 13683-04F60.

13683-10F61

$17.10

32

HOSE (L:425) | MODEL Y This part replaces 13683-10F60.

13683-10F61

$17.10

33

HOSE (L:425) | MODEL W/X This part replaces 13683-04F70.

13683-10F61

$17.10

33

HOSE (L:425) | MODEL Y This part replaces 13683-10F60.

13683-10F61

$17.10

34

HOSE (L:425) | MODEL W/X This part replaces 13683-33E50.

13683-10F61

$17.10

34

HOSE (L:425) | MODEL Y This part replaces 13683-10F60.

13683-10F61

$17.10

35

NIPPLE

09367-04007

$4.00

36

NIPPLE

09367-04009

$4.73

37

JET, AIR | MODEL W

09493-22012

Unavailable

37

JET, AIR | MODEL X/Y

09493-20020

$16.87

38

JET, AIR

09493-20020

$16.87

39

CLIP

09408-00033

$2.83

40

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$15.96

41

.NIPPLE | E33

13685-48B00

$12.15

42

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.49
