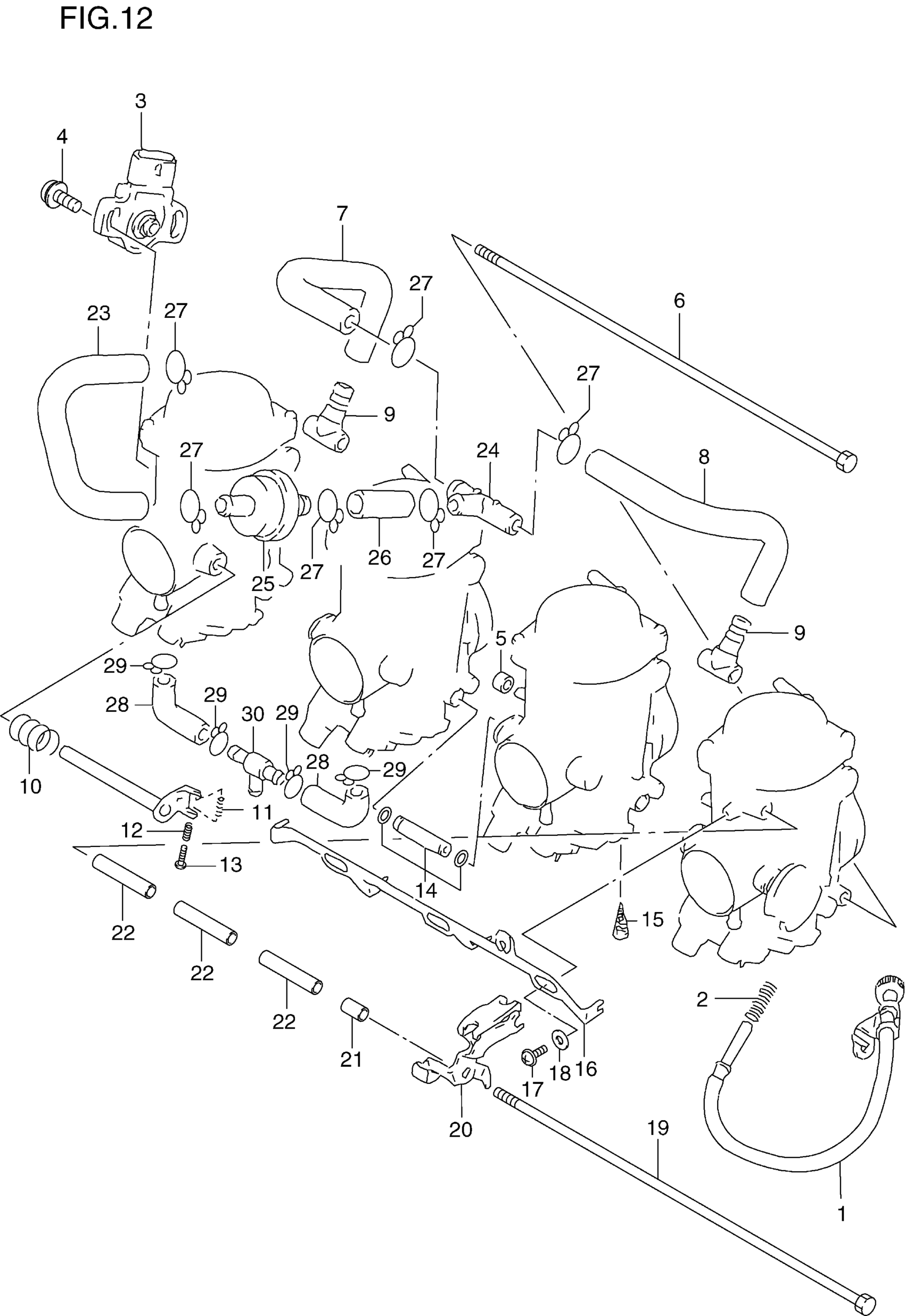

Suzuki GSX-R600 (2000) CARBURETOR FITTINGS (MODEL V) Diagram

#

Description
Price

1

ADJUSTER

13267-34E00

Unavailable

2

SPRING

13271-33C00

$7.98

3

SENSOR ASSY,THR This part replaces 13550-13D60.

13550-13D61

$81.29

4

SCREW, SENSOR This part replaces 13602-55A00.

13605-20C00

$3.62

5

PIPE

13685-34E20

Unavailable

6

BOLT

13612-33E00

Unavailable

7

HOSE This part replaces 13683-33E10.

13683-33E11

Unavailable

8

HOSE This part replaces 13683-33E00.

13683-33E01

Unavailable

9

HOSE, 3 WAY

13683-34C00

$8.27

10

SPRING

13573-06C10

$8.77

11

SPRING This part replaces 13268-96110.

13268-96111

$3.79

12

SPRING

13271-44B00

$3.66

13

SCREW

13267-44B00

$4.62

14

PIPE

13685-31310

$22.78

15

FILTER

13236-26D00

Unavailable

16

LEVER, STARTER

13413-33E00

Unavailable

17

SCREW This part replaces 02142-04083.

02142-0408B

$1.71

18

PACKING

13557-33E00

$3.92

19

BOLT

13612-33E00

Unavailable

20

BRACKET

13565-34E00

Unavailable

21

PIPE

13685-34E10

Unavailable

22

PIPE

13685-34E00

$11.00

23

HOSE, AIR VENT NO.1

13684-33E00

Unavailable

24

3 WAY

13855-18A03

$7.30

25

FILTER

15410-33E00

Unavailable

26

HOSE | L:600(r)30 This part replaces 09352-11153-600.

09352-11154-600

$11.77

27

CLIP

09401-14401

$2.77

28

HOSE | E33 This part replaces 13684-48B10.

13684-48B11

$14.61

29

CLIP | E33 This part replaces 09401-10410.

09401-10401

$1.45

30

.NIPPLE | E33

13685-48B00

$11.44
