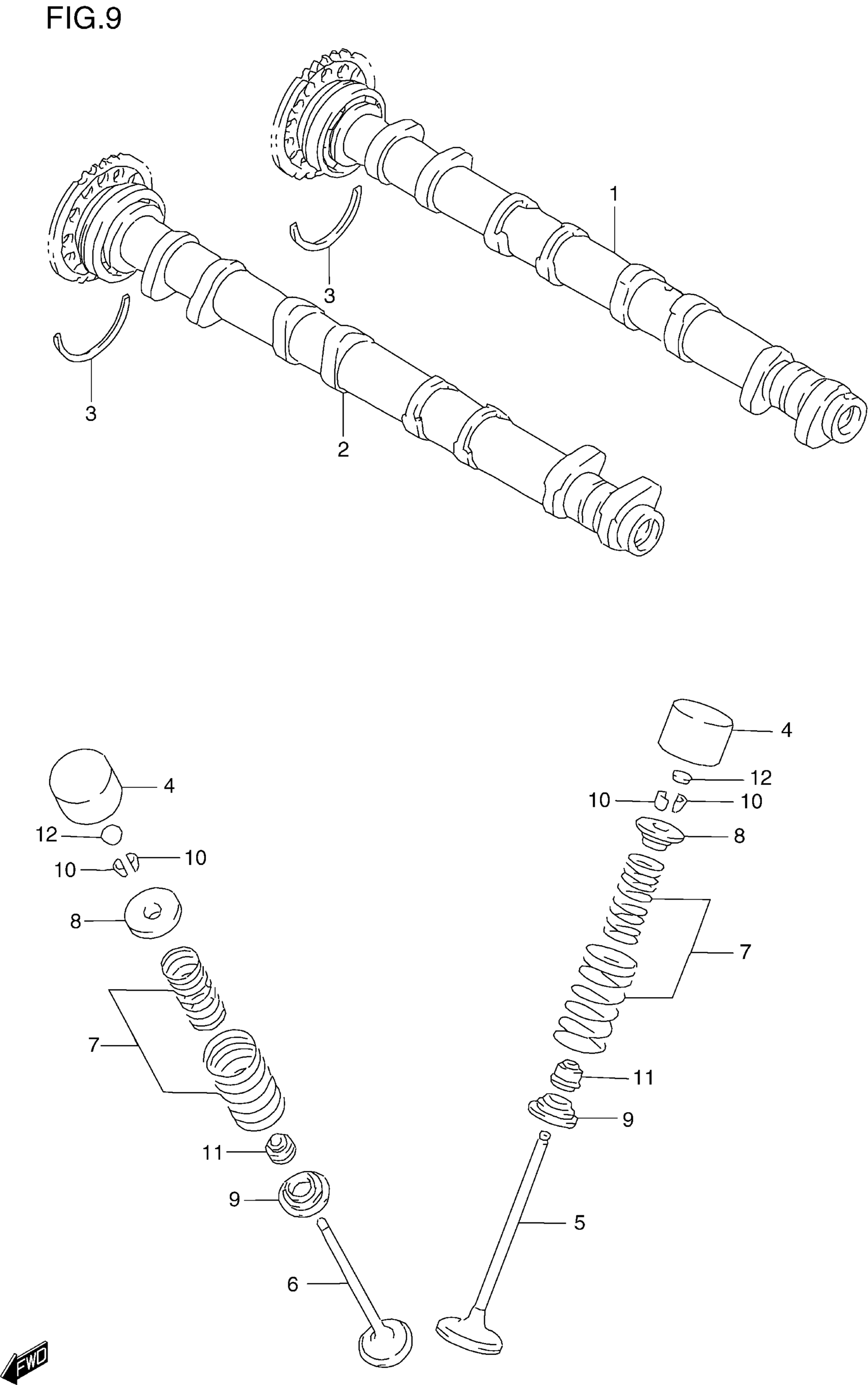

Suzuki GSX-R600 (2000) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | MODEL V

12710-34E00

Unavailable

1

CAM SHAFT, INTAKE | MOODEL V E33

12710-34E10

Unavailable

1

CAM SHAFT, INTAKE | MODEL W/X/Y

12710-34E20

Unavailable

1

CAM SHAFT, INTAKE | MODEL W/X/Y E33

12710-34E30

Unavailable

2

CAM SHAFT, EXHAUST | MODEL V

12720-34E00

Unavailable

2

CAM SHAFT, EXHAUST | MODEL W/X/Y

12720-34E10

Unavailable

3

C RING

09390-47002

$3.37

4

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

5

VALVE, INTAKE | MODEL V This part replaces 12911-34E00.

12911-34E10

Unavailable

5

VALVE, INTAKE | MODEL W/X/Y

12911-34E10

Unavailable

6

VALVE, EXHAUST

12912-34E00

Unavailable

7

SPRING SET, VALVE | MODEL V/W

12920-33E10

$16.65

7

SPRING SET, VALVE | MODEL X/Y

12920-33E20

Unavailable

8

RETAINER, VALVE SPRING | MODEL V/W This part replaces 12931-33E00.

12931-33E10

$19.23

8

RETAINER, VALVE SPRING | MODEL X/Y

12931-33E10

$19.23

9

SEAT,VALVE SPRING

12933-39E00

$8.60

10

COTTER, VALVE

12932-17E50

$2.35

11

OIL SEAL (4.5X10X8)

09289-04002

$6.49

12

SHIM, TAPPET (T:1.20)

12892-05C00-120

$11.60

12

SHIM, TAPPET (T:1.25)

12892-05C00-125

$11.83

12

SHIM, TAPPET (T:1.30)

12892-05C00-130

$10.06

12

SHIM, TAPPET (T:1.35)

12892-05C00-135

$10.06

12

SHIM, TAPPET (T:1.40)

12892-05C00-140

$11.83

12

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.87

12

SHIM, TAPPET (T:1.50)

12892-05C00-150

$11.83

12

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.69

12

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.69

12

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.69

12

SHIM, TAPPET (T:1.70)

12892-05C00-170

$11.60

12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.87

12

SHIM, TAPPET (T:1.80)

12892-05C00-180

$11.38

12

SHIM, TAPPET (T:1.85)

12892-05C00-185

$11.83

12

SHIM, TAPPET (T:1.90)

12892-05C00-190

$11.83

12

SHIM, TAPPET (T:1.95)

12892-05C00-195

$11.83

12

SHIM, TAPPET (T:2.00)

12892-05C00-200

$11.60

12

SHIM, TAPPET (T:2.05)

12892-05C00-205

$11.83

12

SHIM, TAPPET (T:2.10)

12892-05C00-210

$11.83

12

SHIM, TAPPET (T:2.15)

12892-05C00-215

$11.83

12

SHIM, TAPPET (T:2.20)

12892-05C00-220

$11.83

13

SHIM SET, TAPPET | OPT NOT SHOWN This part replaces 12800-05820.

12800-05830

$1,211.58
