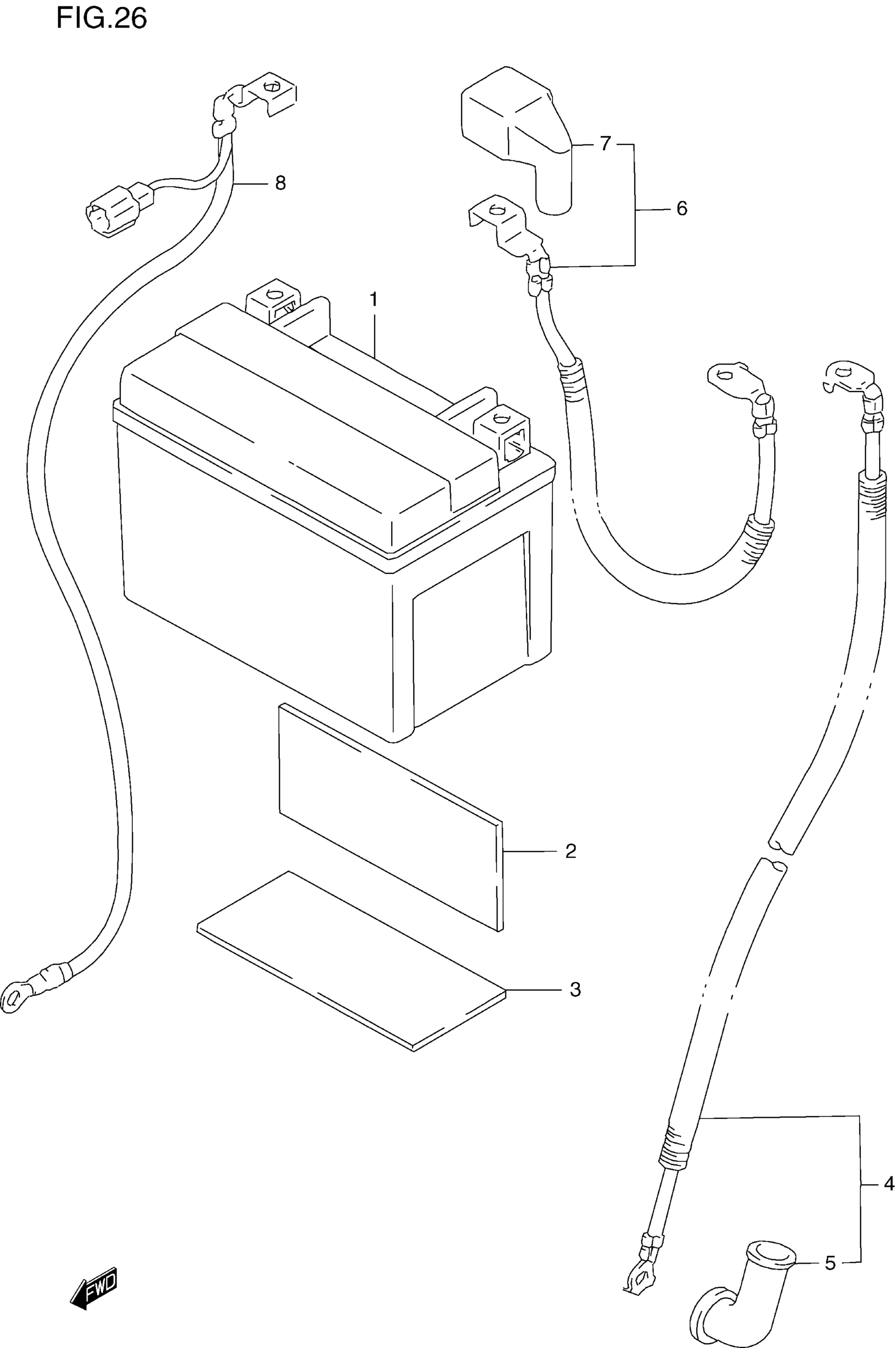

Suzuki GSX-R600 (2000) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) | MODEL V,FTX9-BS This part replaces 33610-33E10.

33610-33E20

Unavailable

1

BATTERY ASSY (12V,8AH) | MODEL W/X/Y,FTX9-BS

33610-33E20

Unavailable

1

BATTERY ASSY (12V,8AH) | E28,FTX9-BS

33610-33E20

Unavailable

2

CUSHION (170X95X3.0) | CUT AS REQUIRED PROFILE (130X20),(90X20)

33651-37000

$4.48

3

CUSHION (45X90X18)

33652-11D00

Unavailable

4

WIRE, STARTER MOTOR | Includes Item(s) 5

33810-34E00

Unavailable

5

CAP, STARTER MOTOR

31861-48B10

$6.55

6

WIRE, BATTERY PLUS LEAD | Includes Item(s) 7

33820-26E00

Unavailable

7

CAP, BATTERY PLUS

33624-43500

$5.50

8

WIRE, BATTERY MINUS

33860-46E00

Unavailable
