2000 Suzuki GSX-R600 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2000 Suzuki GSX-R600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

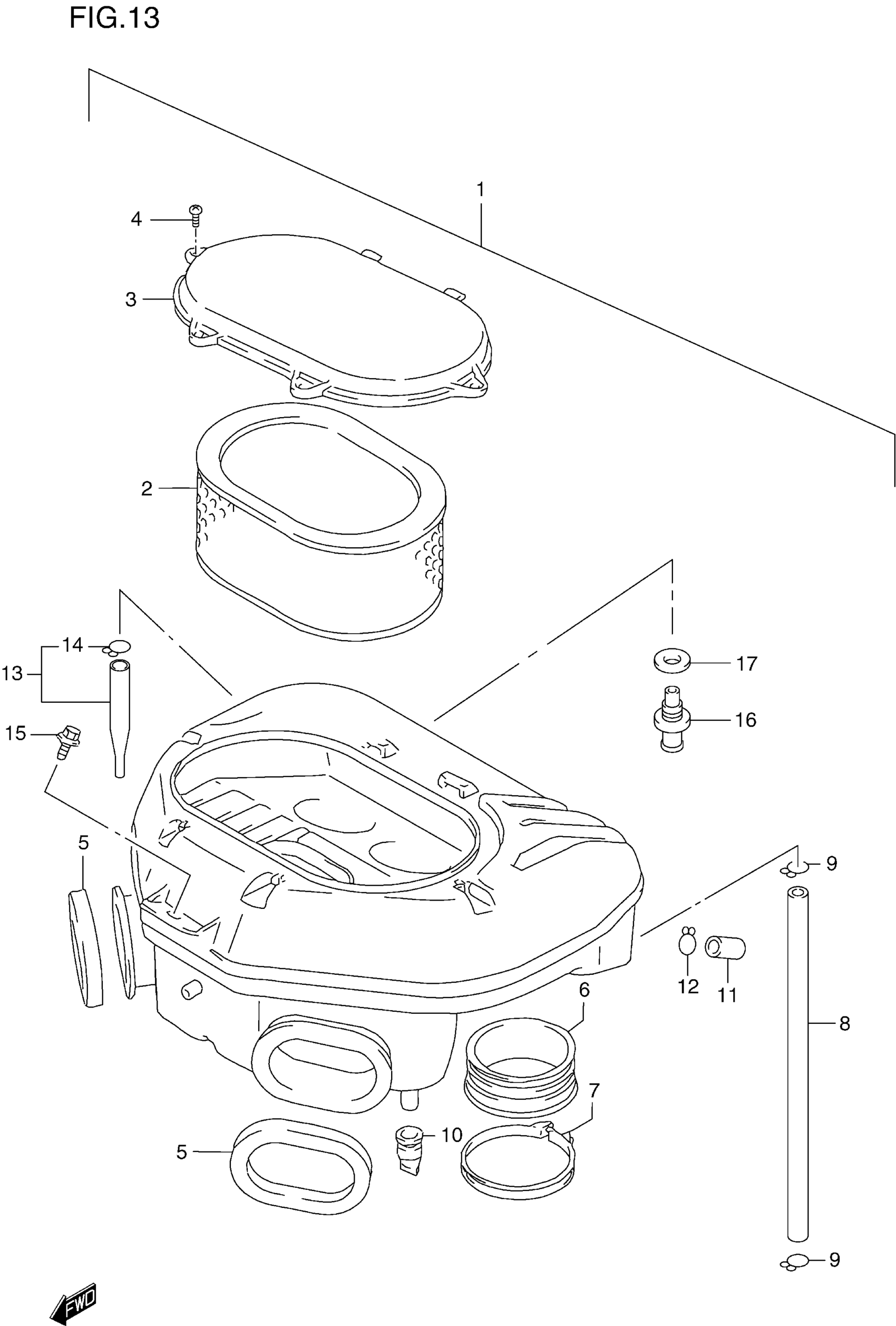

2000 Suzuki GSX-R600 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL V

13700-34E00

1
Out of stock

1

CLEANER ASSY, AIR | MODEL W/X/Y E3,E28

13700-34E50

1
Out of stock

1

CLEANER ASSY, AIR | MODEL W/X/Y E33; Includes Item(s) 2 - 14

13700-34E60

1
Out of stock

2

FILTER | MODEL V This part replaces 13780-33E00.

13780-33E01

1
Out of stock

2

FILTER | MDOEL W/X/Y

13780-33E01

1
Out of stock

3

CAP

13740-33E00

1
Out of stock

4

.SCREW This part replaces 02142-05123.

02142-0512A

4
Out of stock

5

CUSHION, DUCT | MODEL V This part replaces 13736-33E00.

13736-33E01

2
Out of stock

5

CUSHION, DUCT | MODEL W/X/Y

13736-33E01

2
Out of stock

6

TUBE, OUTLET | MODEL V

13881-34E00

4
Out of stock

6

TUBE, OUTLET | MODEL W/X/Y

13881-34E50

4
Out of stock

7

CLAMP

09402-66208

4
Out of stock

8

TUBE,BREATHER This part replaces 13850-33E00.

13850-33E01

1
Out of stock

9

CLIP

09401-14301

2
Out of stock

10

CAP,DRAIN This part replaces 13872-00110.

13872-00111

1
Out of stock

11

.PLUG

13859-41B10

1
Out of stock

12

CLIP

09401-14301

1
Out of stock

13

TUBE,CONTROL AI | MODEL W/X/Y This part replaces 13855-34E50.

13855-34E51

1
Out of stock

14

CLIP | MODEL W/X/Y

09401-14301

1
Out of stock

15

BOLT This part replaces 01580-06163.

01580-0616A

1
Out of stock

16

UNION, 2ND AIR | MODEL W/X/Y E33

13941-34E60

1
Out of stock

17

GASKET, 2ND AIR UNION | MODEL W/X/Y E33

09168-12016

1
Out of stock
← 2ND AIR Canister →
