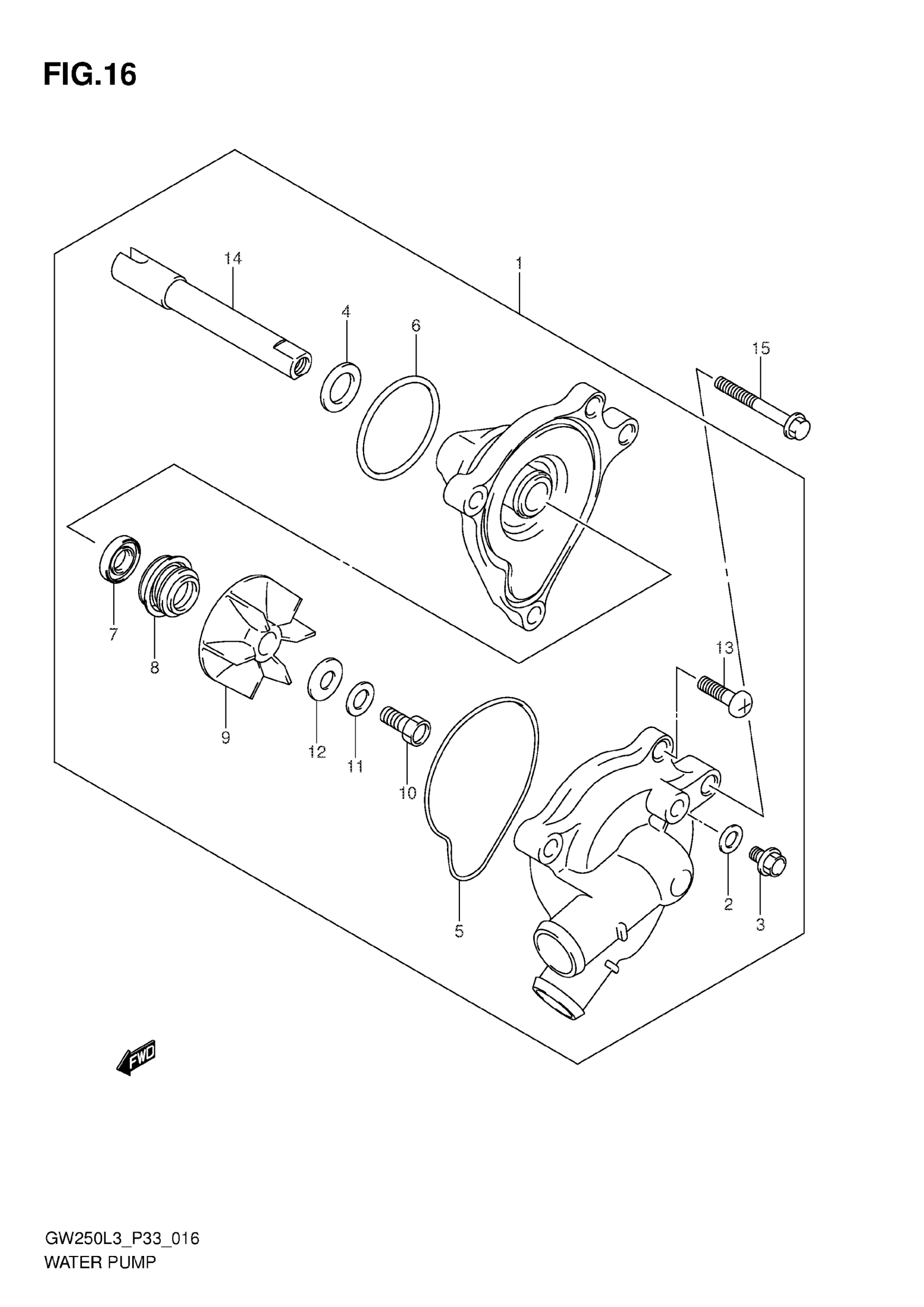

Suzuki GSX-R250L3 (2013) WATER PUMP Diagram

#

Description

Price

1

PUMP ASSY, WATER

17400-48H00-000

Unavailable

2

GASKET

17413-28C10-000

Unavailable

3

BOLT, BLEEDER

17415-43D00-000

Unavailable

4

.WASHER

17432-07G00-000

Unavailable

5

O RING, WATER PUMP CASE

17435-12C00-000

Unavailable

6

.O RING

17435-33400-000

Unavailable

7

OIL SEAL

17461-01H00-000

Unavailable

8

SEAL, WATER PUMP SHAFT

17470-02F10-000

Unavailable

9

IMPELLER, WATER PUMP

17491-12C00-000

Unavailable

10

.BOLT (6X13)

09100-06099-000

Unavailable

11

.WASHER

09164-06006-000

Unavailable

12

.GASKET (6X15X2.2)

09168-06025-000

Unavailable

13

.SCREW

02112-0616A-000

Unavailable

14

SHAFT

17511-48H00-000

Unavailable

15

BOLT

01547-0635A-000

Unavailable
