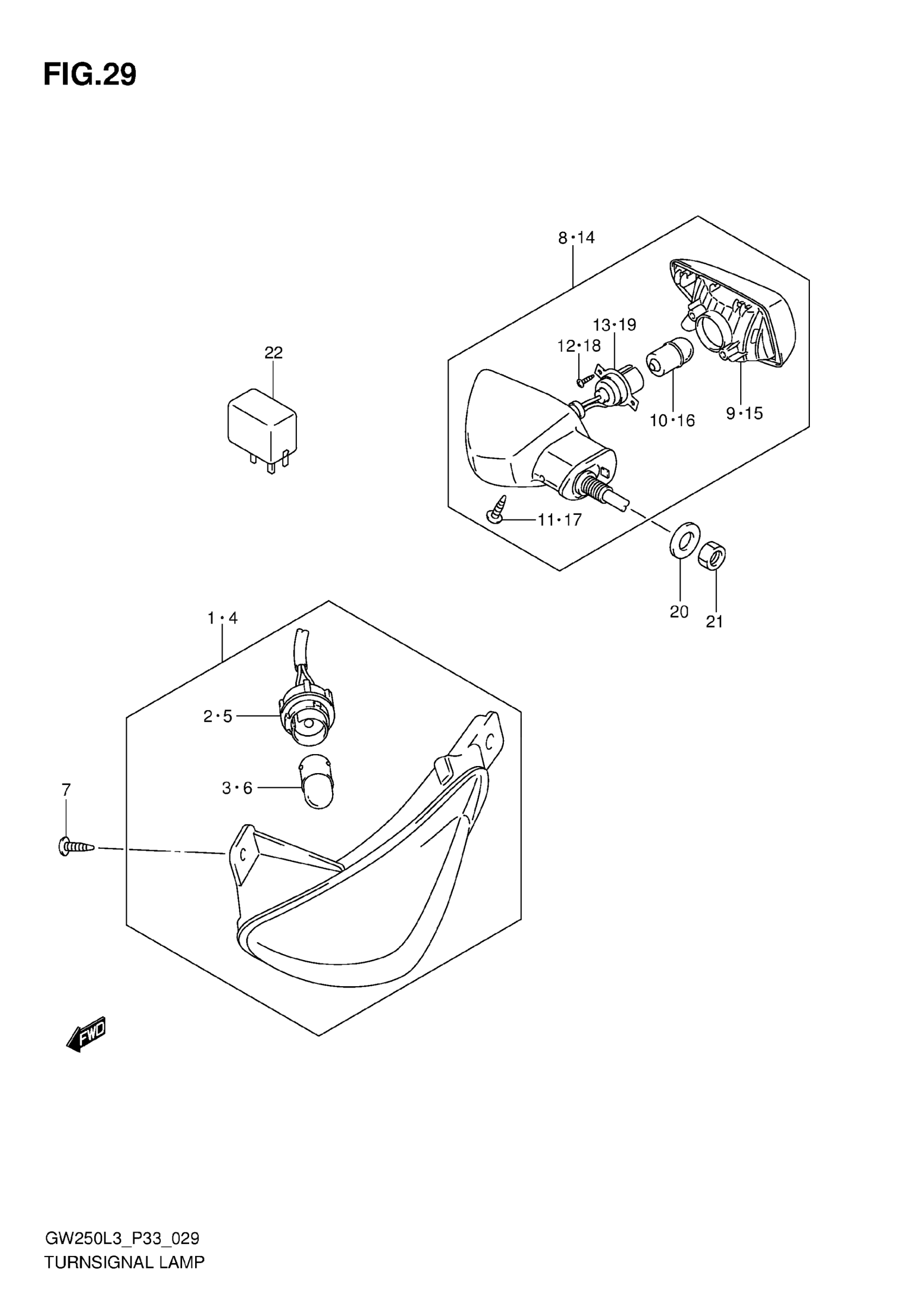

Suzuki GSX-R250L3 (2013) TURNSIGNAL LAMP Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-48H30-000

Unavailable

2

CORD

35618-48H00-000

Unavailable

3

BULB (12V,10W)

09471-12226-000

Unavailable

4

LAMP ASSY, FRONT TURNSIGNAL LH

35602-48H30-000

Unavailable

5

CORD

35638-48H00-000

Unavailable

6

BULB (12V,10W)

09471-12226-000

Unavailable

7

SCREW

03541-0516A-000

Unavailable

8

LAMP ASSY, REAR TURNSIGNAL RH

35603-48H02-000

Unavailable

9

LAMP UNIT RH

35650-48H01-000

Unavailable

10

BULB (12V,10W)

09471-12226-000

Unavailable

11

SCREW

03241-0412B-000

Unavailable

12

SCREW

35623-48H00-000

Unavailable

13

CORD RH

35658-48H00-000

Unavailable

14

LAMP ASSY, REAR TURNSIGNAL LH

35604-48H02-000

Unavailable

15

LAMP UNIT LH

35670-48H01-000

Unavailable

16

BULB (12V,10W)

09471-12226-000

Unavailable

17

SCREW

03241-0412B-000

Unavailable

18

SCREW

35623-48H00-000

Unavailable

19

CORD LH

35678-48H00-000

Unavailable

20

WASHER, REAR TURNSIGNAL LAMP

35679-48H00-000

Unavailable

21

NUT

08310-0010A-000

Unavailable

22

RELAY ASSY, TURNSIGNAL LAMP

38610-26H02-000

Unavailable
