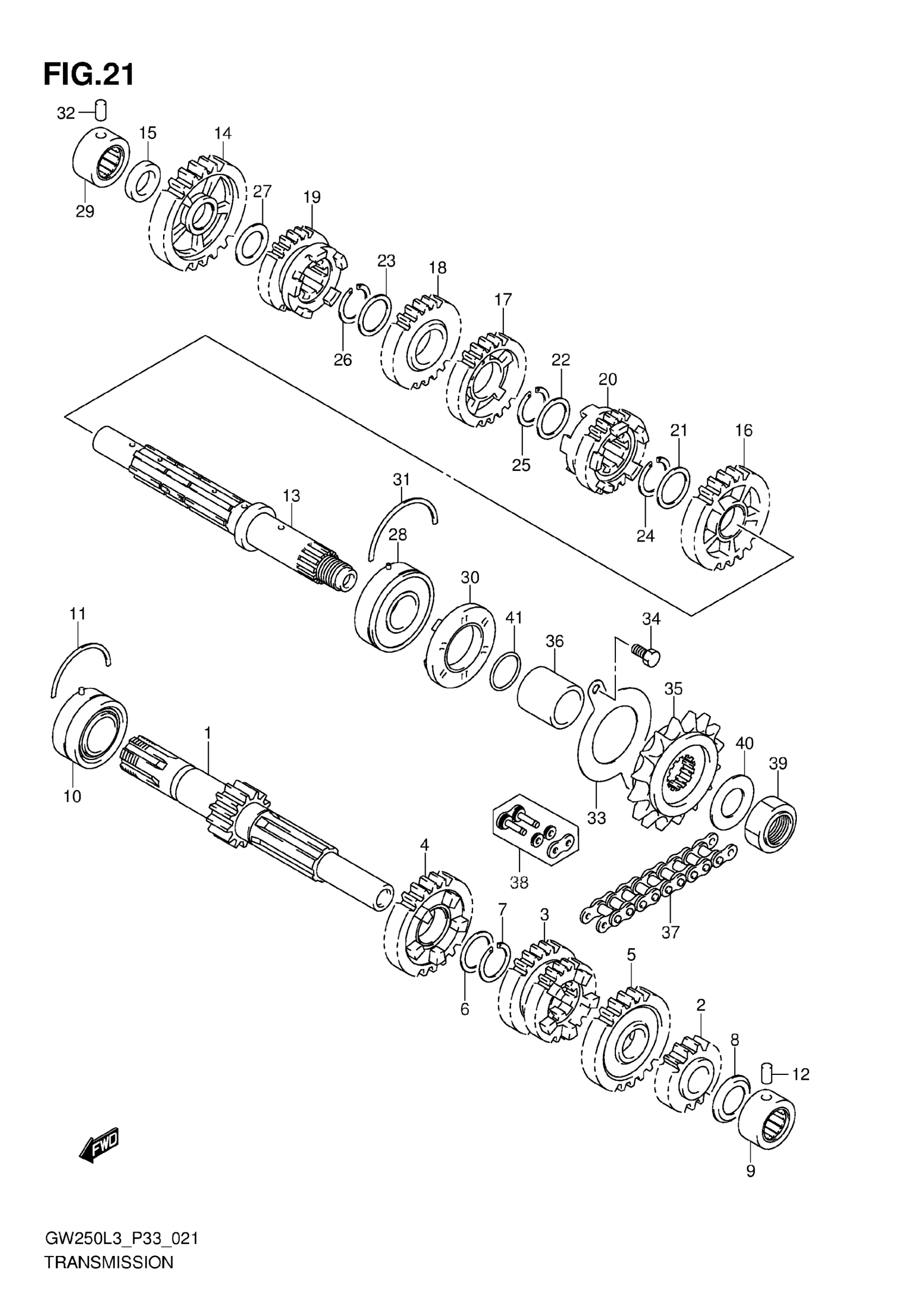

Suzuki GSX-R250L3 (2013) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:12)

24120-48H00-000

Unavailable

2

GEAR, 2ND DRIVE (NT:17)

24221-48H00-000

Unavailable

3

GEAR, 3RD & 4TH DRIVE (NT:22/23)

24231-48H00-000

Unavailable

4

GEAR, 5TH DRIVE (NT:22)

24251-48H00-000

Unavailable

5

GEAR, 6TH DRIVE (NT:26)

24260-48H00-000

Unavailable

6

WASHER (22X28X1)

09181-22017-000

Unavailable

7

CIRCLIP

09380-22016-000

Unavailable

8

SEAL, SHAFT LH BEARING

24271-48H00-000

Unavailable

9

BEARING (17X30X16) | LH

09263-17050-000

Unavailable

10

BEARING (22X47X20.6) | RH

09267-22001-000

Unavailable

11

C RING

09390-47008-000

Unavailable

12

PIN

04221-06129-000

Unavailable

13

SHAFT, DRIVE

24130-48H00-000

Unavailable

14

GEAR, 1ST DRIVEN (NT:29)

24310-48H00-000

Unavailable

15

SPACER, 1ST DRIVEN GEAR

24313-48H00-000

Unavailable

16

GEAR, 2ND DRIVEN (NT:26)

24320-48H00-000

Unavailable

17

GEAR, 3RD DRIVEN (NT:26)

24331-48H00-000

Unavailable

18

GEAR, 4TH DRIVEN (NT:24)

24341-48H00-000

Unavailable

19

GEAR, 5TH DRIVEN (NT:20)

24351-48H00-000

Unavailable

20

GEAR, 6TH DRIVEN (NT:21)

24361-48H00-000

Unavailable

21

WASHER (22X28X1)

09181-22017-000

Unavailable

22

WASHER (22X28X1)

09181-22017-000

Unavailable

23

WASHER (22X28X1)

09181-22017-000

Unavailable

24

CIRCLIP

09380-22016-000

Unavailable

25

CIRCLIP

09380-22016-000

Unavailable

26

CIRCLIP

09380-22016-000

Unavailable

27

WASHER

08211-17262-000

Unavailable

28

BEARING (22X56X16) | LH

09262-22039-000

Unavailable

29

BEARING (17X30X16) | RH

09263-17050-000

Unavailable

30

OIL SEAL (30X56X9.5)

09283-30L01-000

Unavailable

31

C RING

09390-56002-000

Unavailable

32

PIN

04221-06129-000

Unavailable

33

RETAINER, DRIVE SHAFT OIL SEAL

24741-48H00-000

Unavailable

34

BOLT

01500-0612A-000

Unavailable

35

SPROCKET, ENGINE (NT:14)

27510-48H10-000

Unavailable

36

SPACER, ENGINE SPROCKET

27531-48H00-000

Unavailable

37

CHAIN ASSY, DRIVE (DID 520VF)

27600-48H10-116

Unavailable

38

JOINT SET, CHAIN | OPT

27620-48H10-000

Unavailable

39

NUT

09140-18008-000

Unavailable

40

WASHER (22X36X1)

09181-22016-000

Unavailable

41

O RING (D:2.5,ID:21)

09280-21008-000

Unavailable
