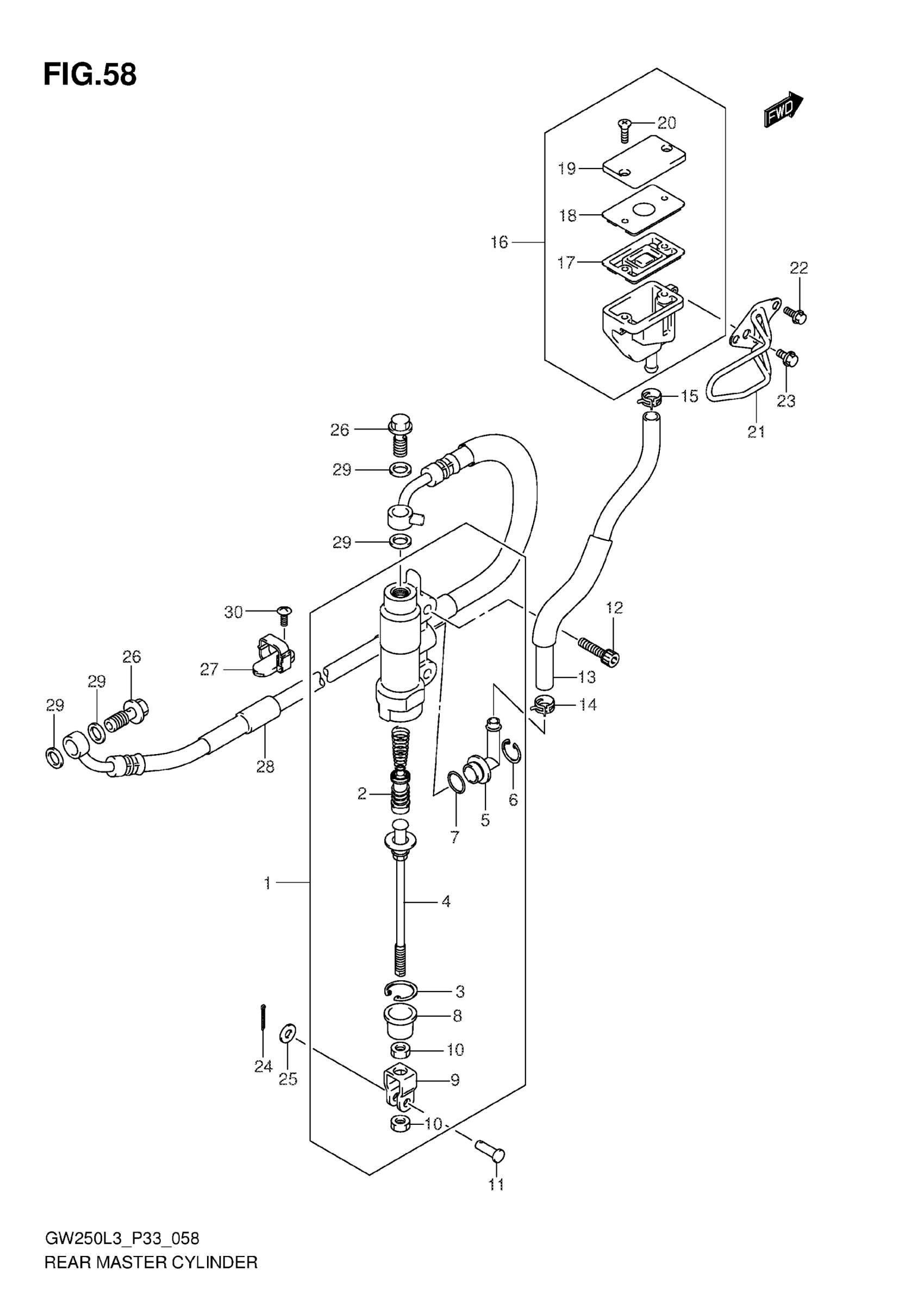

Suzuki GSX-R250L3 (2013) REAR MASTER CYLINDER Diagram

#

Description

Price

1

CYLINDER ASSY, REAR MASTER

69600-48H00-000

Unavailable

2

PISTON/CUP SET

69600-34810-000

Unavailable

3

CIRCLIP

69665-47H00-000

Unavailable

4

ROD, PUSH

69670-24A00-000

Unavailable

5

.CONNECTOR

69672-00B20-000

Unavailable

6

.CIRCLIP

69674-00B20-000

Unavailable

7

.O RING

69686-34200-000

Unavailable

8

..BOOT

69691-00A00-000

Unavailable

9

YOKE

69692-44H00-000

Unavailable

10

.NUT

69693-05A00-000

Unavailable

11

PIN, REAR MASTER CYLINDER

69697-48H00-000

Unavailable

12

BOLT, REAR MASTER CYLINDER

69698-48H00-000

Unavailable

13

HOSE, REAR RESERVOIR TANK

69730-48H00-X07

Unavailable

14

CLIP, HOSE LOWER

69735-48H00-000

Unavailable

15

CLIP, HOSE UPPER

69735-48H10-000

Unavailable

16

TANK ASSY, REAR RESERVOIR

69740-48H20-000

Unavailable

17

.DIAPHRAGM

59667-04700-000

Unavailable

18

.PLATE,DIAPHRAGM

59668-14F00-000

Unavailable

19

CAP

59669-48H20-000

Unavailable

20

SCREW

69689-48H00-000

Unavailable

21

GUARD, REAR RESERVOIR TANK

69760-48H10-000

Unavailable

22

BOLT

01547-0612A-000

Unavailable

23

BOLT

01547-0620A-000

Unavailable

24

PIN

04111-2015A-000

Unavailable

25

WASHER

08322-0106A-000

Unavailable

26

BOLT, BRAKE FLUID

59492-48H00-000

Unavailable

27

GUIDE, REAR BRAKE HOSE

61196-48H00-000

Unavailable

28

HOSE, REAR BRAKE

69480-48H00-000

Unavailable

29

WASHER, BRAKE FLUID

59464-48H00-000

Unavailable

30

.SCREW

02142-0616A-000

Unavailable
