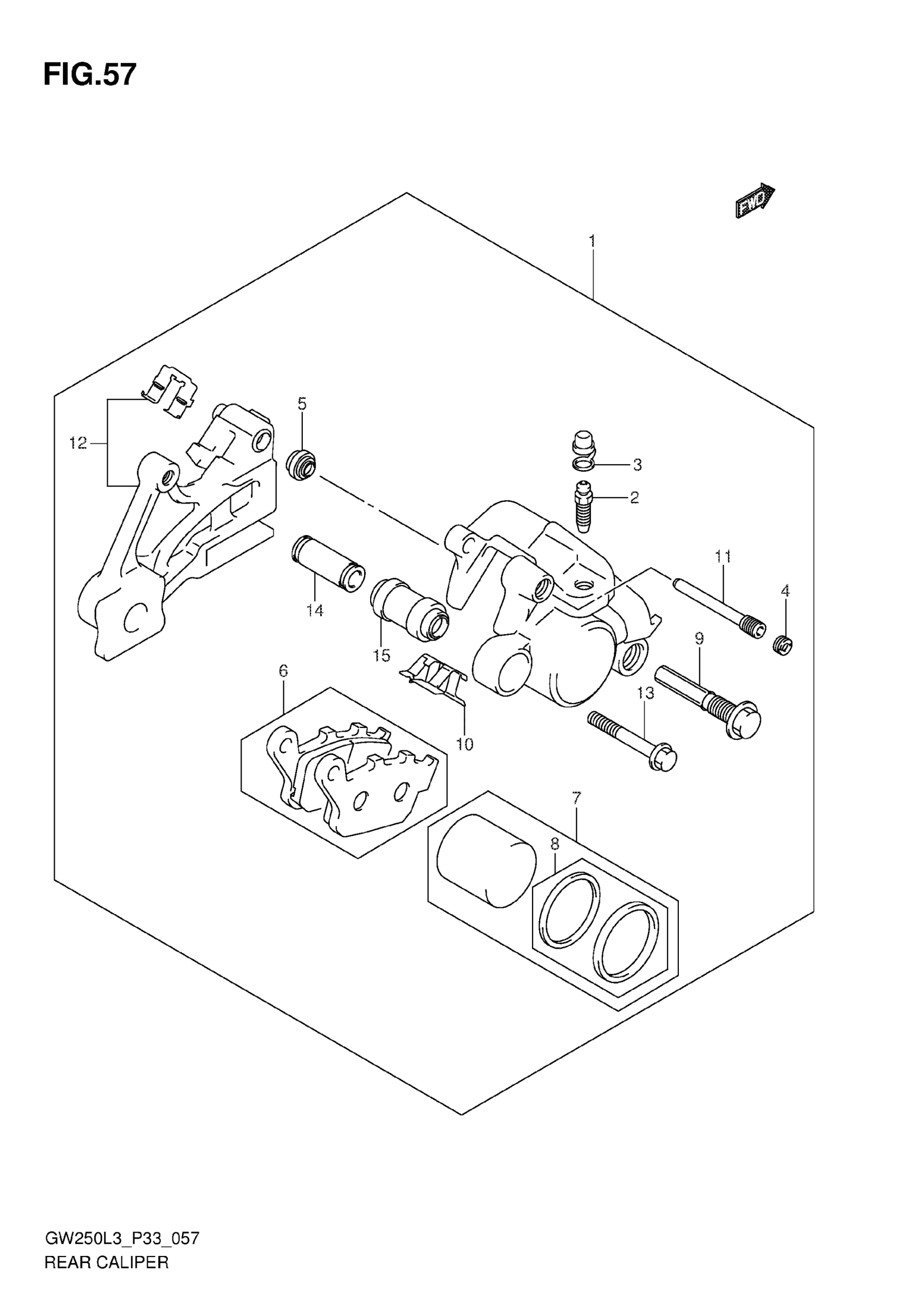

Suzuki GSX-R250L3 (2013) REAR CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, REAR

69100-48H00-000

Unavailable

2

.BLEEDER

59121-01A00-000

Unavailable

3

.CAP,BLEEDER

59122-01A00-000

Unavailable

4

.PLUG,PIN

59146-21E10-000

Unavailable

5

.BOOT

59303-14500-000

Unavailable

6

PAD SET

69100-48820-000

Unavailable

7

PISTON SET

69101-44860-000

Unavailable

8

..SEAL SET,PISTON

69100-04820-000

Unavailable

9

BOLT

69105-04F00-000

Unavailable

10

.SPRING,PAD

69115-06G00-000

Unavailable

11

.PIN,PAD

69141-40F00-000

Unavailable

12

BRACKET

69150-48H00-000

Unavailable

13

.BOLT

69182-04F00-000

Unavailable

14

.SLEEVE

69185-04F00-000

Unavailable

15

.BOOT,SLEEVE

69186-04F00-000

Unavailable
