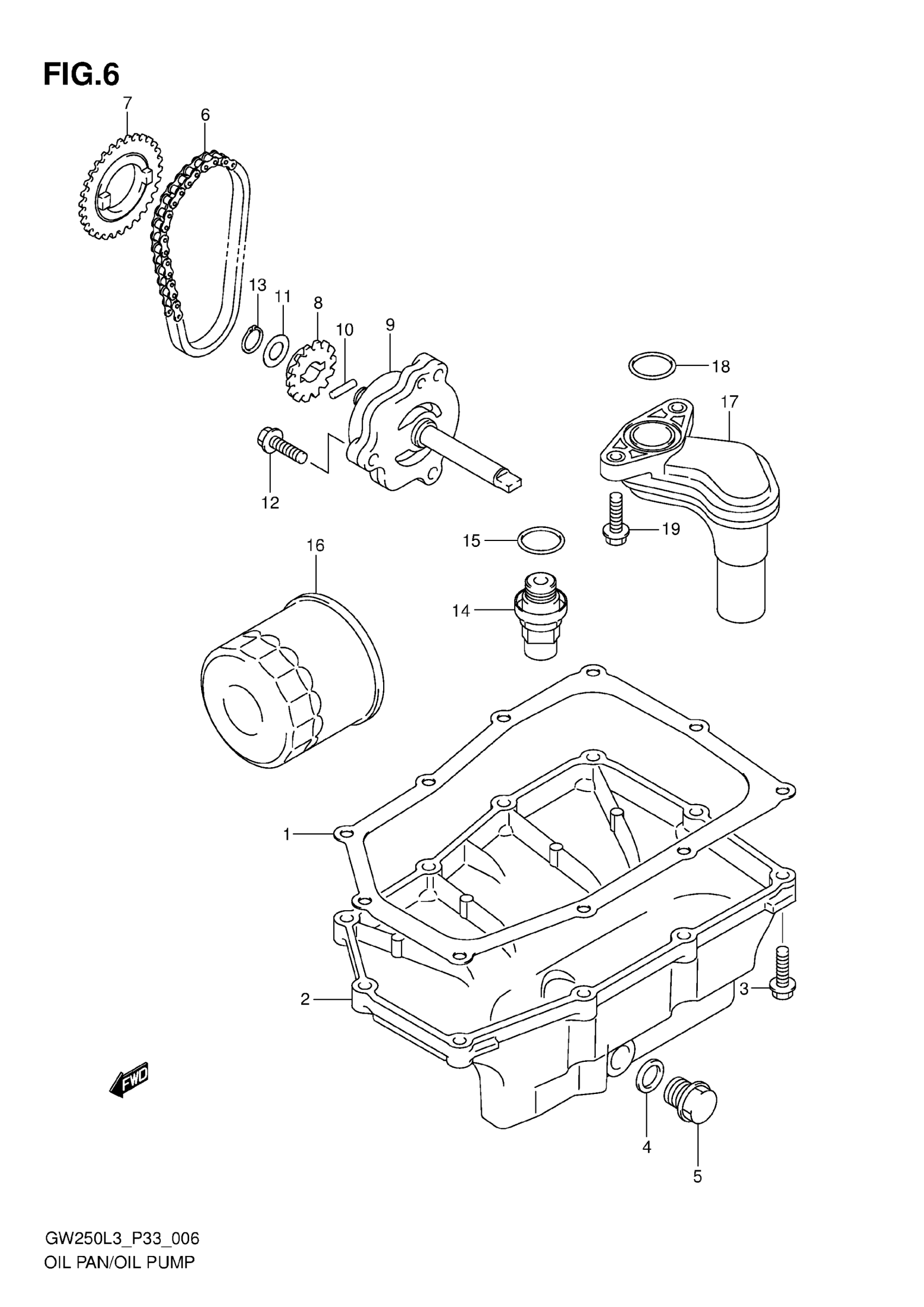

Suzuki GSX-R250L3 (2013) OIL PAN/OIL PUMP Diagram

#

Description

Price

1

GASKET, OIL PAN

11489-48H00-000

Unavailable

2

PAN, OIL

11511-48H00-000

Unavailable

3

BOLT

01547-0625A-000

Unavailable

4

GASKET (14X18X1.5)

09168-14016-000

Unavailable

5

PLUG | OIL DRAIN

09247-14050-000

Unavailable

6

CHAIN ASSY, OIL PUMP DRIVE

16310-48H00-000

Unavailable

7

SPROCKET, OIL PUMP DRIVE (NT:29)

16321-48H00-000

Unavailable

8

SPROCKET, OIL PUMP DRIVEN (NT:15)

16331-48H00-000

Unavailable

9

PUMP ASSY, OIL

16400-48H00-000

Unavailable

10

PIN, OIL PUMP

16421-48H00-000

Unavailable

11

WASHER, PUMP DRIVEN GEAR

16422-48H00-000

Unavailable

12

BOLT

01547-0625A-000

Unavailable

13

CIRCLIP

08331-31109-000

Unavailable

14

VALVE ASSY, OIL RELIEF

16440-48H00-000

Unavailable

15

GASKET (16X22X2)

09168-16010-000

Unavailable

16

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00-000

Unavailable

17

STRAINER, ENGINE OIL

16520-48H00-000

Unavailable

18

O RING (D:2.4,ID22.8)

09280-23L01-000

Unavailable

19

BOLT (6X25)

01550-0625A-000

Unavailable
